China Cheap Factory supply 1 Channel Digital Electrocardiograph Handheld mini ecg
Features:

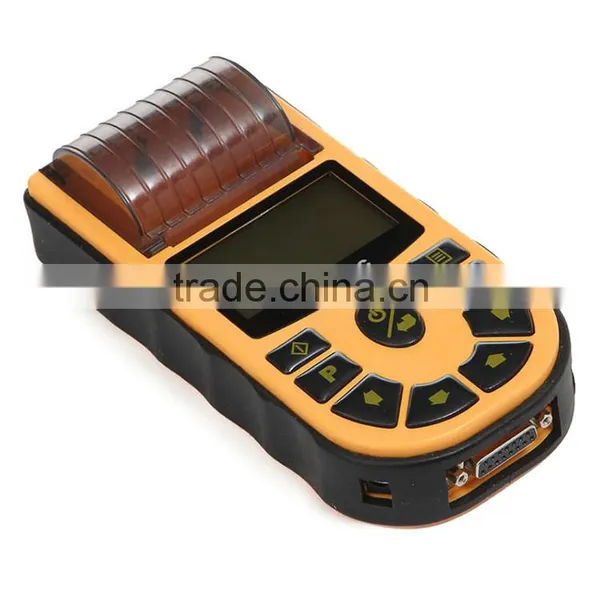

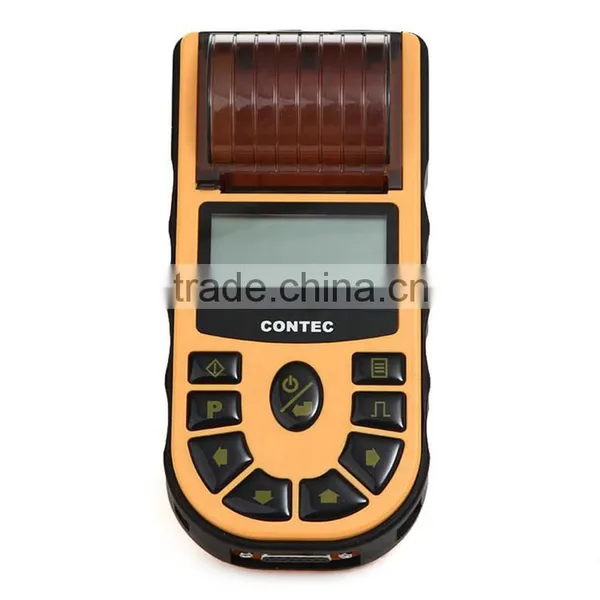

Hand-held single channel digital ECG machine with measurement report
Automatic and manual operation modes

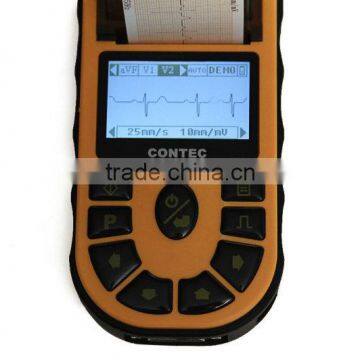

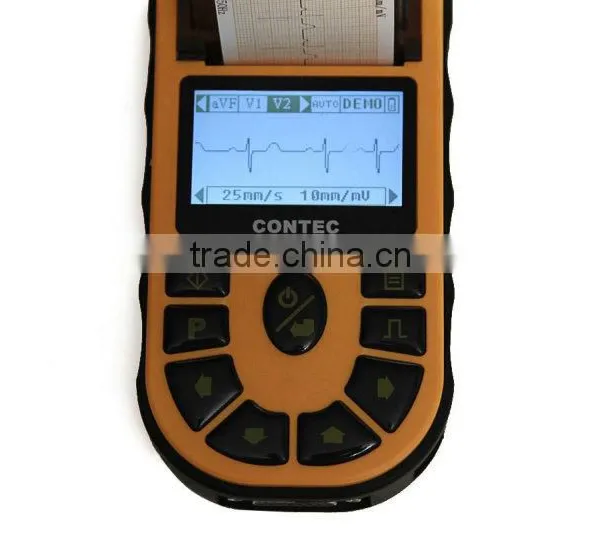

LCD display ECG wave

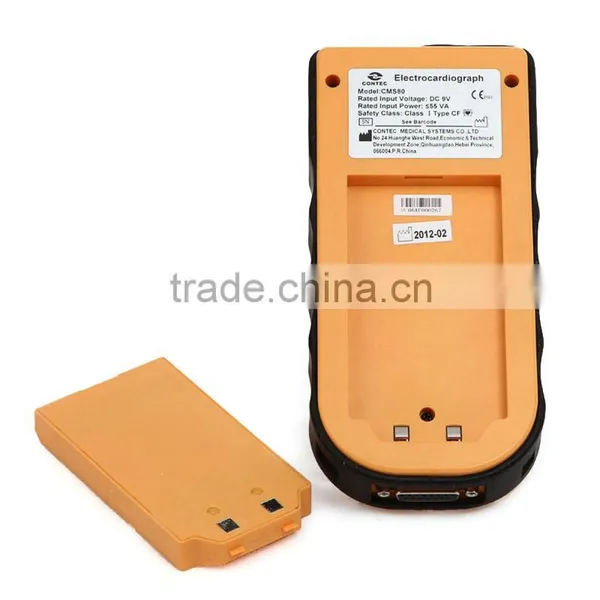

AC/DC power, built-in rechargeable Ni-H battery
Mini size, hand-held, portable, convenient for doctors use anywhere
Specification:
| Model number | EKG-80A |
| Size | 190x90x40mm |
| Safety Mode | IEC60601-1 class I, type CF |
| Lead selection | Automatic and Manual |
| Operation mode | Automatic and Manual |
| Input circuit | Floating |
| Calibrating voltage | 1mV ±5% |
| Input current | <100nA |
| CMRR | >103dB |
| A/D | 12bit |
| Frequency response | 0.05Hz-150Hz |
| Filter | AC: 50/60Hz EMG: 35-4Hz |
| Skin voltage tolerance | ±300mV |
| Sensitivity setting | 5, 10, 20mm/mV, conversion deviation≤5% |
| Noisy level | ≤15Vp-p |
| Display | LCD 160x96, visual size: 34x60 |
| Recording system | Thermal-array printing |
| Noise level | ≤15μVp-p |
| Power supply | AC: 220V+-10% DC: 7.4 Lithium battery |
| Weight | 800g |
Click the picture for detalied information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
