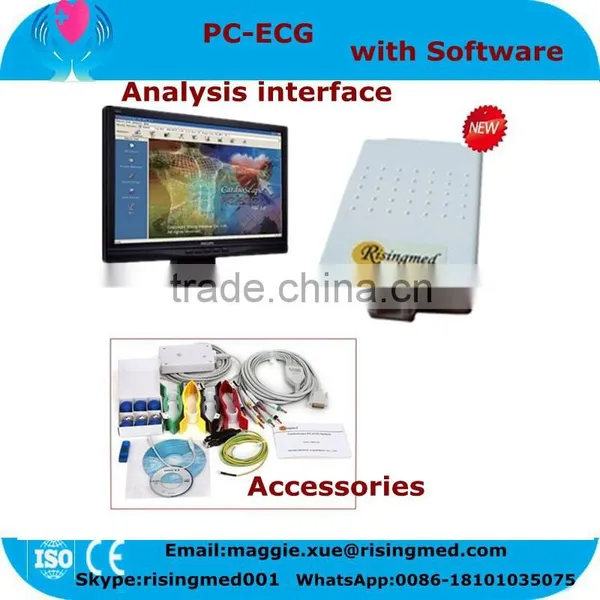

CardioScape PC-ECG
Function (8 functions):
- ECG: 12-lead resting PC-ECG with auto interpretation
- VCG: Vector-cardiograph with auto interpretation
- TVCG: Timed Vector-cardiograph
- FCG: Frequency ECG (unique technique to detect ischemia and CAD)
- HFECG: High Frequency ECG
- SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
- QTD: QT Dispersion with chroma map
- HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots
Hardware Features:
- High sampling rate of 1000Hz
- Digital filter system
- Applying anti-baseline-drift technology ensuring the stability of ECG baseline
- Wilson and Frank hookup system
- Meet the international standard of IEC60601-1
- Easy operation and perfect printout
- Diagnosis of coronary heart disease
- Perfect time domain, frequency domain and non-linear HRV analysis
- Perfect ECG database management system
Specification:
- Sample rate: 1000Hz, simultaneous 12 leads recording
- Resolution:12bit
- Power: 5.0V (DC)
- Patient Insulation: 4000V AC
- Defibrillation Protection: Built-in box
- Digital resolution: 2μV
- Frequency response: 0.05-250 Hz
- Common mode rejection: >90dB
- Input impedance: >10MΩ
- Time constant: ≥3.2 s
- Max electrode potential: ±300mV DC
- Dynamic range: ±10mV
- Isolate voltage: 4000V
- Current leak: <10μA

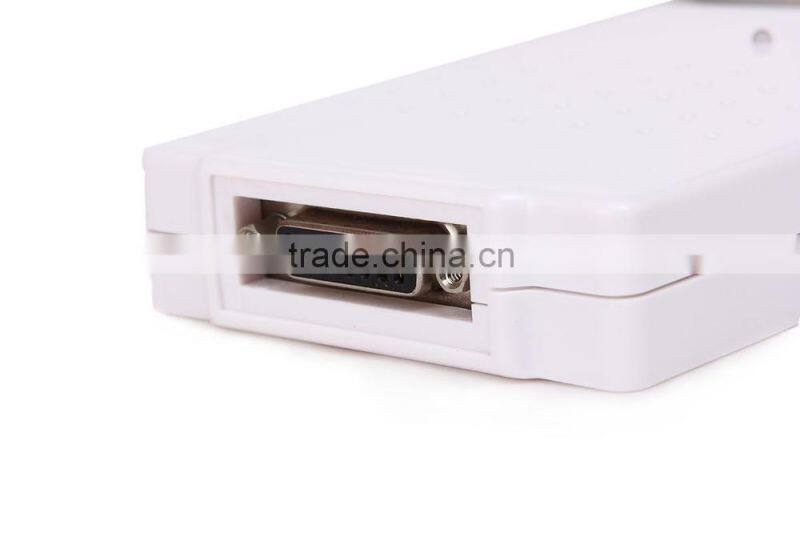

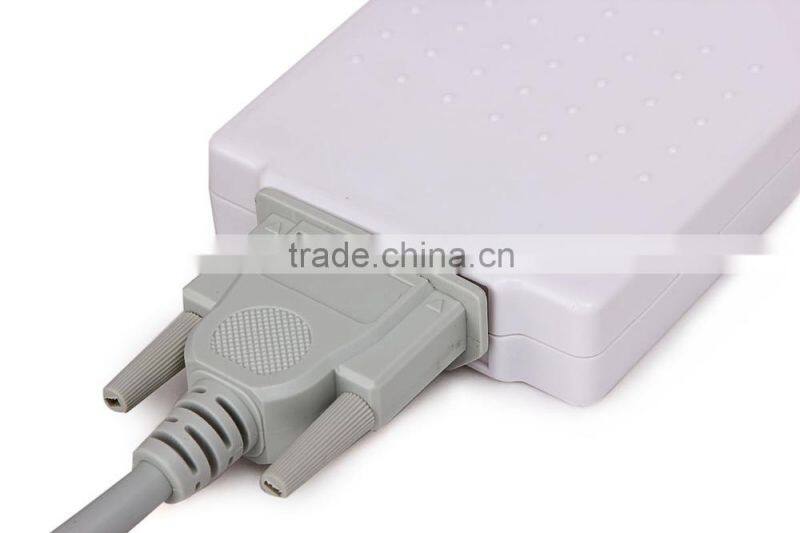

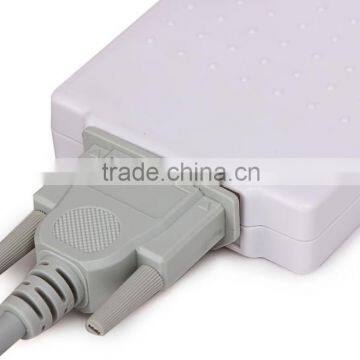

- Patient cable: standard 10-wire, 15-pin D connection

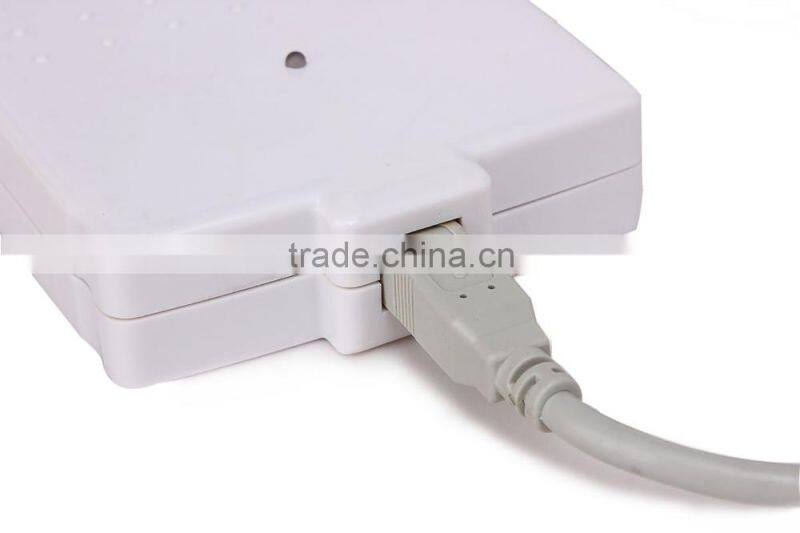

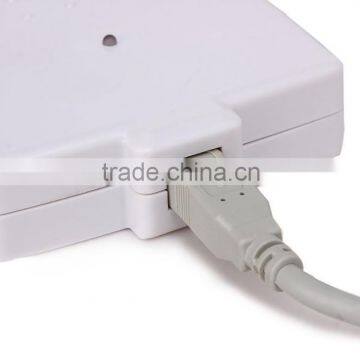

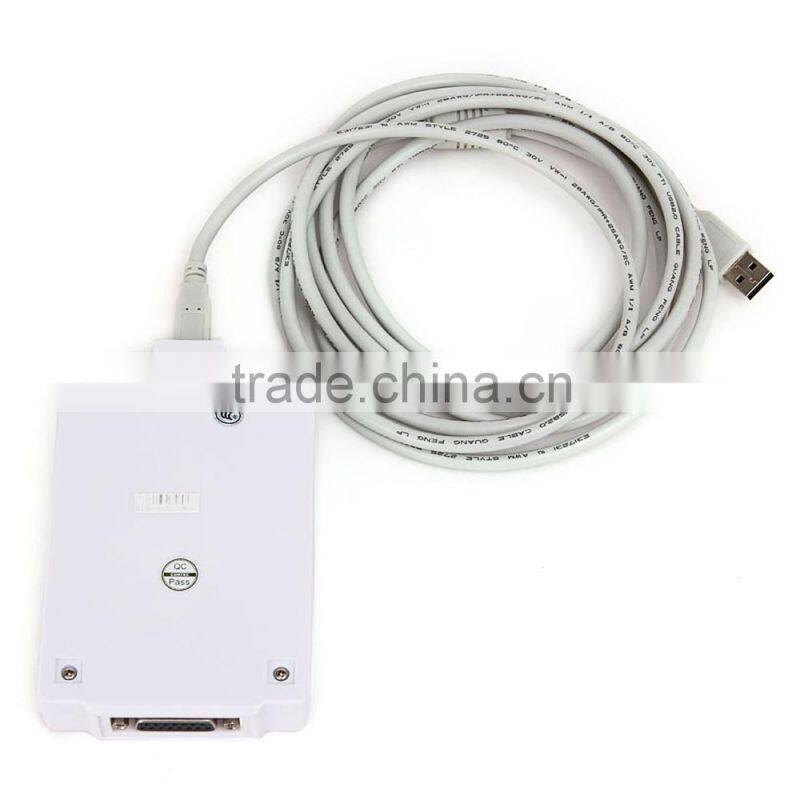

- PC interface: USB
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aims to provide the costeffective, reliable performance products. By collaborating with famous universities
and organizations, the company has designed and produced several types medical equipments in China market.
The quality management system of our company is ISO13485 certified.
Our products are also CE certified by MedCert Germany CE 0482.
Our company has a considerable market share in China domestic market and a growing increase in international market.
We aims to build good business relationships with more international distributors and customers sincerely.
We assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices
and rapid & effective customer service
