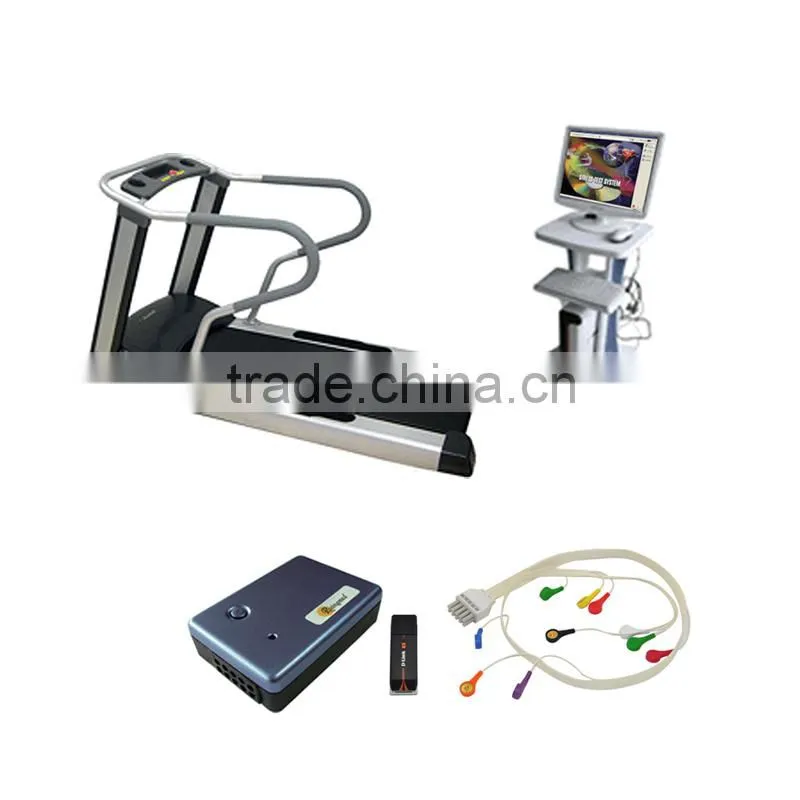

Wireless Solution for Cardiac Stress Exercise.
- Windows XP/VISTA/Win 7 Operating System
CardioScape provides an intuitive user interface with flexible configurations to facilitate ease-of-use
- Complete ST Presentation
In addition to continuous ST trends, CardioScape presents ST level and slope for all 12 average complexes and auto comparison with reference complexes which can be edited both during and after the procedure
- Wireless ECG Acquisition Option
Wireless ECG module digitally transmits and receives diagnostic quality 12-lead ECG data without the need for a conventional tethered patient cable
- Source Consistency Filter
CardioScape super anti-drift technology reduces noise and baseline artifact while preserving a diagnostic quality ECG signal
- Beat By Beat Review Mode
Post-test playback allows for full disclosure review of the entire test
- Comprehensive Trends
Display and print all kinds of trend graph such as HR, BP, METS, HR*BP, exercise trend, ST segment level/Influence/Slope/ST/HR, etc.
- Powerful Case Management
CardioScape provides powerful case management & perfect case history input/output function
- Compatible with RS232 Treadmills
CardioScape is compatible with Trackmaster, Cosmos, RAM, Schiller, Taeha, Trackmaster, Parker, Valiant

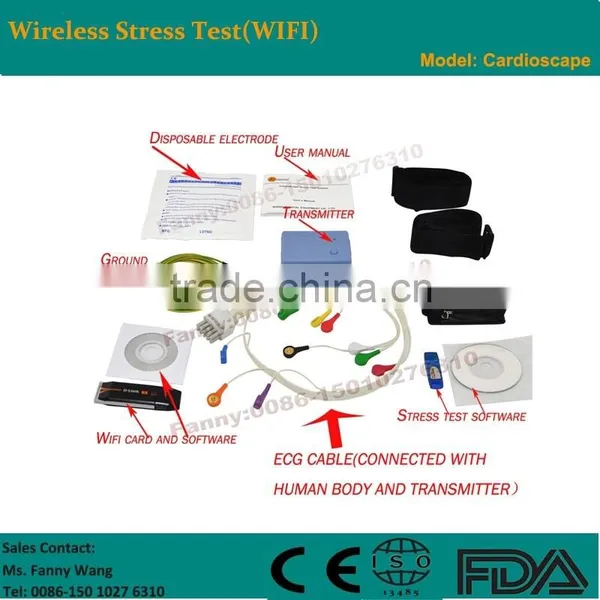

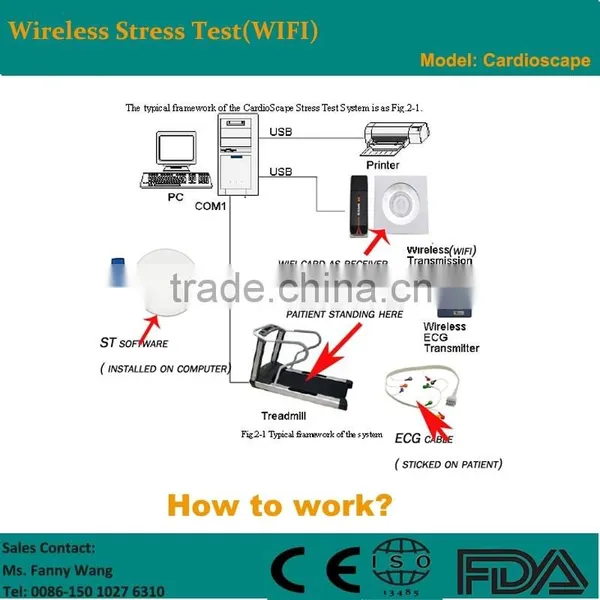

CardioScape Wireless ECG Transmitter & Wifi Receiver
CardioScape advanced wireless telemetry revolutionizes traditional stress exercise and enables new levels of freedom in multi-modality stress testing. CardioScape stress exercise systems applies patented ECG algorithms and are designed to meet a complete range of stress exercise testing needs
- Freedom of Movement
CardioScape provides wireless freedom of movement for the patient and clinician
- Diagnostic Quality
CardioScape wireless technology features full diagnostic ECG quality
- Significant Artifact Reduction
The wireless soltuion eliminates artifact due to traditional cable movement, resulting in cleaner, higher quality tracing
- Comfortable ECG Acquisition for Patient
CardioScape eliminate the need for traditional ECG patient cable
Specification:
- Sample rate: 1000Hz
- Resolution: 12 bit
- Filter: 35 Hz, 50/60Hz
- Gain: 5, 10, 20mm/mV
- Heart rate range: 30-300bpm
- Frequency response: 0.05-150Hz
- Input impedance: ≥50 MΩ
- Dynamic input range: ±3mV
- Anti-polarization voltage: ±500mV
- Communication: wireless transmission, USB
- Wireless transmitter power supply: 5.0V (DC)
- Wireless receiver power supply: 3.0 (DC)
- Transmitter dimension: 92 x 63 x 28 mm
- Receiver dimension: 149 x 79 x 21 mm

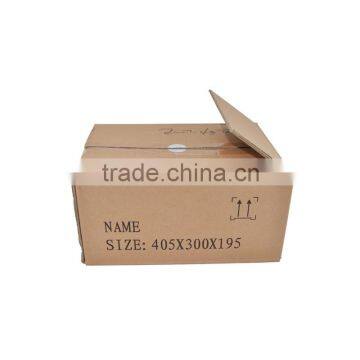

Package: We offer the standard Export Carton or wooden case for shipment, and we can also accept special packing as per client's request.
Per package dimension:
3kgs 42*31*16cm;
14kgs 74*56*37cm;
252kgs 226*99*64cm
Shipping: Our company offer the shipment via Express(DHL, TNT, UPS, FEDEX), Postal Service, by sea or by air. We will help select the most appropriate shipment method, based on full consideration of cost, speed and customer's special request.
Delivery time: within 5-10 days after confirmation the payment.
Warranty: 18 months after delivery date, and spare parts are available for ten years.
Delivery time: within 5-10 days after confirming the payment.
Package: Standard Export Carton with foam.
Training: We offer the on-line or on-spot training, upon the client's request.
Our Goal: Offer my esteemed clients the best qualified products and service, far beyond your expectation.
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aim to provide the cost-effective, reliable performance products. By collaborating with famous universities and organizations, the company has designed and produced several types medical equipments in China market. The quality management system of Risingmed is ISO13485 certified. Our products are also CE certified by MedCert Germany CE 0482. We have won a considerable market share in China domestic market and a growing increase in international market.
We aim to build good business relationships with more international distributors and customers sincerely. Risingmed assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid & effective customer service.
We have many medical product categaries up to now:
Pulse Oximeter, Ultrasound Scanner, Patient Monitor, ECG, Holter, Fetal Doppler, Fetal Monitor, Endoscopes, Operation lights, Operation tables,etc.
