12 lead Resting PC ECG System with Diagnostic Cardiology auto interpretation
Function (8 functions):
- ECG: 12-lead resting PC-ECG with auto interpretation
- VCG: Vector-cardiograph with auto interpretation
- TVCG: Timed Vector-cardiograph
- FCG: Frequency ECG (unique technique to detect ischemia and CAD)
- HFECG: High Frequency ECG
- SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
- QTD: QT Dispersion with chroma map
- HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots
Hardware Features:
- High sampling rate of 1000Hz
- Digital filter system
- Applying anti-baseline-drift technology ensuring the stability of ECG baseline
- Wilson and Frank hookup system
- Meet the international standard of IEC60601-1
- Easy operation and perfect printout
- Diagnosis of coronary heart disease
- Perfect time domain, frequency domain and non-linear HRV analysis
- Perfect ECG database management system
Specification:
- Sample rate: 1000Hz, simultaneous 12 leads recording
- Resolution:12bit
- Power: 5.0V (DC)
- Patient Insulation: 4000V AC
- Defibrillation Protection: Built-in box
- Digital resolution: 2μV
- Frequency response: 0.05-250 Hz
- Common mode rejection: >90dB
- Input impedance: >10MΩ
- Time constant: ≥3.2 s
- Max electrode potential: ±300mV DC
- Dynamic range: ±10mV
- Isolate voltage: 4000V
- Current leak: <10μA

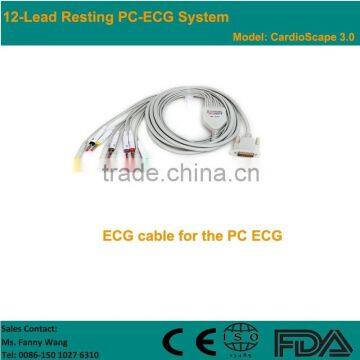

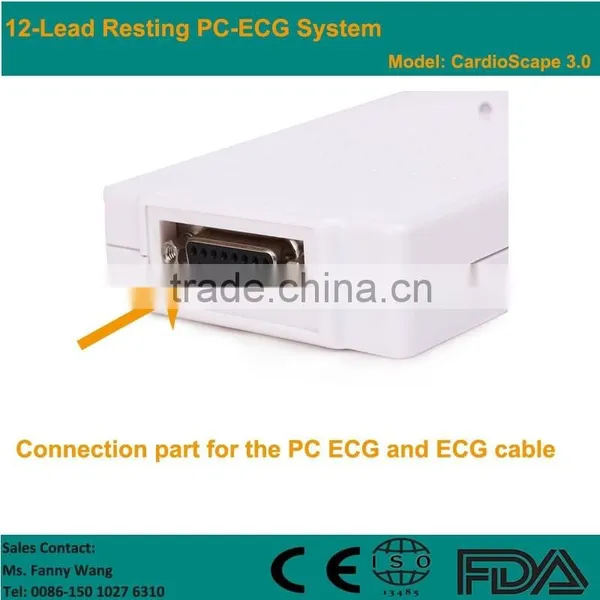

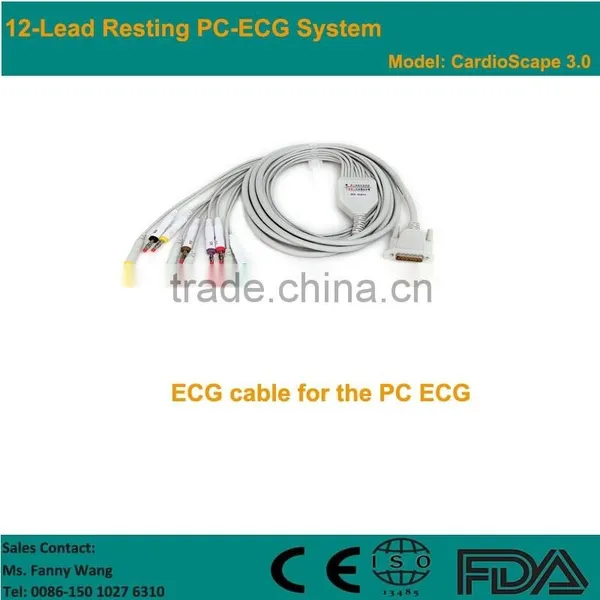

- Patient cable: standard 10-wire, 15-pin D connection

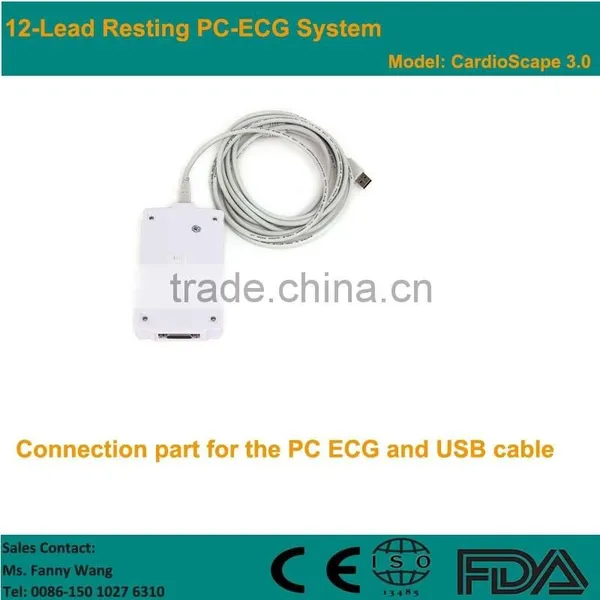

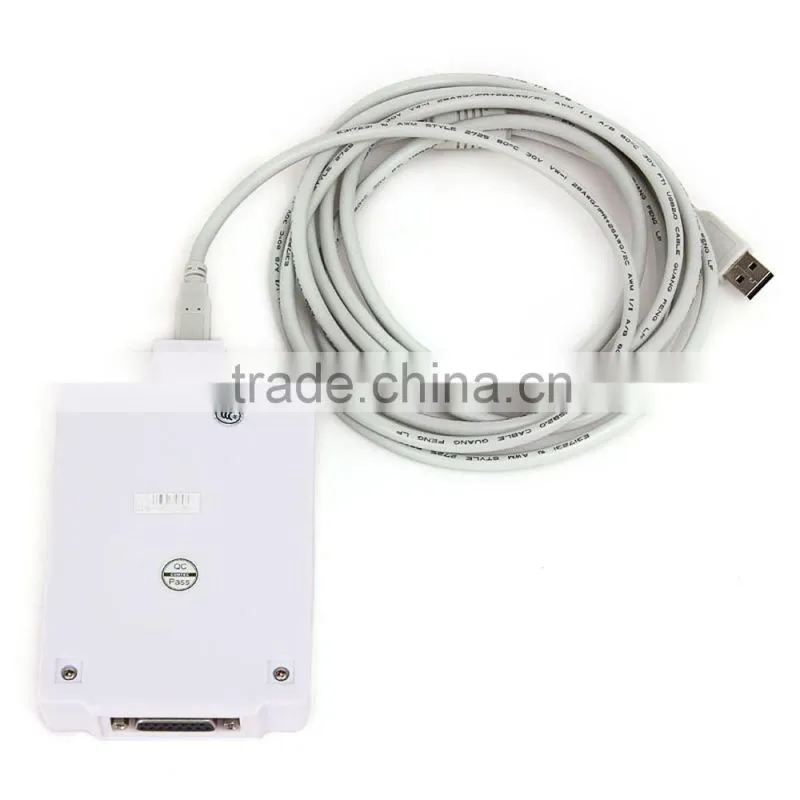

- PC interface: USB
Our company has been a professional manufacturer & distributor for high-tech medical equipments since 2001.
We aim to provide the cost-effective, reliable performance products.
By collaborating with famous universities and organizations, the company has designed and produced several types medical equipments in China market. The quality management system of Risingmed is ISO13485 certified. Our products are also CE certified by MedCert Germany CE 0482. We have won a considerable market share in China domestic market and a growing increase in international market.
We aim to build good business relationships with more international distributors and customers sincerely. Risingmed assures dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid & effective customer service.
We have many medical product categaries up to now:
Pulse Oximeter, Ultrasound Scanner, Patient Monitor, ECG, Holter, Fetal Doppler, Fetal Monitor, Endoscopes, Operation lights, Operation tables,etc.
Package: We offer the standard Export Carton or wooden case for shipment, and we can also accept special packing as per client's request.
Per package dimension: 4KGS , 20*41*30cm
Shipping: Our company offer the shipment via Express(DHL, TNT, UPS, FEDEX), Postal Service, by sea or by air. We will help select the most appropriate shipment method, based on full consideration of cost, speed and customer's special request.
Delivery time: within 1-3 days after confirmation the payment.
Warranty: 18 months after delivery date, and spare parts are available for ten years.
Delivery time: within 5-10 days after confirming the payment.
Package: Standard Export Carton with foam.
Training: We offer the on-line or on-spot training, upon the client's request.
Our Goal: Offer my esteemed clients the best qualified products and service, far beyond your expectation.
