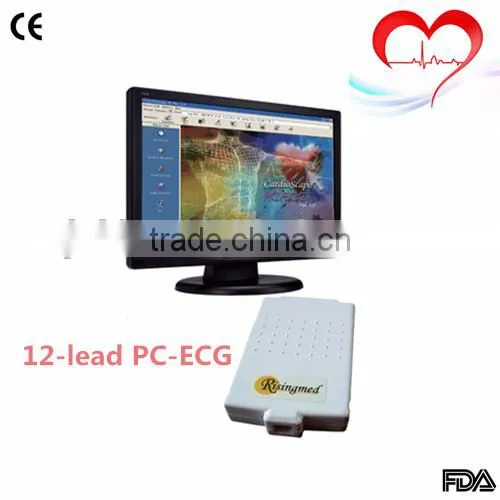

CE &FDA Approved 12-lead Resting PC-ECG System With Software

CardioScape PC-ECG 3.0
Function (8 functions):

• ECG: 12-lead resting PC-ECG with auto interpretation
• VCG: Vector-cardiograph with auto interpretation
• TVCG: Timed Vector-cardiograph
• FCG: Frequency ECG (unique technique to detect ischemia and CAD)
• HFECG: High Frequency ECG
• SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
• QTD: QT Dispersion with chroma map
• HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots

Hardware Features:

• High sampling rate of 1000Hz
• Digital filter system
• Applying anti-baseline-drift technology ensuring the stability of ECG baseline
• Wilson and Frank hookup system
• Meet the international standard of IEC60601-1
• Easy operation and perfect printout
• Diagnosis of coronary heart disease
• Perfect time domain, frequency domain and non-linear HRV analysis
• Perfect ECG database management system

Specification:

• Sample rate: 1000Hz, simultaneous 12 leads recording
• Resolution:12bit
• Power: 5.0V (DC)
• Patient Insulation: 4000V AC
• Defibrillation Protection: Built-in box
• Digital resolution: 2μV
• Frequency response: 0.05-250 Hz
• Common mode rejection: >90dB
• Input impedance: >10MΩ
• Time constant: ≥3.2 s
• Max electrode potential: ±300mV DC
• Dynamic range: ±10mV
• Isolate voltage: 4000V
• Current leak: <10μA
• Patient cable: standard 10-wire, 15-pin D connection
• PC interface: USB
