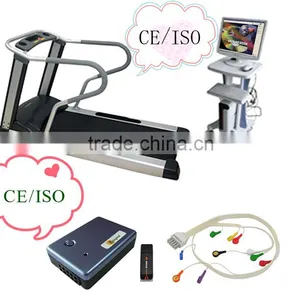

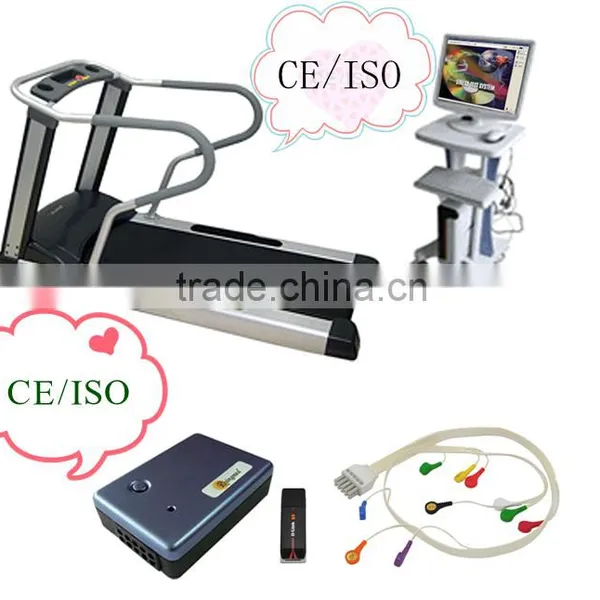

Advanced Cardiac Stress Exercise PC Based Wireless ECG Stress Test System Testing Treadmill Optional CE Certificate

 PC-Based Wireless Treadmill ECG Stress Test System

Wireless Solution for Cardiac Stress Exercise.

• Windows XP/VISTA Operating System

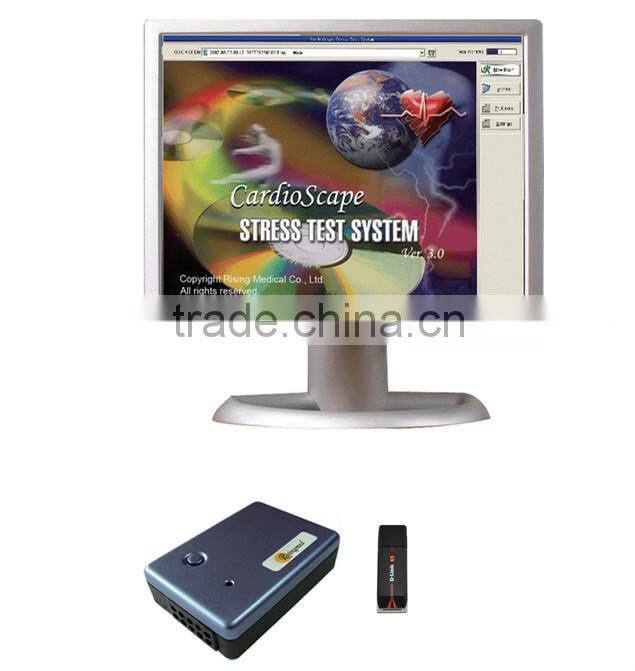

CardioScape provides an intuitive user interface with flexible configurations to facilitate ease-of-use

• Complete ST Presentation

In addition to continuous ST trends, CardioScape presents ST level and slope for all 12 average complexes and auto comparison with reference complexes which can be edited both during and after the procedure

• Wireless ECG Acquisition Option

Wireless ECG module digitally transmits and receives diagnostic quality 12-lead ECG data without the need for a conventional tethered patient cable

• Source Consistency Filter

CardioScape super anti-drift technology reduces noise and baseline artifact while preserving a diagnostic quality ECG signal

• Beat By Beat Review Mode

Post-test playback allows for full disclosure review of the entire test

• Comprehensive Trends

Display and print all kinds of trend graph such as HR, BP, METS, HR*BP, exercise trend, ST segment level/Influence/Slope/ST/HR, etc.

• Powerful Case Management

CardioScape provides powerful case management & perfect case history input/output function

• Compatible with RS232 Treadmills

CardioScape is compatible with Trackmaster, Cosmos, RAM, Schiller, Taeha, Trackmaster, Parker, Valiant

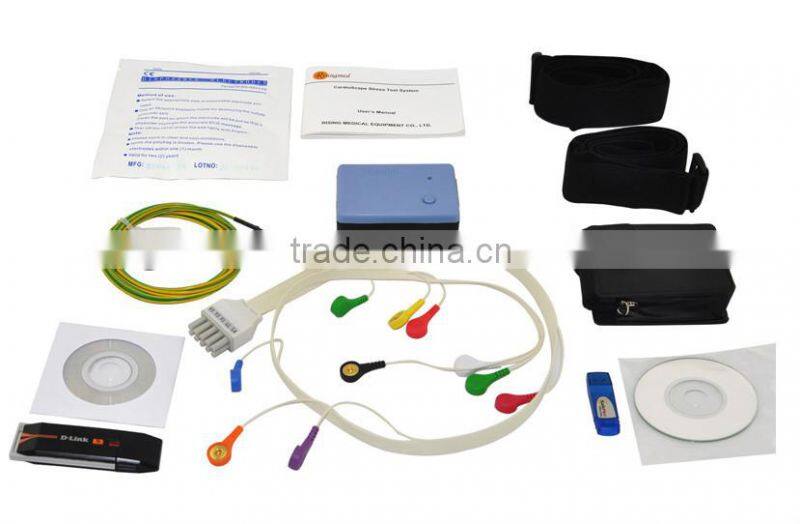

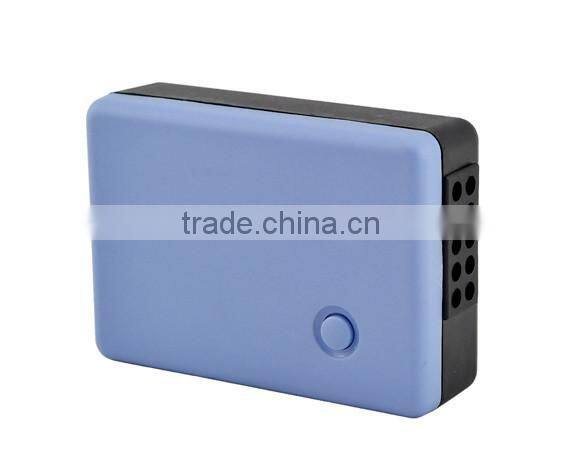

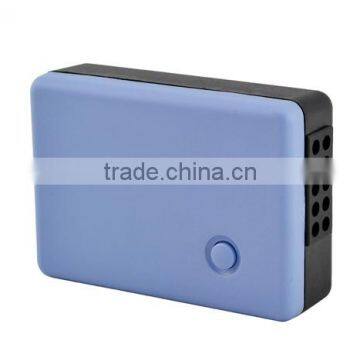

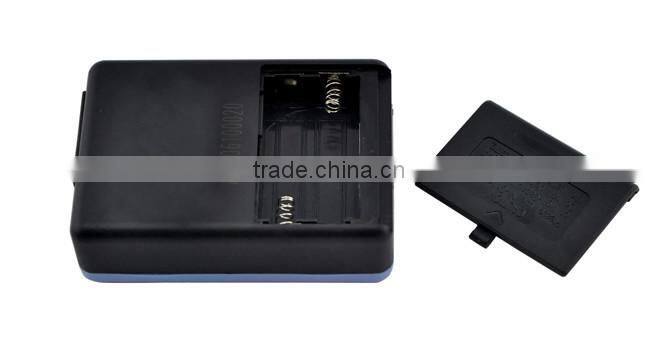

CardioScape Wireless ECG Transmitter & Receiver

CardioScape advanced wireless telemetry revolutionizes traditional stress exercise and enables new levels of freedom in multi-modality stress testing. CardioScape stress exercise systems applies patented ECG algorithms and are designed to meet a complete range of stress exercise testing needs

• Freedom of Movement

CardioScape provides wireless freedom of movement for the patient and clinician

• Diagnostic Quality

CardioScape wireless technology features full diagnostic ECG quality

• Significant Artifact Reduction

The wireless soltuion eliminates artifact due to traditional cable movement, resulting in cleaner, higher quality tracing

• Comfortable ECG Acquisition for Patient

CardioScape eliminate the need for traditional ECG patient cable

Specification:

• Sample rate: 1000Hz
• Resolution: 12 bit
• Filter: 35 Hz, 50/60Hz
• Gain: 5, 10, 20mm/mV
• Heart rate range: 30-300bpm
• Frequency response: 0.05-150Hz
• Input impedance: ≥50 MΩ
• Dynamic input range: ±3mV
• Anti-polarization voltage: ±500mV
• Communication: wireless transmission, USB

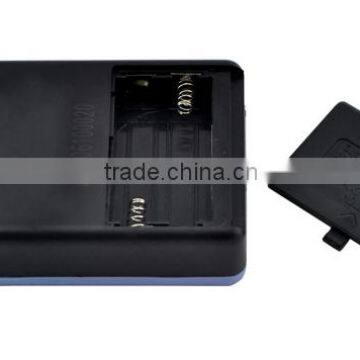

• Wireless transmitter power supply: 5.0V (DC)

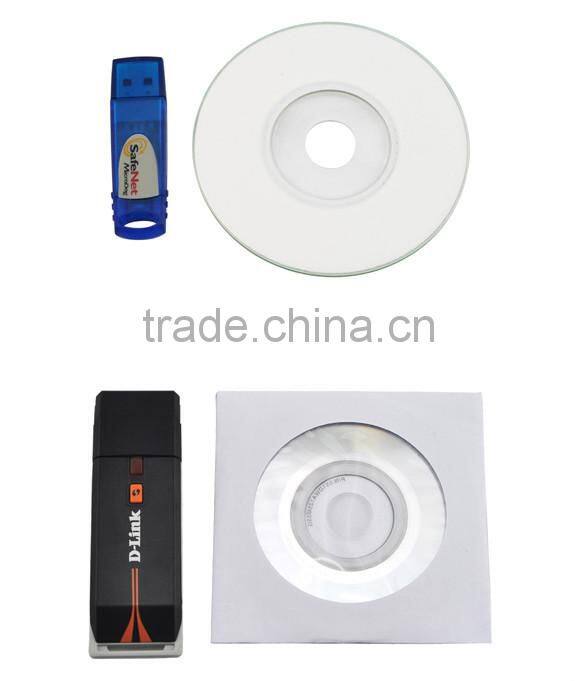

• Wireless adapter: universal
• Transmitter dimension: 92 x 63 x 28 mm
• Receiver dimension: 149 x 79 x 21 mm

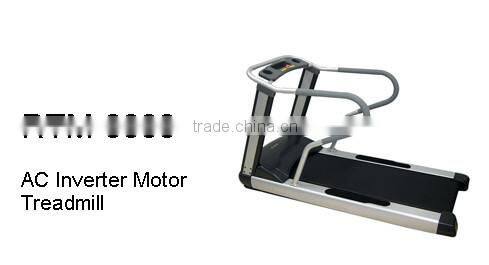

AC Inverter Motor Treadmill Model RTM-3000

• Accurate speed control
• Emergency stop button
• Apply the latest AC inverter motor

• User capacity of 180Kg
• Frame of heavy-gauge steel
• Safety side-rails are standard
• Heavy duty 3 HP AC inverter drive
• Excellent performance, reliable, stable with lower noise during working
• Speed Range:0~20km/h
• Elevation Range: 0-25% standard
• Dimension: 210×82×140cm
• Power Source: AC 220V, 50Hz
