2 Cores Fiber Optical Jumper Cable

2 Cores Fiber Optical Jumper Cable photo-1
2 Cores Fiber Optical Jumper Cable photo-2
US$ 0.1 - 5 MOQ: 5 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NECERO
Model Number:
GJFJV
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name NECERO
Model Number GJFJV
Type Coaxial

Our customers

Description

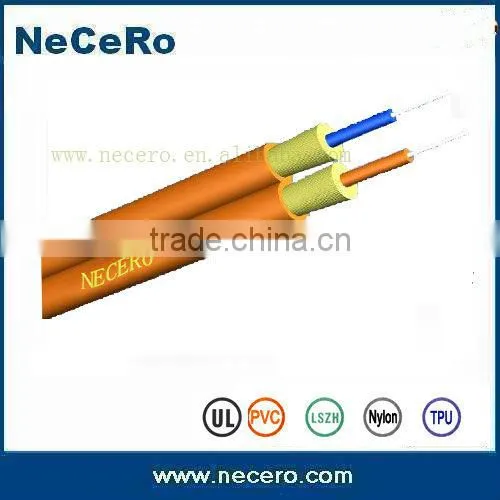

NECERO indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.

Characteristics

Good uniformity of the outer diameter of tight buffer fiber and excellent strippabilityGood performance of flame-retardantLow induced attenuation within the operating temperature range Excellent geometrical dimension of the fiber

Application Data communicationMaking connectorInstallation: riser, plenum, etc.Places where waterproof is not strictly required Making jumper, pigtail and building distribution

Description

1fiber, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, LSZH Jacket.

Standards

Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.

Cable Code




SXC-III

SXC-II

SXC-I

Cable Diameter

2.8±0.2mm

2.0±0.2mm

1.6±0.2mm

Cable Weight

6.9kg/km

5.9kg/km

4.0kg/km

TBF Diameter

900±50μm

900±50μm

600±50μm

 Mechanical Characteristics

Tensile Strength

Long term

80N

60N



Short term

150N

120N



Crush Resistance

Long term

100N/100mm

Short term

500N/100mm

Bending Radius

Dynamic

20×(Cable Diameter)

Static

10×(Cable Diameter)

 Environmental Characteristics


Transport Temperature

-20°C~+60°C

Storage Temperature

-20°C~+60°C

Installation Temperature

-5°C~+50°C

Operating Temperature

-20°C~+60°C

 2 cores fiber optical jumper cable2 cores fiber optical jumper cable2 cores fiber optical jumper cable
