GJYXFCH FTTH Drop cable 1core
Technical Parameters
| Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| 1 | (2.0±0.2)X(5.3±0.2) | 20 | 60/120 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)X(5.3±0.2) | 20 | 60/120 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)X(5.3±0.2) | 21 | 60/120 | 300/1000 | 15/30 |

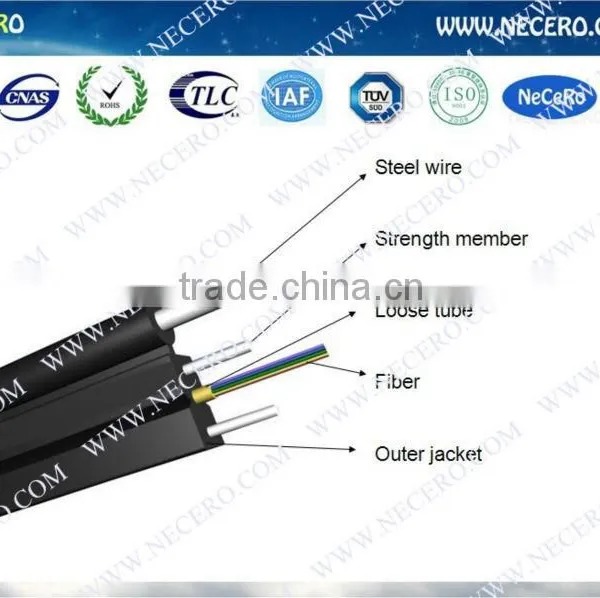

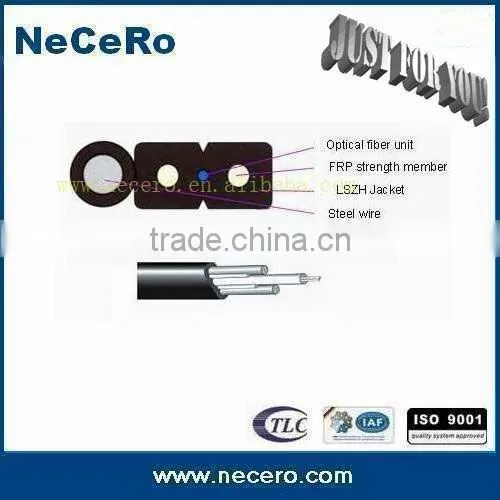

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
FAQ
1. Are you the real factory?
Yes,we are the real factory with 15 years’ history.
2. What is your fiber brand?
Fiber brands including : Corning, Fujikura,YOFC,FiberHome
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
Contact Us
Add: Sungang East Road, Sungang Street, 518000,Shenzhen,Guangdong,China.
Web:

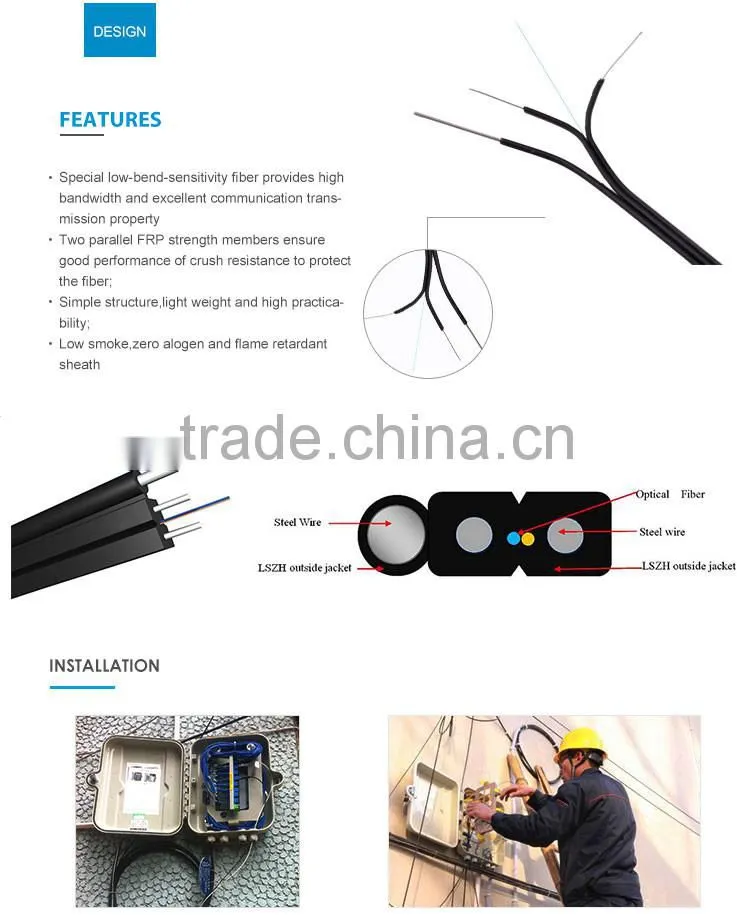

Characteristics: * Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property; * Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber; * Single steel wire or massengers as the additional strength member ensures good performance of tensile strength; * Simple structure, light weight and high practicability;
* Novel flute design, easily strip and splice, simplify the installation and maintenance; * Low smoke, zero halogen and flame retardant sheath.
