YD-168

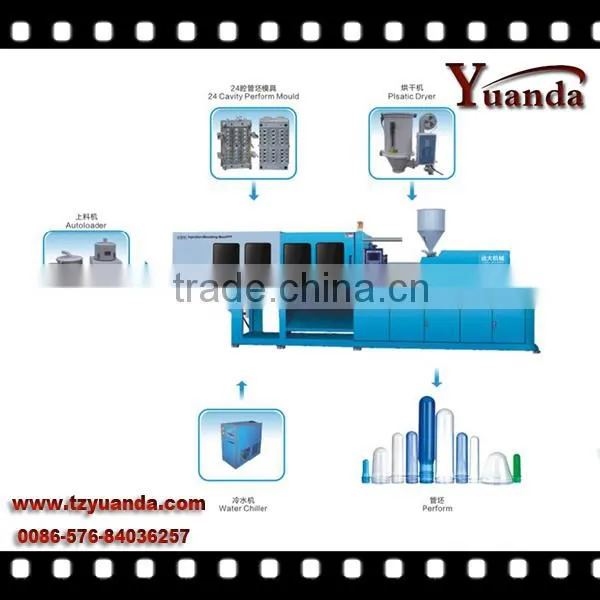

PET Preform Injection Molding machine

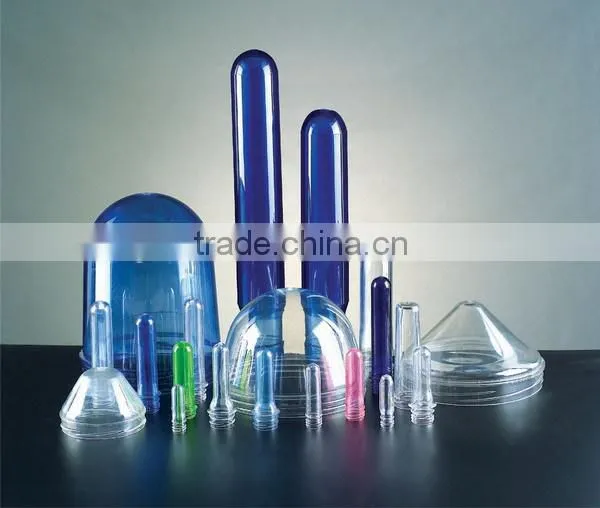

YUANDA can supply special designed for PET preforms from 100 to 400ton injection molding machines.
Mould Clamping Unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multi servo molding device according to the requirement of the user.
Mould Adjusting Unit
1> Hydraulic driven gear adjusting
2> Storage type automatic grease lubricating pump
Injection Unit
Double-leaders supporting, balanced double cylinders injection. The injection screw is directly driven by a low speedhigh torque hydraulic motor. And it can be got stepless speed. The screw with optimum design enjoys features of wide application, good plasticating and high efficiency. Decompression device can prevent plastic material from dripping.
Hydraulic Unit
This unit composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. In addition, a quick mold clamping device and fast-respond excellent control valves are also fitted on the unit.
Electric Unit
It is adopted special computer of plastic injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warn of excess oil temperature to ensure the working accuracy of machine.
Model |
YD1680 |
||
INJECTION UNIT |
A |
B |
C |
Screw Diameter mm |
40 |
45 |
50 |
Length/Diameter Ratio L/D |
22.5 |
20 |
18 |
Theoretical Injection Pressure Mpa |
215 |
169 |
137 |
Injection Weight (PS) g |
257 |
326 |
402 |
Plasticizing Capacity g/s |
19.5 |
24.7 |
30.5 |
Maximum Screw Speed rpm |
0-190 |
||
Injection Stroke mm |
225 |
||
Clamping Unit |
|
||
Clamp Tonnage kn |
1680 |
||
Toggle Stroke mm |
430 |
||
Space Between Lie Bars(HxV) mm |
470x470 |
||
Max.mould Height mm |
520 |
||
Min.mould Height mm |
150 |
||
Daylight Opening mm |
950 |
||
Ejector Tonnage kn |
33 |
||
Ejector Stroke mm |
140 |
||
Ejector Number piece |
5 |
||
Others |
|
||
System Pressure Mpa |
16 |
||
Pump Motor Power kw |
15 |
||
Heater Power kw |
8.7 |
||
Hopper Capacity kg |
25 |
||
Machine Dimension(LxWxH) m |
4.92x1.35x1.93 |
||
Oil Tank Capacity I |
170 |
||
Machine Weight t |
5.4 |
||
