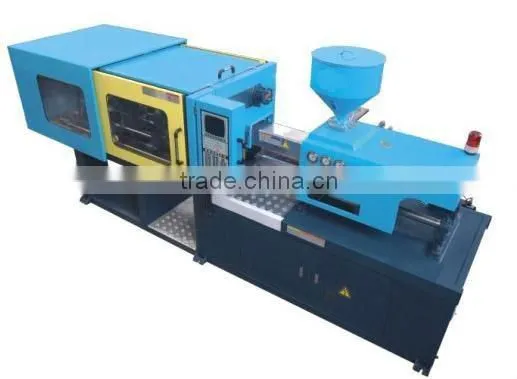

Pet Preform Making Machines /Injection Moulding Machine
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cap Injection Molding MachineUS$ 20,000 - 50,000MOQ: 1 Set -
Plastic Injection Moulding Machine for PET PreformNegotiableMOQ: 1 Set
-
PET-800 PET Preform Injection Moulding MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
PET Preform Plastic Injection Molding MachineUS$ 2,000 - 50,000MOQ: 1 Set
-
PET Preform Injection Molding MachineUS$ 20,000 - 50,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
YUANDA
Model Number
PET-1000
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
1000Grams
Clamping Force
2180KN
Opening Stroke
470MM
Pet Preform Making Machines /Injection Moulding Machine
1-32 cavity

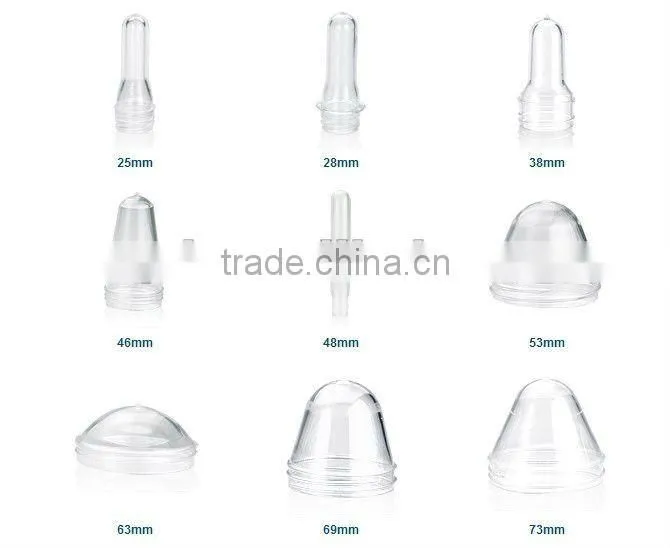

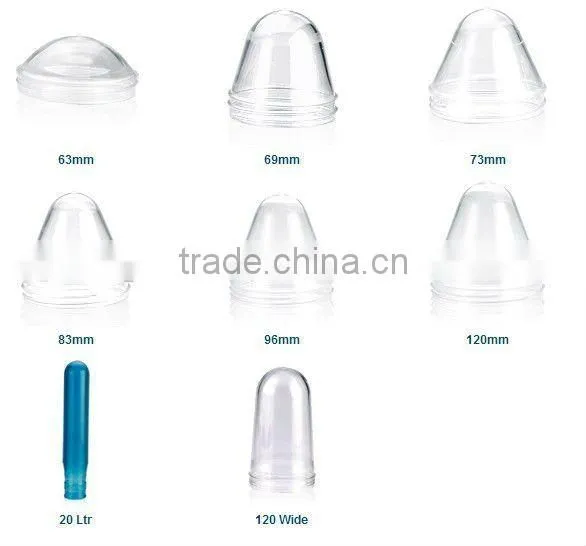

3-750Grams/preform
1).Since PET preforms are thick walled, The PET series injection molding machine are designed with large space between tie bars,large mould opening stroke, large maximum mould height and large ejection stroke. The machine screw diameter is big to give sufficient shot weight. The screw is also prolonged, which the L/D ration can be reached to 24: that preform are produced with uniform wall, brightly and transplant.
- 2).We have seven types of the PET appropriative injection molding machine which the injection volume is range from 400 to 3200g,cavity No is range from 1 cavity to 48 cavity, and can produce the bottle volume form 20ml to 18.9L.
- 3).Each model of the cap appropriative injection molding machine can adopt the outside-mould cooling system as the choice, which can shorten the preform forming circle time.
-
GENERAL INFORMATION PET450 PET680 PET1000 PET1500 PET2100 PET2300 Injection unit SCREW DIAMETER(mm) 50 60 68 70 80 85 SEREW L/D RATION 25 25 25 26 26 26 SHOT WEIGHT(PET1.35)(g) 400 650 1000 1450 1800 2300 SHOT WEIGHT(BOPP0.9)(g) 266 430 660 960 1200 1500 INJECTION PRESSURE(Mpa) 1147 1036 1082 1136 1132 1132 Clamping unit CLAMPING FORCE(KN) 1500 1680 2180 2800 3380 3980 TOGGLE STROKE(mm) 380 430 470 540 670 720 MIN.MOLD THICKNESS(mm) 170 180 200 220 240 280 MAX.MOLD THICKNESS(mm) 480 500 530 650 710 850 SPACE BETWEEN TIE BARS(mm) 410×410 460×460 505×505 570×570 660×660 720×720 MOVABLE PLATEN SIZE(mm) 600×600 675×675 740×740 840×845 980×980 1035×1035 EJECTOR STROKE(mm) 120 130 135 145 160 160 EJECTOR NO (N) 5 5 9 9 13 13 General PUMP MOTOR POWER(KW) 15 18.5 22 30 37 37 HEATER POWRE(KW) 8.5 9.2 13.5 17.6 21.3 23.8 OIL TANK CAPACITY(L) 230 240 340 570 620 950 MAX.PUMP PRESSURE(MPa) 16 16 16 16 16 16 MACHINE DIMENSIONS(L×W×H)(m) 4.8×1.5×2.0 5.4×1.7×2.2 5.7×1.8×2.3 6.3×1.9×2.4 6.6×2.2×2.7 7.3×2.2×2.7 MACHINE WEIGHT(Approximat)(t) 3.7 5 6.5 8.1 12 14.2 PET 12-CAVITY,WEIGHT PER PREFORM(g) 32 54 79 111 173 173
