The most popular one stage water treatment system
Features
1. Automatic backwash and manual backwash
2. Automatic switch on when low water level, and switch off when high water level
3. This system occupy little space, easy to operate, wide application range.
4. Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
5. Finished water under good electric conductivity, one stage≤10μs/cm, two stage around 2-3μs/cm, EDI ≤0.5μs/cm
Summary of reverse osmosis
1.Daily purified drinking water for community, school, hotel, factories etc.
2. Water used in beverage, food, cosmetics, pharmacy, chemical industry etc.
3. Electronic and Chemical industry water use.
4. Other process water: automobile, home appliance, coated glass, fine chemicals etc.
Water treatment process flowchart
Raw water→ Raw water tank→ Raw water pump→ Sand filter→ Active carbon filter→ Security filter→ high pressure pump→ RO component→ Pure water tank →UV/Ozone→ Pure Water
Technical parameter
| Model | Capacity(T/H) | Power(KW) | Recovery(%) | One-Stage Finished Water Conductivity(μs/cm) | Two-Stage Finished Water Conductivity(μs/cm) | EDI System Finished Water Conductivity(μs/cm) | Raw Water Conductivity(μs/cm) |
| JT-0.5 | 0.5 | 0.75 | 55-75 | ≤10 | 2-3 | ≤0.5 | ≤300 |
| JT-1 | 1.0 | 2.2 | 55-75 | ||||
| JT-2 | 2.0 | 4.0 | 55-75 | ||||
| JT-3 | 3.0 | 5.5 | 55-75 | ||||
| JT-5 | 5.0 | 7.5 | 55-75 | ||||
| JT-6 | 6.0 | 7.5 | 55-75 | ||||
| JT-10 | 10.0 | 11 | 55-75 | ||||
| JT-20 | 20.0 | 15 | 55-75 |

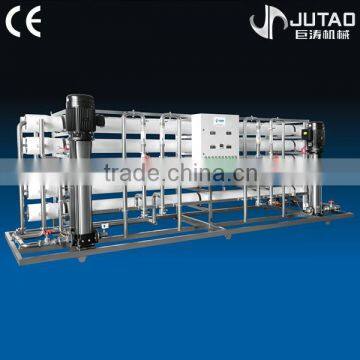

Product picture
Packing & Loading

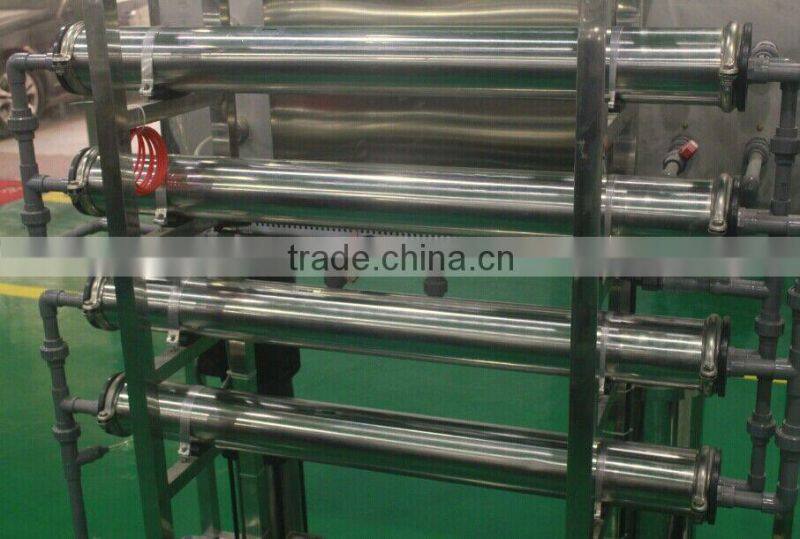

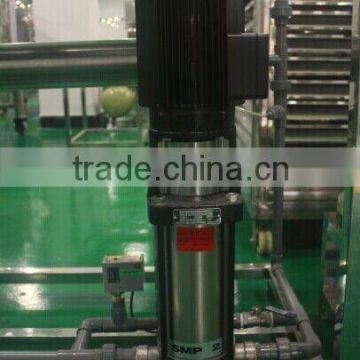

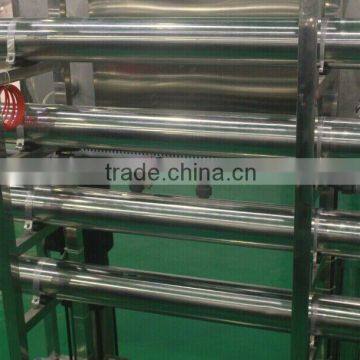

Material sources of parts
Notes: JUTAO Machinery is a professional manufacture of chenemcial machinery and equipment ,accumulating more than 10 years of manufacturing experience since its establishment in 1997. we have been certified to the ISO9001:2000 international quality managment-system.
Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Welcome To Visit Guangzhou JUTAO Machinery Equipment Co.,Ltd !
Please contact us for more details. Thank you !
linda zhuo(International Business Sale)
Mobile: +86 13610286426 Skype: linda-zhuo
