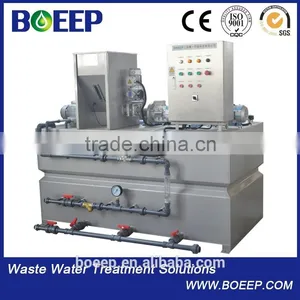

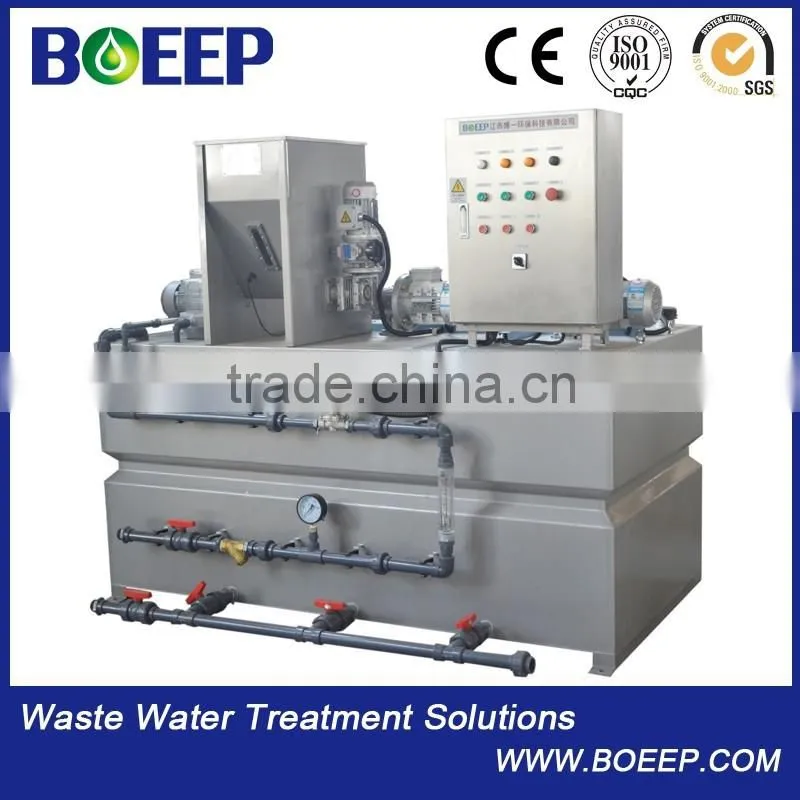

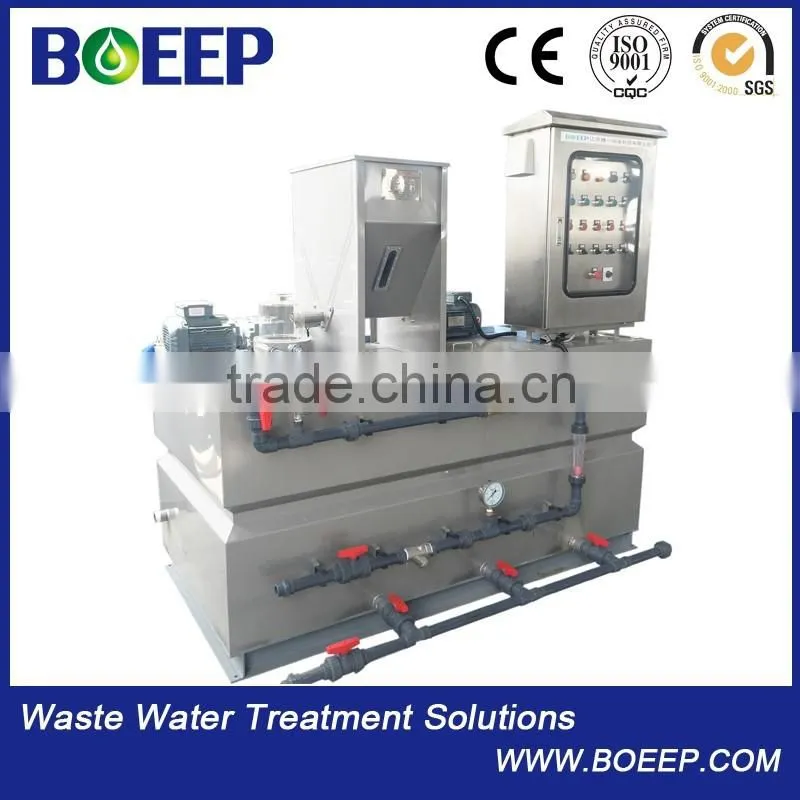

Automatic Polymer Preparation/dosing Unit with Three Tanks
Specifications:
1. polymer machine for sewage treatment
2. low polymer consumption
3. automatic polymer and water feeding
4. accurate concentration
Product Features :
1. Professional design to integrate three tanks( mixing tank, equalization tank and storage tank) into single device, which ensuring continuous operation and saving labour cost;
2. The flocculant dissolving concentration are avaible in certain scope;
3. Heating device is equipped to prevent condensation which may cause by the damp powder;
4. Auto intermittent agitating function , which make sure the solution can be mixed throughly and keep the solution in good condition (HPL 3 series);
5. Auto alarming and stopping ,which have the advantage of energy-saving(optional);
6. Low noise-low vibration and stable performance;
7. Material adopts stainless steel SUS 304( standard type);
8. TOP brand spare parts to ensure excellent performance;
9. Auto powder feeding vacuum auxiliary system( optional);
10.Specially suitable for both dry powder and liquid flocculant( optional) ;
Product Data:
Type Item |
YTH500 |
YTH1000 |
YTH1500 |
YTH2000 |
YTH2500 |
YTH3000 |
YTH4000 |
|
Capacity (L/h) |
Curing/h |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
Power(kw) |
1.7 |
2.45 |
2.45 |
2.45 |
2.45 |
3.9 |
3.9 |
|
PAM dosage(kg/h) |
1-5 |
2-10 |
3-15 |
3.5-20 |
||||
Water inflow(m3/h) |
0.3-1.5 |
0.6-3 |
0.9-4 |
1.2-6 |
1.6-8 |
2.0-10 |
2.4-12 |
|
Reference Dimensions (mm) |
L |
1370 |
2050 |
2130 |
2200 |
2450 |
2450 |
2780 |
B |
1063 |
1350 |
1350 |
1570 |
1610 |
1700 |
1800 |
|
H |
1650 |
1920 |
1920 |
1900 |
2100 |
2250 |
2250 |
|
L1 |
1300 |
1930 |
1930 |
2130 |
2330 |
2330 |
2650 |
|
B1 |
780 |
1050 |
1050 |
1255 |
1270 |
1355 |
1440 |
|
Power feeder DN |
DN25 |
DN25 |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
Water inlet DN1 |
DN25 |
DN25 |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
Overflow port DN2 |
DN32 |
DN40 |
DN40 |
DN40 |
DN40 |
DN40 |
DN40 |
|
Vent port DN3 |
DN25 |
DN25 |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
N.W.(kg) |
380 |
510 |
590 |
710 |
820 |
860 |
1080 |
|
Product Details:
The function of Polymer Dosing System is to make the flocculants of powder or
liquid dissolve or dilute into flocculants solution.
Product Application:
♣ It can be used in the aid condensation of city and industry sewage.
♣ It is convenient in the disposal and desposit of sludge.
♣ It can desolve all the powder polymer.
