Specifications
1. Supply the complete set, convenient in installation.2. Automatic operation.
3. Widely application.
Function and Introduction
Type XQ Circulation Toothed Harrow Mud Cleaner is one of the important dirt pretreated and blocked equipment in the wastewater treatment. It can be applied for drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.
Structure and Working Principle
Toothed harrow made of nylon or stainless steel is equipped to the chain shaft according to certain rankings, which will form an enclosed circulating toothed harrow surface. The whole toothed harrow surface does the circulating exercise from top to bottom driven by the driven chain. The solid suspended matter intercepted on the toothed harrow will be picked up to the platform, and cleaned by turning the brush. Then the goal of protecting the water pump and reducing subsequent work load will be reached.
Feature
1. The movement with the whole grid surface.
2. With overload protection device, reliable work.
3. Supply the complete set, convenient in installation.

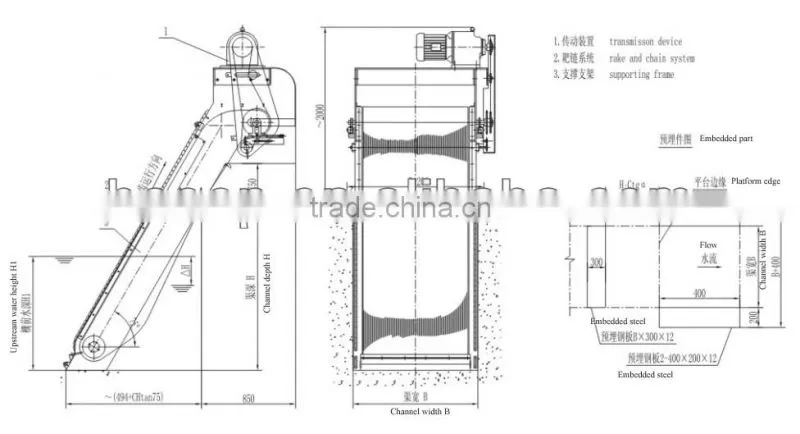

Dimension drawing of outline mounting
More pictures
