Help CenterDrum Screen Filter in Sewage Treat,ment Plant
Related Products
Specifications
1. Simple structure, high reliability.2. Compact structure, small covering area.
Function and introduction
Type ZL Drum Filter is one of the pretreatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively. In some wastewater treatments, 30% to 60% of the organic inorganic solid suspended matter will be remove after filtering, and reducing greatly the subsequent work load.
Model designation
Feature
1. Simple structure, high reliability.
2. Compact structure, small covering area.
3. The surface of the drum is made of wedge grid, and has excellent hydraulic characteristics.

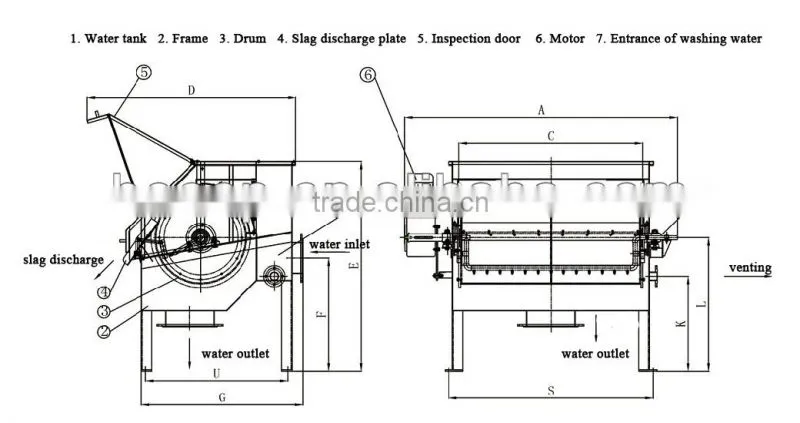

Dimension drawing of outline installation

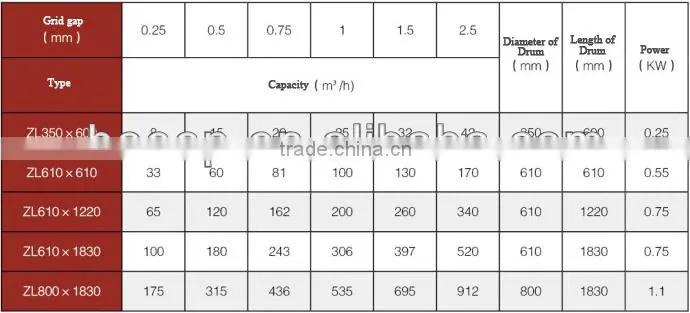

Technical parameters
Note: If the grid gap over 1mm is chosen, you should check the diameter of the water inlet and outlet pipe.
