Polymer dosing system for wastewater treatment
Feature
1. Full automatic operation including automatic dosing, dissolving and feeding.
2. The high precision transporting of dry polymer dosing device and the well designed heater device can prevent the polymer from caking.
3. The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared.
4. Quantitative chemical feeder measures accurately, and it uses the limitless transmission gearbox drive, those can adjust the dosing capacity conveniently. The range of losing density is large;
5. High automation under the functions of liquid level control, material testing and vibration auxiliary feeding.
Product Introduction:
The function of BOEEP Polymer Dosing System is to make the flocculants of powder or liquid dissolve or dilute into flocculants solution.
Model selection: volume of Polymer Dosing System = absolute dry capacity of sludge in set time of dewatering machine × adding rate of flocculants × dissolving times of flocculants × continuous operation time.
Technical parameter
|
Type Item |
YTH 500 |
YTH 1000 |
YTH 1500 |
YTH 2000 |
YTH 2500 |
YTH 3000 |
YTH 4000 |
|
Capacity (L/h) |
Curing for an hour |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
Power(kw) |
1.7 |
2.45 |
2.45 |
2.45 |
3.5 |
3.9 |
3.9 |
|
PAM dosage (kg/h) |
1-5 |
2-10 |
3-15 |
3.5-20 |
||||
Water inflow(m³/h) |
0.3-1.5 |
0.6-3 |
0.9-4 |
1.2-6 |
1.6-8 |
2.0-10 |
2.4-12 |
|
Reference Dimension (mm) |
L |
1370 |
2000 |
2130 |
2200 |
2400 |
2400 |
2720 |
B |
680 |
1000 |
1070 |
1200 |
1200 |
1300 |
1400 |
|
H |
1500 |
1710 |
1710 |
1900 |
2140 |
2180 |
2250 |
|
L1 |
1300 |
1930 |
2060 |
2130 |
2330 |
2330 |
2650 |
|
B1 |
730 |
1050 |
1120 |
1250 |
1350 |
1350 |
1450 |
|
Powder feeder DN |
DN25 |
DN32 |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
Water inlet DN1 |
DN25 |
DN32 |
DN32 |
DN32 |
DN40 |
DN50 |
DN50 |
|
Overflow port DN2 |
DN32 |
DN40 |
DN40 |
DN40 |
DN40 |
DN40 |
DN40 |
|
Vent port DN3 |
DN25 |
DN32 |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
N.W.(kg) |
380 |
510 |
590 |
710 |
820 |
860 |
1080 |
|

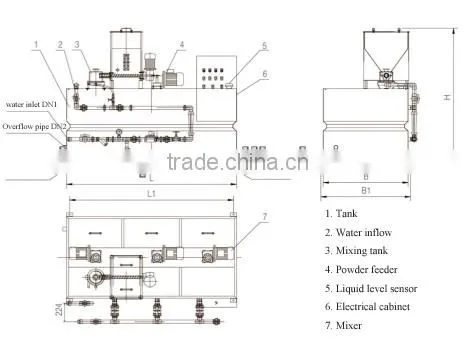

Outline
Any inquiry , welcome here , we will do our best for you ! Tks for your reading !
