Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BOEEP | Model Number: | WLS/WLY |
Product Description
Introduction:

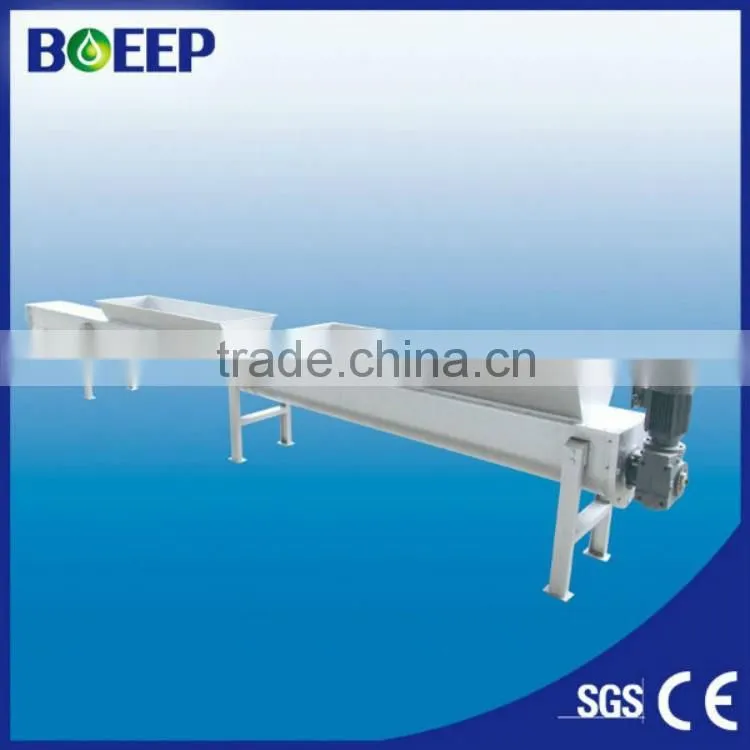

BOEEP screw conveyor, which is designed according to standard of JB/T679-95 screw conveyor. The machine features high reliability, long lifetime, good applicability, convenience to install and maintain. The temperature of materials can reach up to 100 °C, the biggest dip angle can be up to 45°.The Screw Conveyor is a conveyor device, which utilizes the rotation of the helical axis in the U-groove to achieve the delivery of materials.
Also they can be used to density and conveying substances in other fields such as waste water sludge, coal, foodstuff, marl, flow-line production and baggage to substitute manual carry.
Feature:
1. Fully automatic electric protection can be co-controlled with Bar Rack Cleaner
2. Compact in structure, convenient installation with expansion bolts
3. Using wear-resisting materiel bars in trough, its examining and repairing is convenient
4. Closed running make the noise low and surroundings better
5. Its length , angle and discharging hopper can be manufactured according to customers requirements
6. The spiral blades are made of stainless steel and have big strength and good resistant to corrosion.
Datasheet:
Model Item | WLS-260 | WLS-300 | WLS-360 | WLS-420 | |
Rotation Speed (rpm) | 18(horizontal); >18(incline) | ||||
Capacity (m³/h) | 0° | 3 | 6 | 9.5 | 12 |
15° | 2.1 | 4.6 | 6.5 | 9 | |
30° | 1.3 | 2.6 | 4.3 | 5.7 | |
Screw diameter(mm) | 220 | 260 | 320 | 380 | |
Conveying length (m) | 6 | ||||
Power (reference) (kw) | 1.1 | 1.5 | 2.2 | 3 | |
Installation angle α | ≤20°( Special ordering 20°<α≤30°) |
This is custom made , it can be made according to your request.
Photos:
Structure:
Application:
Our Processing Strength:
we have high-pressure water jet cutter, laser cutting machine, hydraulic press brake, band saw machines, cnc machines, lathe machines, milling machine, etc. to make sure of the accuracy, fastness and stability of our products.
Our Certifications:
About us:
Jiangsu BOE Environmental Protection Technology Co., Ltd. (BOEEP), lying in the traditional Chinese famous city—Yangzhou, is a professional environmental protection equipment manufacturer and engineering service enterprise.
BOEEP started to set foot in the environmental protection industry from 1988 and is mainly engaged in research on biological wastewater treatment technology and industrialization application, research and development, manufacture and sales of competitive products and technology service, general contracting of environmental protection engineering including design, installation and commissioning, and etc.
Total 6 series and over 50 kinds of environmental protection equipment developed and manufactured by BOEEP cover sludge dewatering equipment, mechanical bar screens, dissolved air flotation equipment, sludge scrape and suck equipment, dosing and mixing equipment, and conveying and pressing equipment.
As a famous leading technology environmental protection equipment manufacturer and engineering service enterprise, BOEEP is committed to create value for employees, customers, suppliers, company, shareholders, and society, realize the sustainable development.
