Product Introduction:
BOEEP screw conveyor, which is designed according to standard of JB/T679-95 screw conveyor. The machine features high reliability, long lifetime, good applicability, convenience to install and maintain. The temperature of materials can reach up to 100 °C, the biggest dip angle can be up to 45°.The Screw Conveyor is a conveyor device, which utilizes the rotation of the helical axis in the U-groove to achieve the delivery of materials.
Also they can be used to density and conveying substances in other fields such as waste water sludge, coal, foodstuff, marl, flow-line production and baggage to substitute manual carry.
Feature:
- Fully automatic electric protection can be co-controlled with Bar Rack Cleaner
- Compact in structure, convenient installation with expansion bolts
- Using wear-resisting materiel bars in trough, its examining and repairing is convenient
- Closed running make the noise low and surroundings better
- Its length , angle and discharging hopper can be manufactured according to customers requirements
- The spiral blades are made of stainless steel and have big strength and good resistant to corrosion.
Datasheet:
|
Model Item |
WLS-260 |
WLS-300 |
WLS-360 |
WLS-420 |
|
Rotation Speed (rpm) |
18(horizontal); >18(incline) |
||||
Capacity (m³/h) |
0° |
3 |
6 |
9.5 |
12 |
15° |
2.1 |
4.6 |
6.5 |
9 |
|
30° |
1.3 |
2.6 |
4.3 |
5.7 |
|
Screw diameter(mm) |
220 |
260 |
320 |
380 |
|
Conveying length (m) |
6 |
||||
Power (reference) (kw) |
1.1 |
1.5 |
2.2 |
3 |
|
Installation angle α |
≤20°( Special ordering 20°<α≤30°) |
||||
This is custom made , it can be made according to your request.

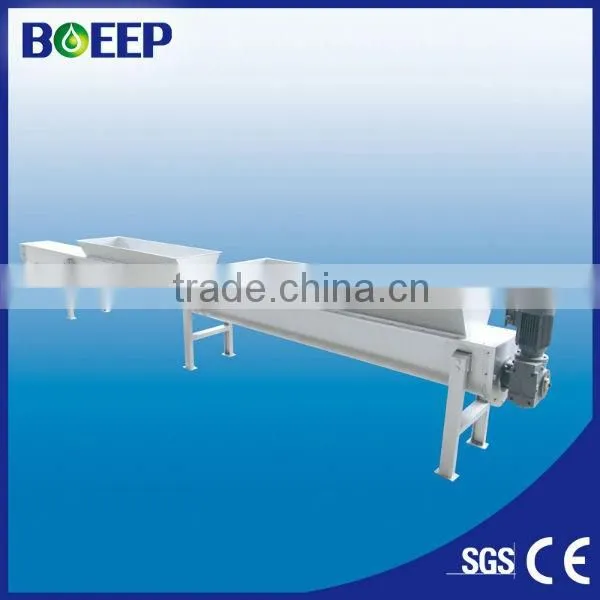

product photo:

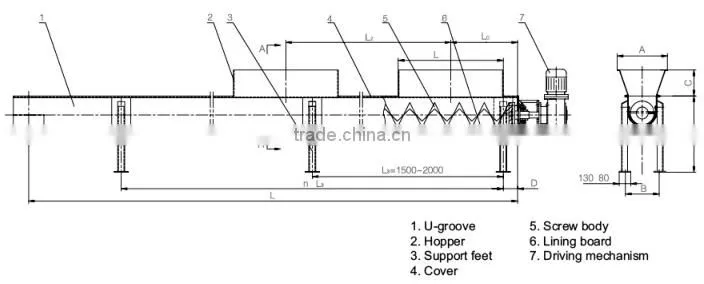

structure:
Product Application:

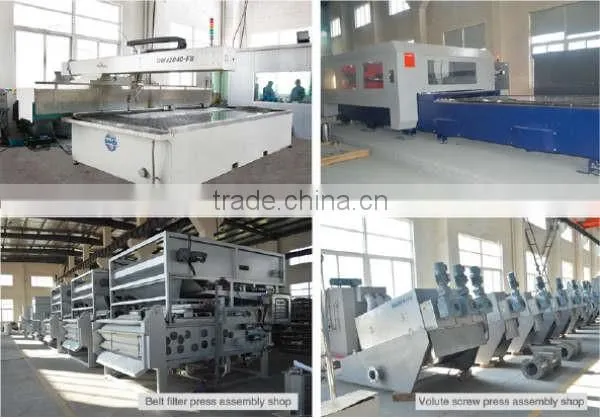

Our processing strength:
we have high-pressure water jet cutter, laser cutting machine, hydraulic press brake, band saw machines, cnc machines, lathe machines, milling machine, etc. to make sure of the accuracy, fastness and stability of our products.
Our Certifications:
