Roaty drum thickening belt filter press equipment for livestock wastewater

FOB Price

USD $20,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	BOEEP
Model Number	ZDY2.0

Product Description

ZDY-TypeDrum enrichment belt filter press dewatering machine: mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.

Features

1,Pneumatic cylinder sensor calibration system to control the filter cloth displacement principle of operation in a certain range.

2,Spring loaded tensioning device can adjust the tension according to the need to reduce the moisture content of the filter cake.

3,Continuous processing, and high efficiency.

4,Compact construction make the equipment suitable for narrow site

5,Operation and maintenance is easy with low labor costs.

6,Our company with professional environmental engineering background can standardized mass produce this kind of equipment.

Selection and dimension table

Type Dimensions		ZDY1.0	ZDY1.5	ZDY2.0	Note
Belt width(mm)		1000	1500	2000
Treatment capacity Inlet sludge concentration (SS1-5%)		6.5~10.5	12~20.5	18~30	Depending on the types of sludge
D.S Dried sludge(kgds/h)		98~158	180~308	240~450	Depending on the types of sludge
Moisture content of the filter cake(%)		75~85	75~85	75~85	Depending on the types of sludge
Service power(kw)	The motor for driving belt(frequency control)	0.37	0.75	0.75
	The motor for mixing	0.37	0.55	0.75
	The motor for drum thickener	0.37	0.55	0.55
RC Collecting Tray for Filtrate		With	With	Without

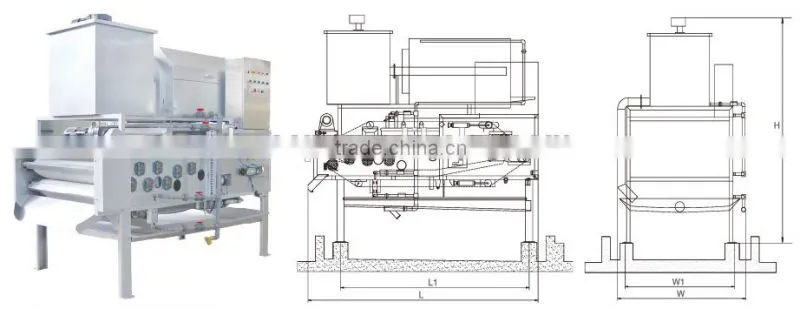

Reference appearance size(mm)	L	2600	3300	3450	Before ordering, please ask for the actual installation size drawing
	W	1550	2150	2900
	H	2540	2550	3100
Base dimension L1 x W1(mm)		2100 x1330	2450 x1860	2715 x2420
Reference weight (kg)		1210	2200	2850
