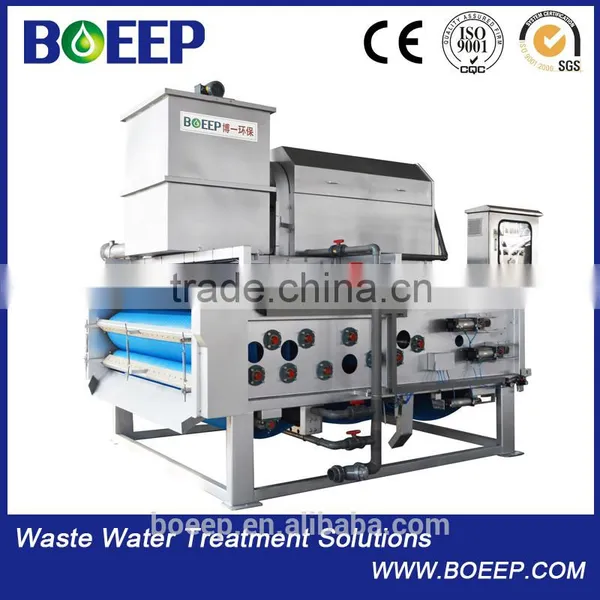

Drum enrichment belt filter press dewatering machine
- 10 Set / Sets per Month
- shanghai
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | BOEEP | |
Model Number | ZDY2.0 |
Product Description
Gravity Rotary Thickening belt filter press machine for sludge dewatering
Specifications:
1.automatic filter cloth washing
2.long life belt cloth
3.save energy
4.High capacity
Product Features :
1. Material of the main structure : SUS304/316
2. Belt : Has a long service life
3. Low power consumption, slow-speed of revolution and low noise,
4. Adjustment of belt: Pneumatic regulated, ensures the stability of the machine
5. Multi-point safety detection and emergency stop device:improve the operation.
6. The design of the system is obviously humanized and provides convenience in operation and maintenance.
Product Application:
1. Sludge dewatering of industry waste water
2. Separation of liquid and solid in food, chemical and mining industries
3. Sludge dewatering in butching and animal husbandry
Features:
1,Pneumatic cylinder sensor calibration system to control the filter cloth displacement principle of operation in a certain range.
2,Spring loaded tensioning device can adjust the tension according to the need to reduce the moisture content of the filter cake.
3,Continuous processing, and high efficiency.
4,Compact construction make the equipment suitable for narrow site
5,Operation and maintenance is easy with low labor costs.
6,Our company with professional environmental engineering background can standardized mass produce this kind of equipment.
Selection and dimension table
Type Dimensions | ZDY1.0 | ZDY1.5 | ZDY2.0 | Note | |
Belt width(mm) | 1000 | 1500 | 2000 |
| |
Treatment capacity Inlet sludge concentration (SS1-5%) | 6.5~10.5 | 12~20.5 | 18~30 | Depending on the types of sludge | |
D.S Dried sludge(kgds/h) | 98~158 | 180~308 | 240~450 | Depending on the types of sludge | |
Moisture content of the filter cake(%) | 75~85 | 75~85 | 75~85 | Depending on the types of sludge | |
Service power(kw) | The motor for driving belt(frequency control) | 0.37 | 0.75 | 0.75 |
|
The motor for mixing | 0.37 | 0.55 | 0.75 |
| |
The motor for drum thickener | 0.37 | 0.55 | 0.55 |
| |
RC Collecting Tray for Filtrate | With | With | Without |
| |
Reference appearance size(mm) | L | 2600 | 3300 | 3450 | Before ordering, please ask for the actual installation size drawing |
W | 1550 | 2150 | 2900 | ||
H | 2540 | 2550 | 3100 | ||
Base dimension L1 x W1(mm) | 2100 x1330 | 2450 x1860 | 2715 x2420 |
| |
Reference weight (kg) | 1210 | 2200 | 2850 |
|
Treatment Flowchart :
Project Site:
Our Dewatering Process
Scope of Work:
BOEEP evaluate all impending work to offer our clients the best possible cost effective solution.
Processing:
Our dewatering plants are stand alone units with associated equipment including power generating sets, automatic polymer mixing storage and dosing systems, pontoon mounted submersible mixers and feed pumps, cake conveyers and all interconnecting hoses and cables.
Our range of dewatering plants are capable of processing 20 – 85m3/h on most sludges. These plants can process up to 3.5 dry tones of biosolids per hour (17 wet tones), with a cake dryness of over 20% and separation efficiency of 99.98%
Biosolids Transport:
Processed biosolids are conveyed directly into various truck and trailer combinations for transport offsite to landfill or reuse options. All trucks comply with regulations for the transport of processed biosolids.
If you are interested in our product, contact me!
We will do our best to be of service for you !
