Product Details
Place of Origin | Guangdong, China | Brand Name | Pway | |
Model Number | DT206 |
Product Description
comprehensive protection system security extender
Product Introductions:

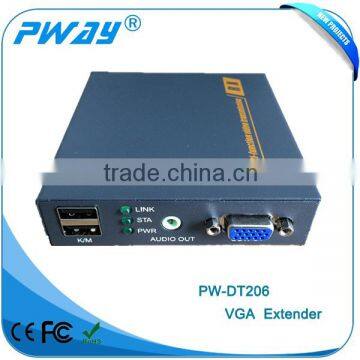

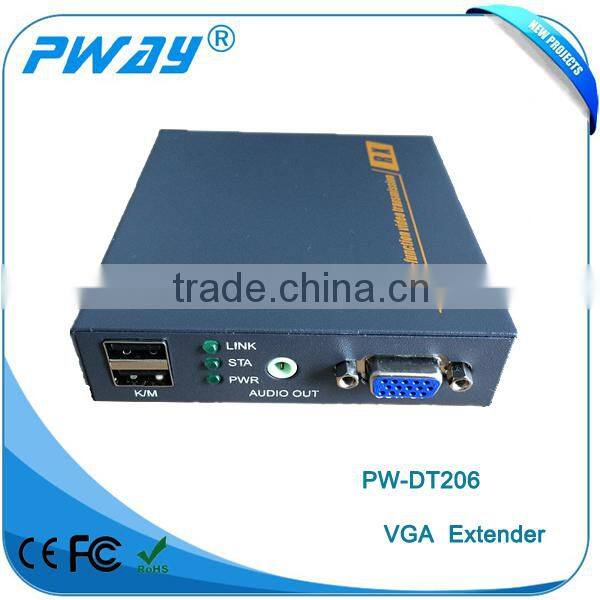

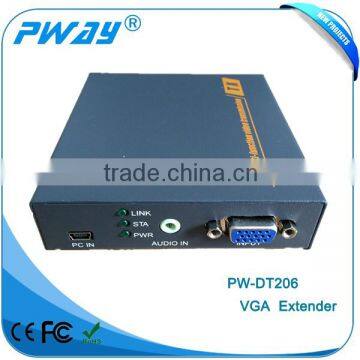

PW-DT206 Extender could transmission high-definition video long distance through a single cable ,external independent audio and other
functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that
the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA.
Specification of product :

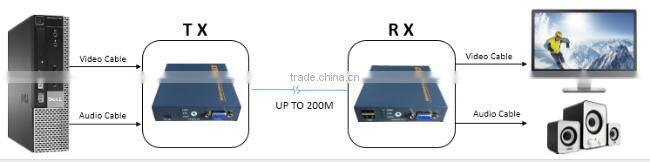

- Transmit VGA video and audio over long distances through the cat5e/6 up to 200 meters;
- The highest resolution HD video signals up to 1080P @ 60Hz;
- Compliance with VGA standard protocol;
- Support for external one-way analog stereo audio signal transmission;
- SupportUSB keyboard and mousetransmission;
- It can automatically identify and configure a variety of display modes;
- Built-in automatic equalization system, the picture is smooth, clear and stable;
- Built-in ESD Protection Circuit, comprehensive protection system security;
- Easy to install, plug and play, no need to set;
Parameter | Description | |
Video | Signal Type | VGA |
BW | 380MHz | |
Resolution | 1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps | |
Impedance | 75Ω | |
Audio | Port | 3.5mm Stereo audio socket |
Type | Stereo | |
K/M | PIN | USB |
Ethernet port | Cable Type | IEEE 568B |
Max transmission distance | Cat5e :150m,cat6 :200m | |
Other | Power | Adapter:DC 5V/2A |
Power dissipation | MAX 4W | |
Temperature | Operating:-5℃ ~ +70℃ | |
Humidity | Operating:5% ~ 90% | |
Size | 102*96*25mm | |
Warranty | 1 year |
Product Pictures display:
- If quantity is not very big (namely: sample trial order ), most of the items ordered will be sent within the next 2 or 3 working days after payment is confirmed.
- Items will be 100% checked by our professional inspector before shipping
- We will choose DHL ,UPS ,FeDex or other express way as agreed!
After-sales service |
If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
Customer service |
Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
Warranty : |
|
