Built-in ESD Protection Circuit VGA USB extender
Descpription

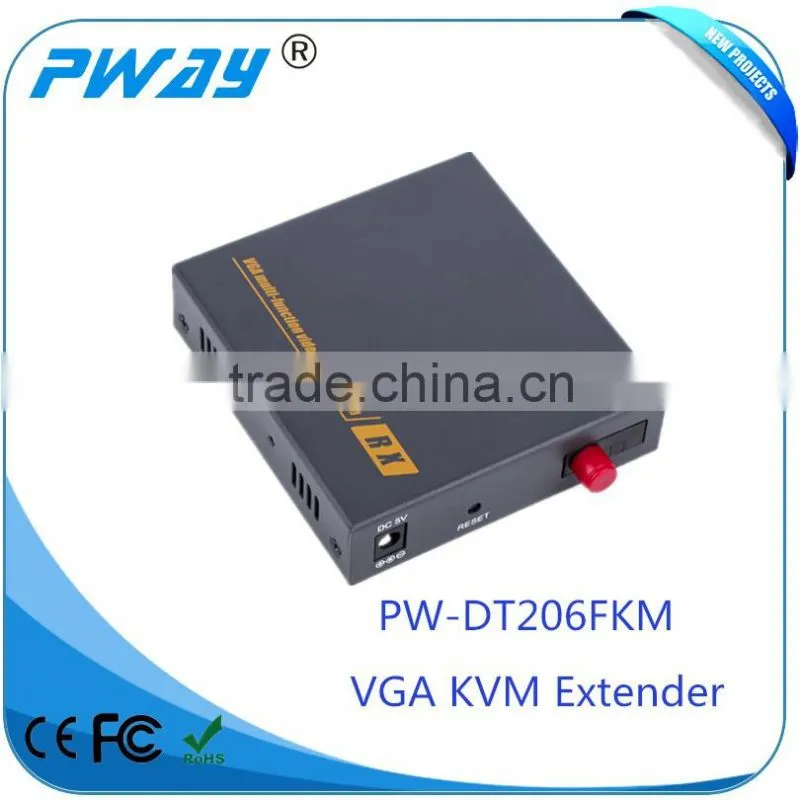

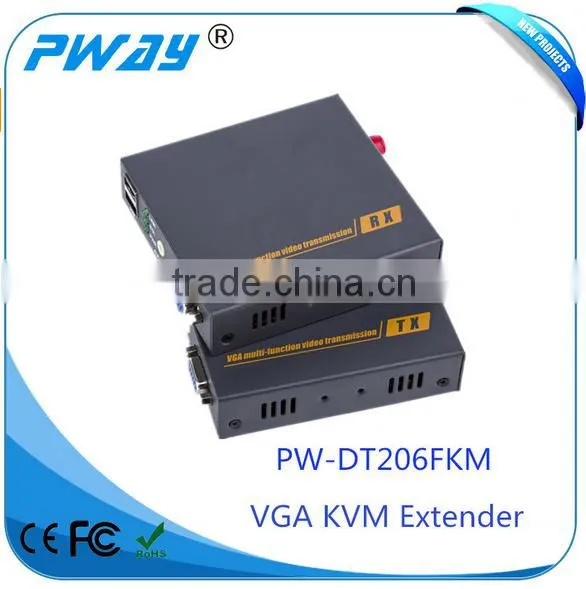

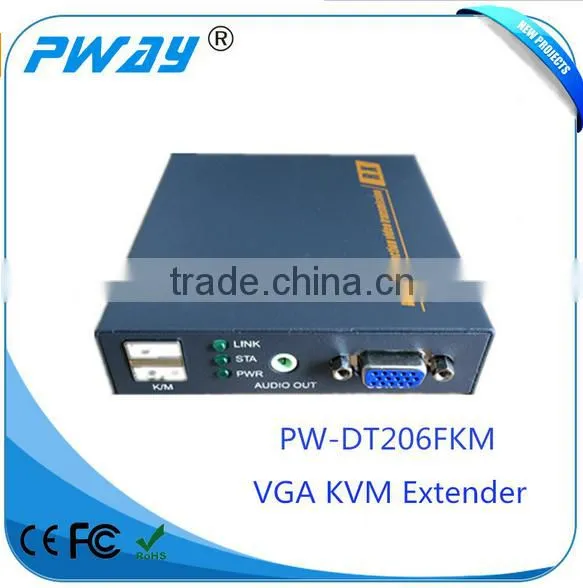

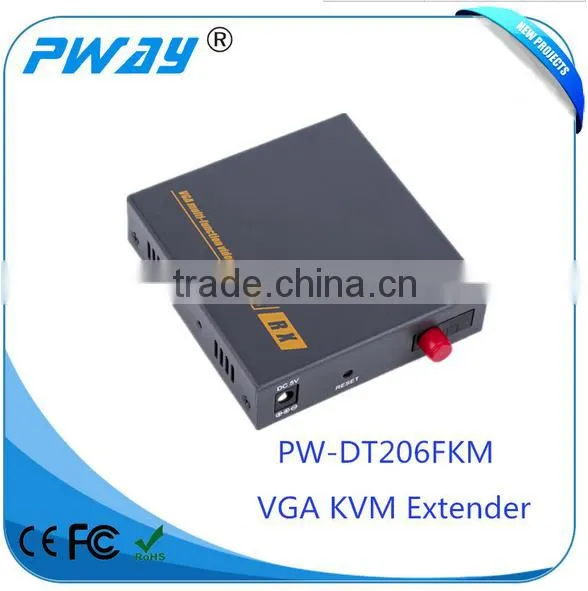

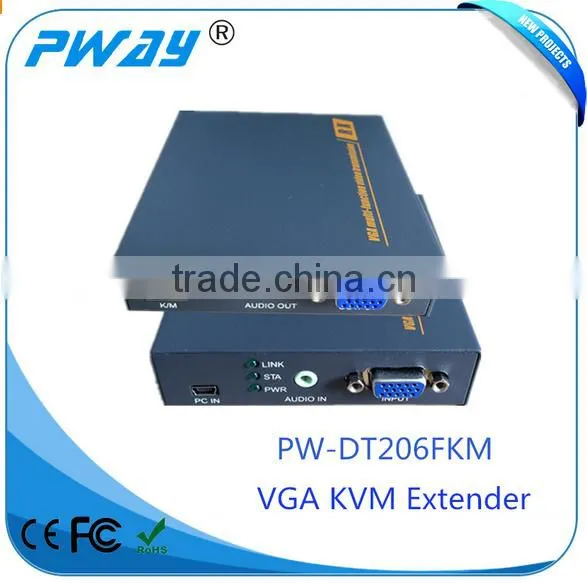

PW-DT206FKM Extender could transmission high-definition video long distance through fiber up to 20km , while support for USB keyboard and mouse transmission, external independent audio etc., can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
Features
- Transmit VGA video and audio over long distances over fiber, up to 20km;
- The highest resolution HD video signals up to 1920*1080 @ 60Hz;
- Compliance with VGA standard protocol;
- Support for external one-way analog stereo audio signal transmission;
- Support USB keyboard and mouse transmission;
- It can automatically identify and configure a variety of display modes;
- Built-in automatic equalization system, the picture is smooth, clear and stable;
- Built-in ESD Protection Circuit, comprehensive protection system security;
- Easy to install, plug and play, no need to set;
Parameter |
Description |
|
Video |
Signal Type |
VGA |
Frequency Bandwidth |
380MHz |
|
Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
Impedance |
75Ω |
|
Audio |
Interface |
3.5mm Earphone Seat |
Signal Type |
Stereo |
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
Optical Fiber |
Interface |
LC Connector |
Fiber Type |
Single/multi-mode Single Fiber |
|
Wavelength |
Single-mode 1310nm/1510nm |
|
Interface Bandwidth |
155Mbps |
|
Transmission Distance |
Standard: 20km |
|
Other |
Power Supply |
The power adapter: DC 5V/2A |
Power Dissipation |
Max: 6W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension |
102*96*25mm |
|
The Warranty |
1 Year Free Warranty |
|

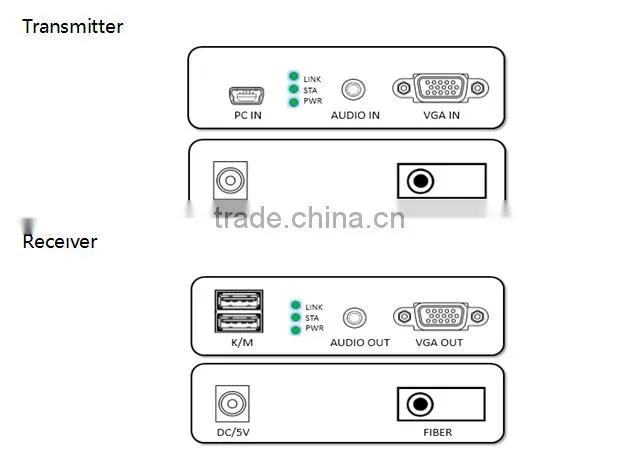

Port Name |
Function |
VGA IN/OUT |
VGA signal input/output |
AUDIO IN/OUT |
Stereo audio input/output |
PC IN |
Host keyboard mouse signal connection |
K/M |
USB Keyboard mouse interfaces |
DC/5V |
The power adapter input |
Fiber |
FC fiber interface |
LED indicator |
Description |
LINK |
Connect light |
STA |
Communications equipment indicator light |
PWR |
System power indicator |
Installation
- The VGA signal source access VGA Extender transmitter,
- Stereo audio access VGA Extender transmitter,
- Use Mini USB cable to the computer and the VGA extender sending end.
- The receiving end VGA Extender connected to a display device (such as
- high-definition TV, splicing screen, etc.),
- The VGA extender output audio access receiving end audio equipment,
- The USB keyboard and mouse access VGA Extender receiving end,
- Use network cable to connect the sender and receiver of the Ethernet port,
- The sender and the receiving end on the power, when the lights are on, the system runnin
|
Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
|
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. |
|
|
Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |
|
Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. |
|
|
Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
Our Services
After-sales service |
If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
Customer service |
Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
About shipping |
|
DHL , UPS , TNT , Fedex : Process time + shipping time take 2-6 days to most of countries if without custom clearance problem , but might meet custom duty . Shiping by DHL, EMS, FEDEX, UPS , TNT , AIR CARGO, SEA CARGO, CONTAINER etc according to specific order with standard packaging.
|
Thank you very much for using our products.
The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
Free maintain won’t be given under the following circumstance:
- The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
- The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
- The product malfunction caused by not in accordance with the user manual operation;
- The malfunction and damaged caused by the other barriers(man-made factors or external device);
Any problems in the after-sales service, please contact us directly.
