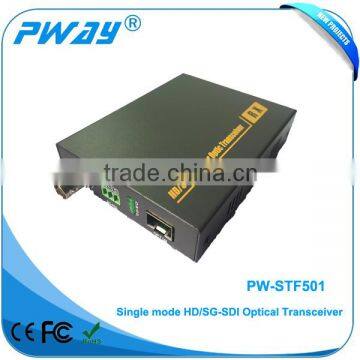

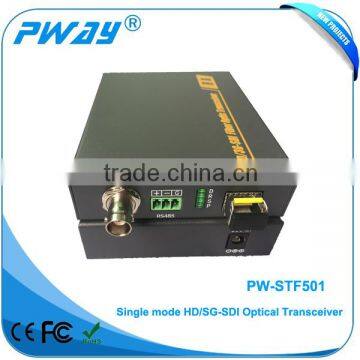

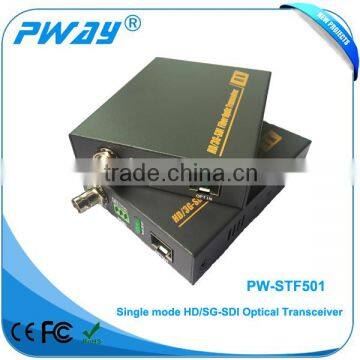

1080p signal HD/SD/3G-SDI video Optical transmitter hd sdi to fiber optic
Introduction
It is a HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.
Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of transmitter and receiver: transmitter convert SDI signal to optical signal; receiver convert optical signal to SDI signal and output.
Features
- HD-SDI video and audio transmission
- Automatic dopt to rate SDI 270Mbps, 1.485Gbit,2.97bit
- Support 2 ways reverse RS485 data control.
- Built in equilizer,reclocker,cable driver
- Pathological test
- Support OEM
Parameter
| Description | |
Video
| connector | BNC female joint |
The interface bandwidth | 1.4835Gbps,1.485Gbps,2.967Gbps,2.97Gbps | |
impedance | 75Ω | |
Resolution | 1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz; 1280*720P@50Hz; 525i; 625i | |
RS485
| connector | Industrial terminals |
Baud rate | Support various rate | |
Optical fiber | connector | LC |
type | Single-mode | |
Wavelength | Single-mode 1310nm | |
bandwidth | 2.97Gbps | |
Transmission distance | Single-mode:5/20/40/80km | |
Other | Power | Power adapter:DC 5V/2A |
Power dissipation | MAX 2.5W | |
Temperature | -5℃ ~ +70℃ | |
Humidity | 5% ~ 90% | |
Size | 120mmX97.5mmX25.2mm | |
Warranty | 1 year | |
Application Diagram
If this product cannot meet your demand. Pls click on the image as below to browse more our main products. Hope you can find the one as you want.
More products:
____________ Factory ____________
| | Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. | |
| | Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |
Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. | |
| | Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
Where is your factory ? Can I have a visit ?
Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen in CHINA.
Can I buy samples from your company?
We can provide samples .Contact me to talk about the details please.
How about the payment terms?
We accept T/T, western union......
What is the after-sales service?
One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.
Are you manufacturer or trading company?
We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.
If you are not clear about how to use the products?
Each of your products with a manual, you can read it or you may consult us.
How long could I get reply of my inquiry?
You will get a reply within 24 hours.
How does your factory do regarding quality control?
Quality is a priority . Pwaytek people always attached great importance to quality controlling from start to finish.
