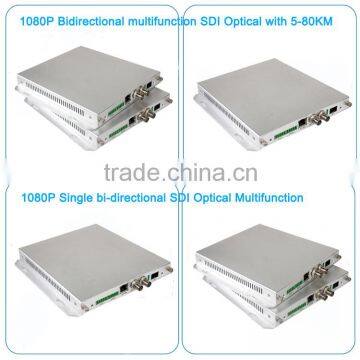

1080P 2 Channel Bi-directional HD-SDI fiber optical transceiver with Bi-directional RS485 with Bi-direcitonal Audio

Name: 1080P 2 Channel Bi-directional HD-SDI fiber optical transceiver with Bi-directional RS485 with Bi-direcitonal Audio
Brand: Pway
Price: Negotiable

FOB Price

Negotiable / Pair

1 Pair(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Pway

Model Number:

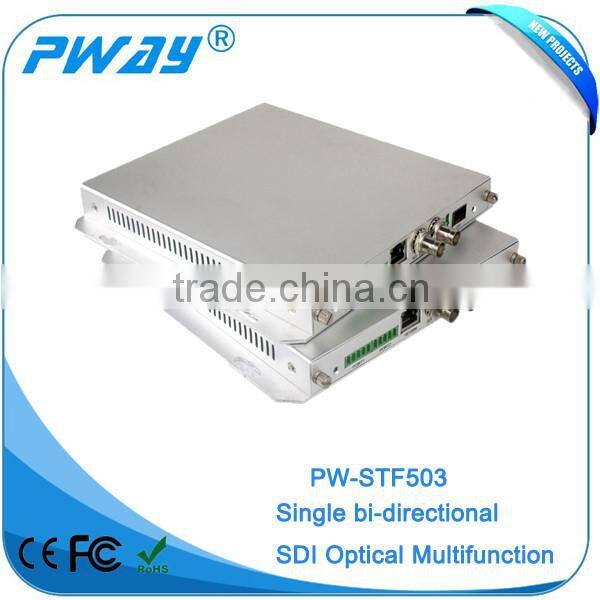

PW-STF503

Product Description

1080P 2 Channel Bi-directional HD-SDI fiber optical transceiver with Bi-directional RS485 with Bi-direcitonal Audio

Product Description

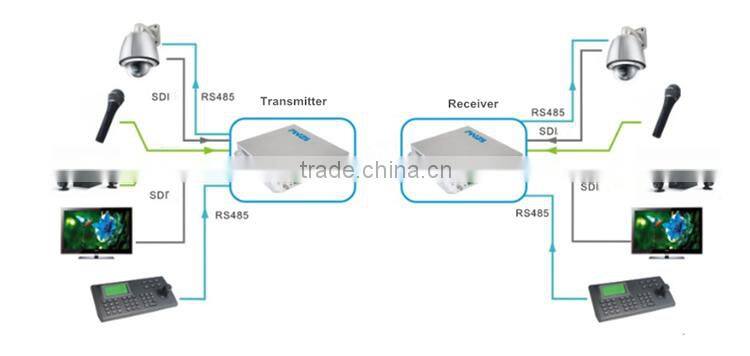

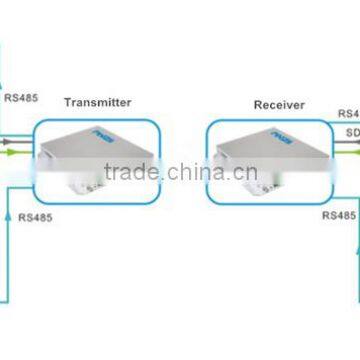

Single two-way multifunction HD SDI Digital Optical uses advanced uncompressed digital HD video and high-speed digital two-way optical transmission technology,Optical transceiver can be transmitted on the optical fiber one 1-80 kilometers of road

HD SDI digital signals and audio with 485 control signal into an optical signal and then at the other end into an electrical signal

recovery,and two-way network with 100m ,by data transmission network .Optical properties of the series of stable,clear picture

quality,high stability, and with LED status indicator to visually observe the working status of Optical.

Feature

HD-SDI single bidirectional high definition digital video fiber optic transmission
two-way advieo optical fiber transmission
Optical fiber transmission network with 100m
RS485 bidirectional optical transmission
Adaptive SDI 270Mbps, 1.485Gbit rate
Built-in cable equalizer Equalizer, clock regeneration cable Reclocker and cable driver Cable Driver
By Pathological Test
Hot-swappable SFP optical module
Support for user customization and OEM

Specification

Parameter		Description
Video	connector	BNC
	The interface bandwidth	1.485Gbps
	impedance	75Ω
	Resolution	19201080@30Hz; 19201080@25Hz; 19201080@24Hz; 1280720@60Hz;1280*720@50Hz; 525i; 625i
RS485	connector	Industrial terminals
RS485	Audio Format	48K
Optical fiber	connector	LC/SC
	type	Single-mode
	Wavelength	Single-mode 1310nm
	bandwidth	2.97Gbps
	Transmission distance	Single-mode:5/20/40/60/80km
Other	Power	Power adapter:DC 5V/2A
	Power dissipation	MAX 4.5W
	Temperature	-5℃ ~ +70℃
	Humidity	5% ~ 90%
	Size	208mmX208.4mmX25.5mm
	Warranty	1 year

Packaging & Shipping

If quantity is not very big (namely: sample trial order ), most of the items ordered will be sent within the next 2 or 3 working days after payment is confirmed.
Items will be 100% checked by our professional inspector before shipping
We will choose DHL ,UPS ,FeDex or other express way as agreed!

Our Services

After-sales service

If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time.

Customer service

Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication.

Warranty :

The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
Free maintain won’t be given under the following circumstance:

The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
The product malfunction caused by not in accordance with the user manual operation;
The malfunction and damaged caused by the other barriers(man-made factors or external device);
Any problems in the after-sales service, please contact us directly.

Other products:

If this product can not meet your demand.Pls click on the image as below to browse more.Hope you can find the one as you want.

FAQ

Where is your factory ? Can I have a visit ?

Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen in CHINA.

Can I buy samples from your company?

We can provide samples .Contact me to talk about the details please.

How about the payment terms?

We accept T/T, western union......

What is the after-sales service?

One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.

Are you manufacturer or trading company?

We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.

If you are not clear about how to use the products?

Each of your products with a manual, you can read it or you may consult us.

How long could I get reply of my inquiry?

You will get a reply within 24 hours.

How does your factory do regarding quality control?

Quality is a priority . Pwaytek people always attached great importance to quality controlling from start to finish.
