Place of Origin Guangdong, China
Brand Name PWAY
Model Number PW-DT211W

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

Product Description



This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz/5GHz band, with very low latency.

It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

Features

  • Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
  • Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
  • Support IR remote control function to control source device content from long distance
  • Transmitter have one local loop out.
  • Low latency <200ms
  • Effective Range: 50m ( Line of sight )
  • No cable between sender (TX) and receiver (RX)
  • Easy and clean installation
  • Plug & Play – full hardware design, no software is required

Note:

  • Transmission distance will be different due to the environment
  • Wall, brick or glass will shorten the signal cover range or cause big signal loss
Specification



Parameter

Description

Video

Standard Protocol

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz

Connector

HDMI-A

Impedance

100Ω

Compress Formats

H.264

IR

Interface

3.5mm earphone seat

Signal direction

Unidirectional

IR frequency

38kHz

WIFI

Frequency

2.4GHz/5GHz

Transmission distance

50m

Wireless Standard

802.11AC

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension



The warranty

1 year free warranty

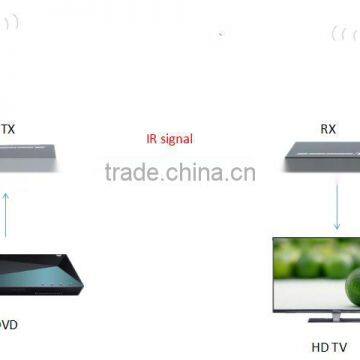

Application

 5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

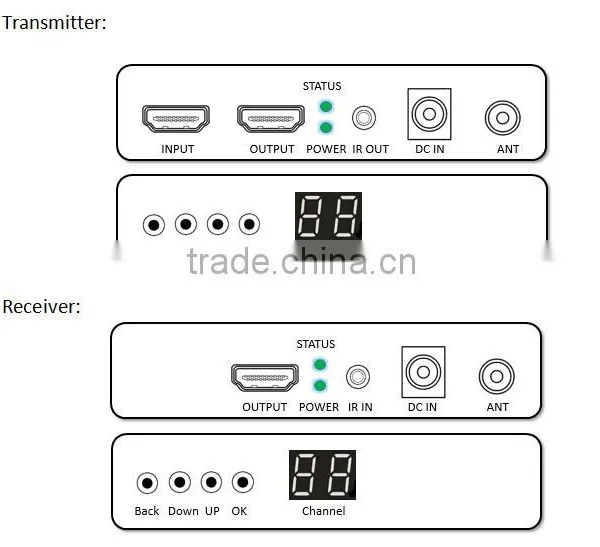

Detailed Images









Packaging & Shipping

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

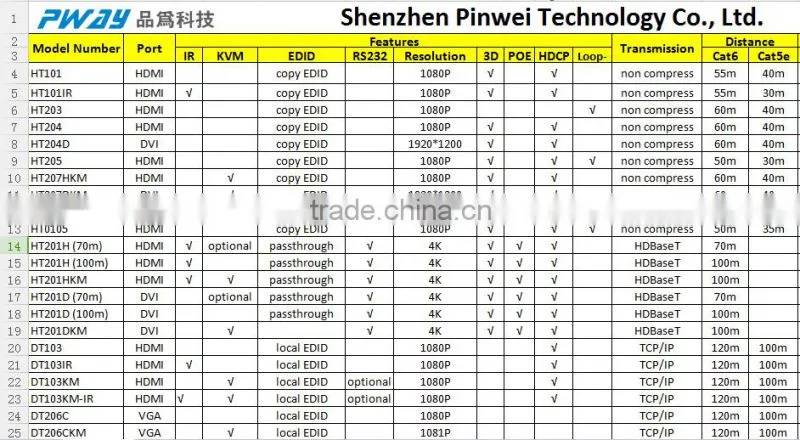

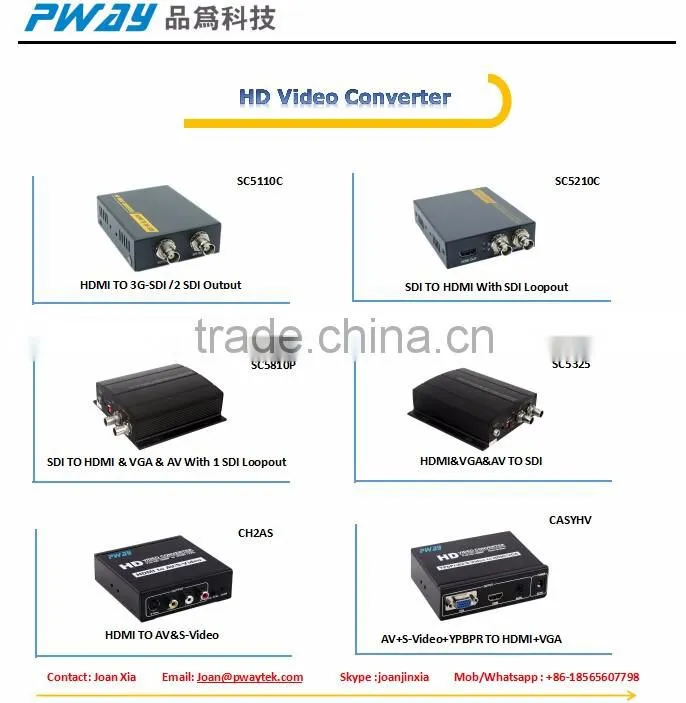

Related Products

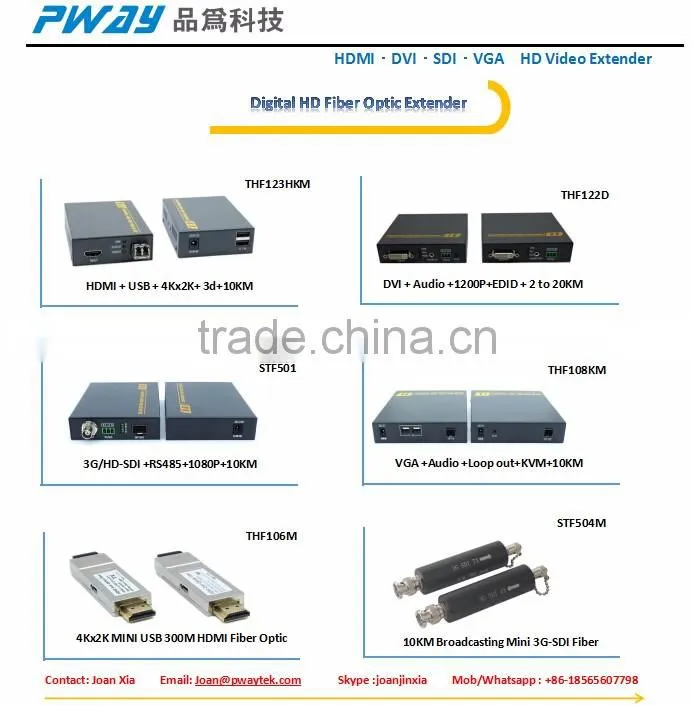

If this fiber optic extender cannot meet your demand.

Pls click on the image as below to browse more our main products.

Hope you can find the one as you want.

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

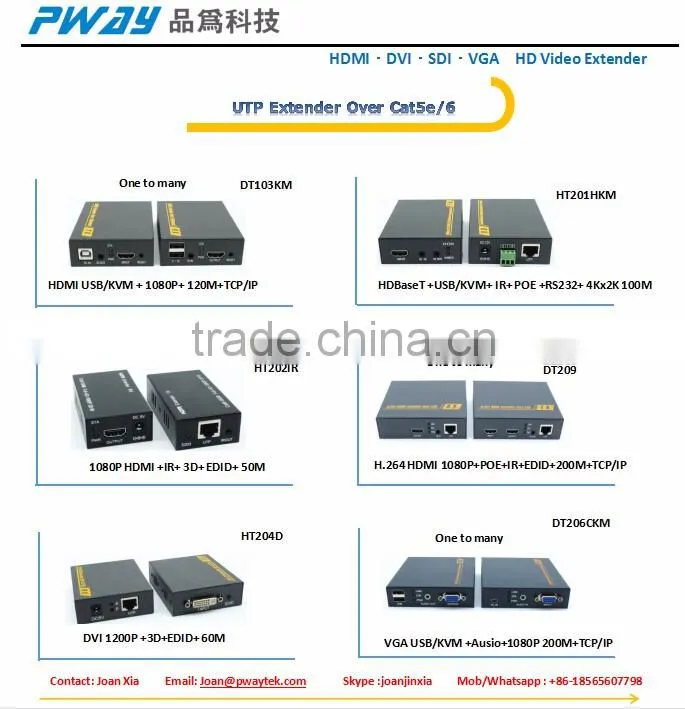

Here is our hot sale EXTENDER OVER CAT5E/6, good  evaluation and feedback by clients, if you are interesting , please add my Skype:  joanjinxia

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

Company Information

 ____________ Factory Advantage  ____________

5.8g wireless hdmi transmitter and receiver with H.264 and IR function support loop out

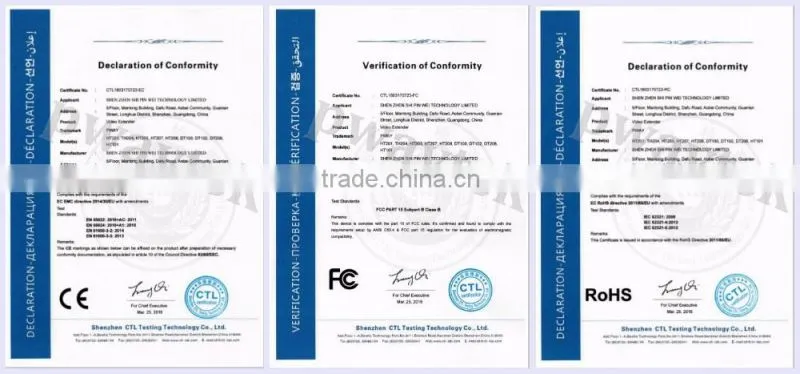

Certifications







After-sales service

If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time.
Customer service
 your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication.
About shipping
DHL , UPS , TNT , Fedex : Process time + shipping time take 2-6  days to most of countries if without custom clearance problem , but might meet custom duty . Shiping by DHL, EMS, FEDEX, UPS , TNT , AIR CARGO, SEA CARGO, CONTAINER etc according to specific order with standard packaging.
