Hot sale 2-10KM HDMI over Fiber Extender KVM& Mini USB with RS232/ Audio up to 1080P@60Hz
Product Introductions

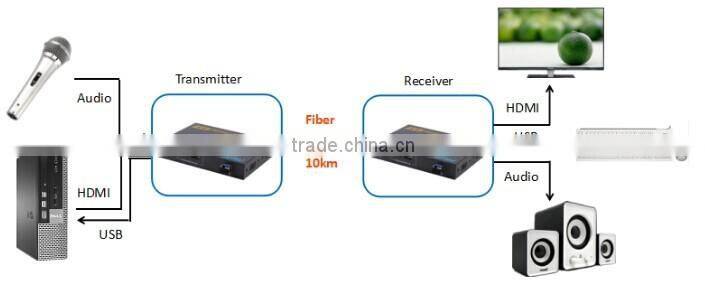

The PW-THF109HKM Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
- Transmits HDMI video signals up to 10km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support keyboard and mouse signal transmission;
- Support external stereo audio unidirectional transmission;
- Support RS232 signal unidirectional transmission, baud rate self-adaptive;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;

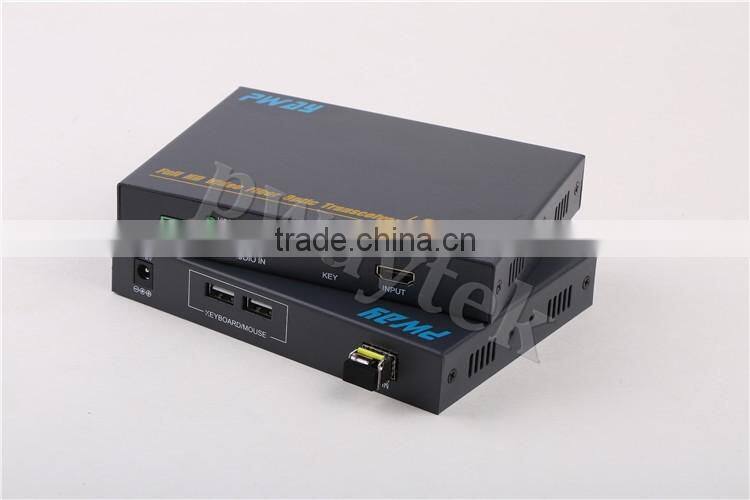

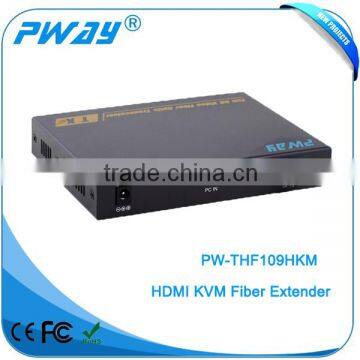

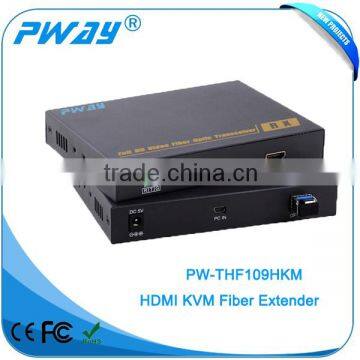

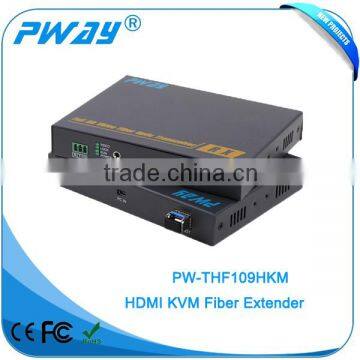

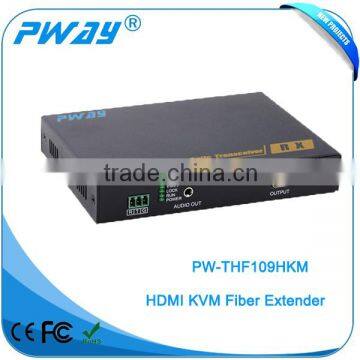

Pictures
Specification
Video | Standards | HDMI 1.3 version, HDCP 1.2 version |
Maximum Pixel Clock | 165MHz | |
Maximum Data Rate | 6.75Gbps | |
Resolution | 1080P@24/25/30/50/60Hz, 1080i@50/60Hz, 720P@50/60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Audio | Interface | 3.5mm Earphone Seat |
Signal Type | Stereo | |
K/M | Interface | PC: MINI-USB Keyboard And Mouse: USB-A |
RS232 | Interface | Industrial terminal |
Signal Direction | Bidirectional | |
Baud Rate | Self-adaptive, Max:115200bps | |
Data Bits | 8 | |
Optical Fiber | Interface | LC Connector |
Fiber Type | Single-mode Single Fiber | |
Wavelength | Single-mode 1310nm | |
Interface Bandwidth | 2.97Gbps | |
Transmission Distance | Standard: 10km | |
Other | Power Supply | The Power Adapter: DC 5V/2A |
Power Dissipation | Max: 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 152*114*25mm | |
The Warranty | 1 Year Free Warranty |

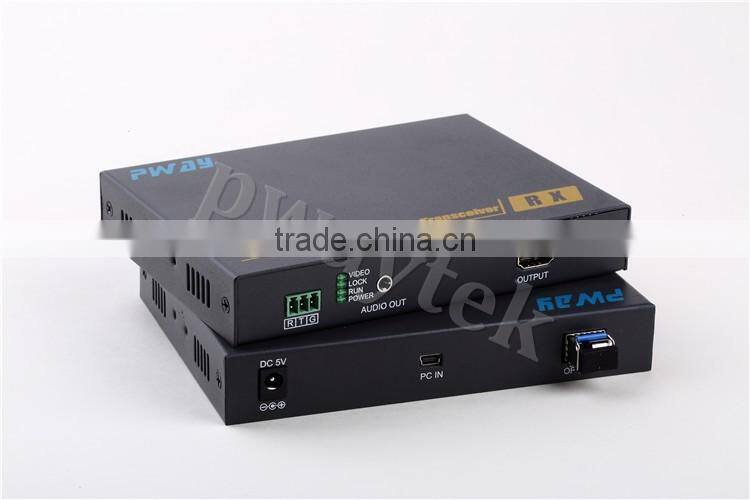

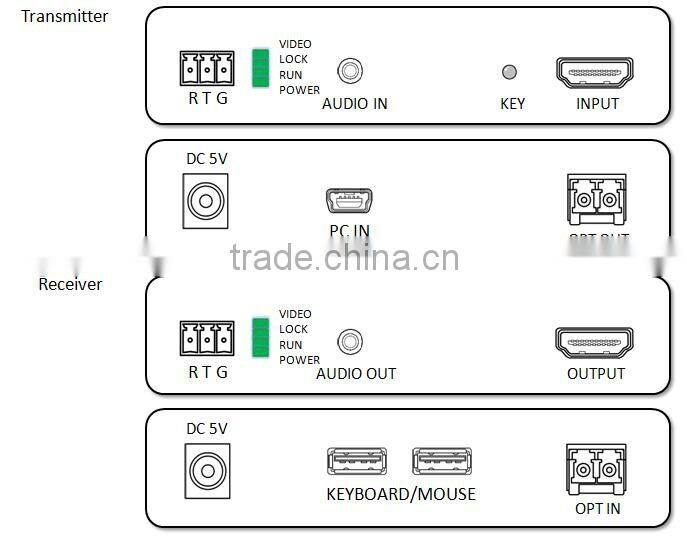

Panel
