Pinwei PW-HT207HKM 197ft/60m HDMI Extender Over single-wire CAT5e/6 IR remote control support HDTV 1080P 3D
Product Introductions:
The PW-HT207 extender provides extension of HDMI signals long distances over a single CAT6 cable , it supports high resolution up to 1080p and keyboard/mouse signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specification of product :
- Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
- Support video resolution up to 1920*1080@60Hz, 3D signal;
- Support keyboard and mouse signal transmission;
- Support copy EDID function, can match many kind display device;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
USB | Interface | To PC: standard MINI-USB or PS2 To K/M: standard USB, PS2 optional |
USB Signal | HID Signal | |
UTP | Interface | RJ45 |
Transmission distance | CAT6-60m | |
Other | Power supply | The power adapter: DC 5V/1A |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 94.5*71*26mm | |
The warranty | 1 year free warranty | |

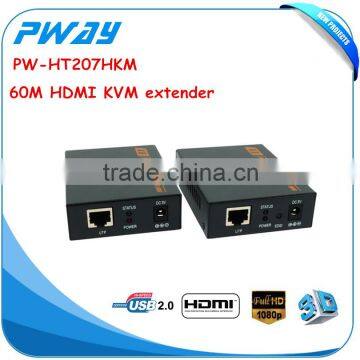

Product Pictures display:
we are a company specializing in wireless, networking, video product development, production, sales and service. It is the high-tech enterprises. We have professional R & D team and wireless, networking, video products engineers with years of experience in the field. If this product can not meet your demand.Pls click on the image as below to browse more.
____________ Factory Advantage ____________
| Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. | |
| Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |
Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. | |
| Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
Step 1: Packed in carton .
Step 2: Small package via courier/Air way, like DHL, FEDEX, UPS, TNT . Others transport by Sea, such as bulk order with heavy and big volume.
| After-sales service |
| If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
| Customer service |
| Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
| Warranty : |
|

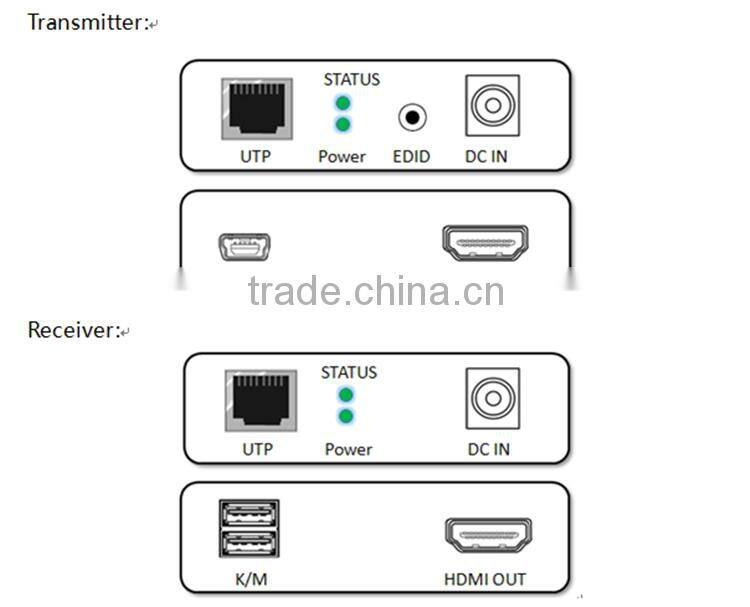

Panel:
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
UTP | RJ45 port connect cat5e/6. |
PC IN | Mini USB cable connect to PC |
K/M | connect to keyboard and mouse |
DC IN | Power adapter socket |
LED indicator | Description |
PWR | System power indicator |
STATUS | Video signal indicator. Copy EDID indicator |
