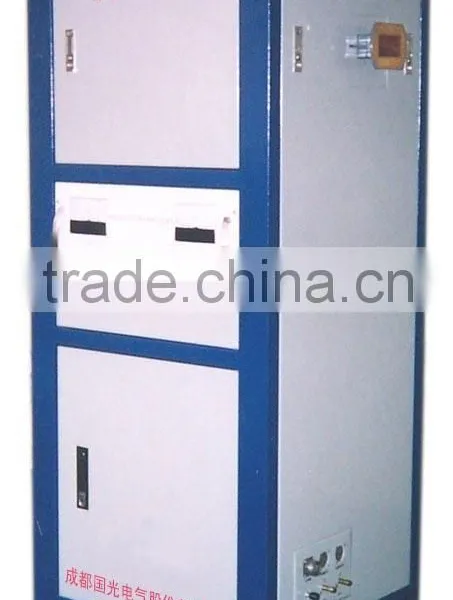

Help CenterWY5000.2-3 Microwave Power Source
Related Products
Specifications
WY5000.2-3 microwave power source adopt the continuous wave magnetron CK625(YJ1600) as its microwave generator. It is equipped;WY5000.2-3 microwave generator adopt the continuous wave magnetron CK625(YJ1600) as its microwave generator. It is equipped with an electric control system, which is an integration of digital circuit, analog circuit and the comprehensive microwave transmission system (including the large power circulator, reflective power absorption load, and Electro-motivated stub tuner.) It has advantages as high stability of output, which enables it to be the first option for microwave applications in industry and laboratory.
I. Features
Close-loop adjustment system ensures the stable microwave output in the case of the variation of the main power supply , load and temperature of the magnetron.
The output power can be continuously adjusted manually.
The built-in high power isolator enables the microwave oven suitable for high VSWR load.
The motorized tuner and the reflected power monitoring circuit enable direct tuning of the match conditions.
The dynamic power control circuit of the filament enables longer service life of the magnetron by adjusting the power supply of the filament automatically during operation.
The auto monitoring interlock circuit enables reliable operation by protecting and displaying the states of the main power, cooling water, magnetron, waveguide system, etc.
2. General specifications
Power source: 380VAC +/-10%, 50Hz, 3 phase 4 wires 30A
Power consumption: <9kVA (at full power output)
Frequency: 2450-2470 MHz
Output power: 5 kW (measured at the output transit)
Adjust range: 0.5kW-5kW (continuously)
Stability: output power variation of < +-1% (at 5kW output ) during power source variation of +-10%
VSWR tuning range: > 20
VSWR allowable: 40max
Cooling water: >5 l/min. water-pressure 2kg/cm2
Equipment volume: 650*610-1730mm
Weight of the equipment: 270kgs
The distance of the end of waveguide from ground: 1310-1410mm adjustable
Waveguide: WR340, FD26 flange
Microwave leak: comply with the Chinas national standard GB10436-89.
