Help Center2450MHz Programmable Control Microwave Power Source
Related Products
Specifications
GMG 2450MHz Series Programmable Control Microwave Power Generator from 1kW to 10kW;GMG 1kW-3kW/2450MHz Series Programmable Control Microwave Power Source
Application and Features:
-Specifically designed for microwave plasma, ECR source and other high-tech scientific research and industrial application.
-The magnetron with magnet and sub-coil, water cooling and advanced feedback control offers adjustable output power from 150w to 1500w with low ripple and precisely regulation by programmable controlling conveniently and reliably.
-The calibrated digital display for output power, reflected power and setting time.

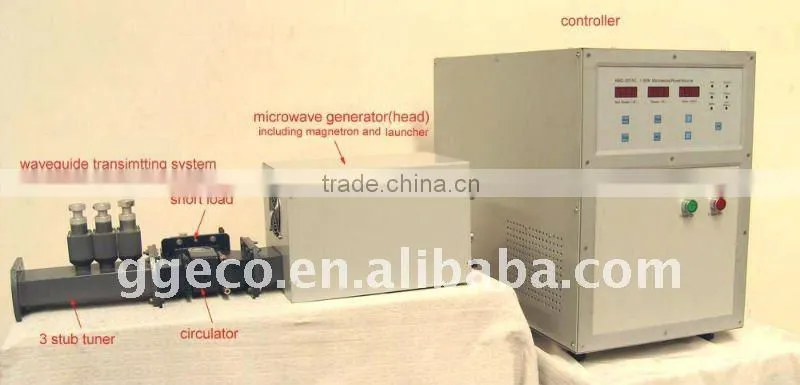

-Remote power head and control included for customer convenience.
-With easy button control and perfect interlock system, it offers optimum operating and reliability.
As low ripple high-stable programmable control (PLC) microwave power sources, we can offer a series of power from 1.0kW, 1.5kW, 2kW, 3kW, which the specification list shown as follows: (waveguide transmitting system belong to options )
Specification | ||||||||
Type: |
GMG-2010 |
GMG-2015 |
GMG-2030 |
GMG-2050 |
GMG-2100 |
|||
Frequency |
2450MHz ± 50MHz |
|||||||
Power Output |
0.11kw |
0.11.5kw |
0.33kw |
0.55kw |
0.510kw |
|||
Stability |
±1%at the specific power level |
|||||||
|
Power Consumption |
2kw |
3kw |
5kw |
8kw |
15kw |
|||
Power Supply |
380VAC ± 3%/50MHz 3 phase 4 lines |
|||||||
Cooling Water |
3 L/min |
4 L/min |
4 L/min |
5 L/min |
<8L>/min |
|||
Waveguide |
WR-340 FD-340 Flange |
WR-430 FD-430 Flange |
||||||
|

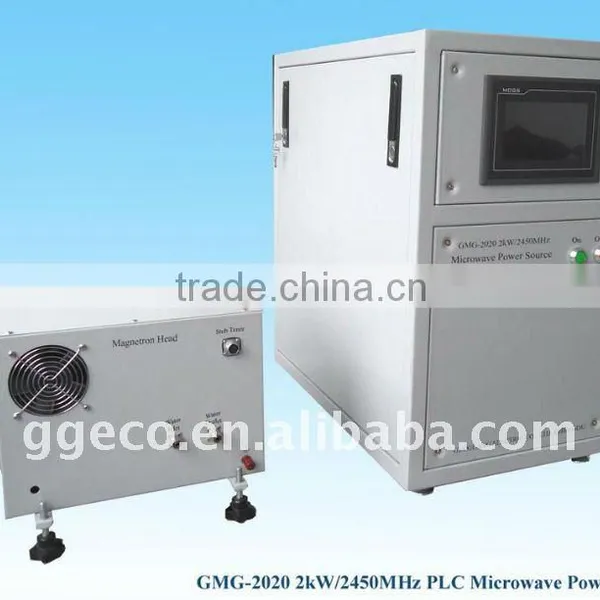

Magnetron Head |
Outside |
Inside |
||||||
Leakage |
< 5mW/cm2 ( IEC Standard ) |
|||||||

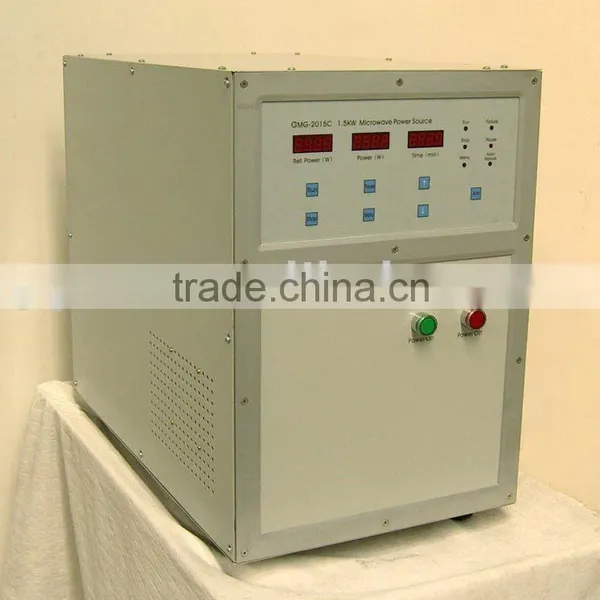

The Data for 1.5kW/2450MHz Source:
Specification | |
Operation frequency |
2450MHz ± 50MHz |
Rated power output |
150 ~ 1500W with digital display |
Output stability |
±1% at the full output |
Output ripple |
< 2% |
AC power supply |
380VAC± 5%, 50Hz, 3kW |
Output waveguide |
BJ-26 (WR340), FD-26 ( CPR340 F) |
Cooling water |
4L/min |
Size of controlled box |
750 (L)x 500 (W)x 650(H) (mm) |
Microwave leakage |
International standard (IEC). |
Size of magnetron head |
350 (L) x 340 (W) x 280 (H) (mm ) |
Weight |
70 kg |
