Help CenterWY1500.2-1G Microwave Power Source
Related Products
Specifications
Guoguang microwave power sources are utilized in laboratories and production plants for heating, curing, drying, sintering.Guoguang microwave power supply are utilized in laboratories and production plants for heating, curing, drying, sintering, etching and deposition in rubber, food, ceramic, semiconductor, photoelectric fiber rod, liquid, chemicals, tobacco and other applications.
There are four kinds of sources available at 2. 45ghz: 1. 5kw, 2kW, 3kW and 5kW. These sources have three kinds of assemblies: a. Generator; b. Generator + Isolator and tuner; c. Generator + Isolator and tuner + Remote programmable controller. A full complement of waveguide components are also available for both 2. 45ghz and 915MHz sources. The standard waveguide is WR340 (UG554 / U) for 2. 45ghz sources, but WR284 or WR430 adaptors are available; WR975 for 915MHz sources. A full range of power levels of CW magnetrons are available for microwave generators: 0. 9kw, 1. 7kw, 2kW, 3kW and 6kW for 2. 45ghz; 5kW and 20kW for 915MHz.

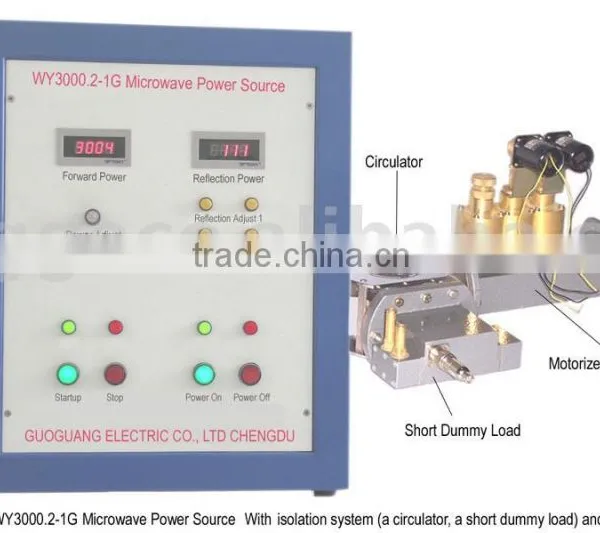

WY1500.2-1G, WY2000.2-1G and WY3000.2-1G Microwave Power Sources are compact low ripple and high stability microwave power sources with digital display, suitable for plasma application in laboratories and industrial facilities. Remote circulator, tuner and short dummy load are available upon request.
Frequency: 2450MHz +- 15MHz
Output power: 0.15-1.5kW for WY1500.2-1G
0.20-2.0kW for WY2000.2-1G
0.30-3.0kW for WY3000.2-1G
Waveguide: WR340, WR284 or WR430 adaptor available
Output conncetor: UG554/U, or as required
Ripple: 1% at full output
Cooling water: > 5 l/min
Main power: 380VAC, 50/60Hz, 3phase, 4wire; or 220VAC 50/60Hz 1phase
Dimensions: 500*700*600mm
Weight: about 50kgs
