Home > Products > Paper Tube Forming Machine > UNI-150C Auto Paper Tube Curling Machine

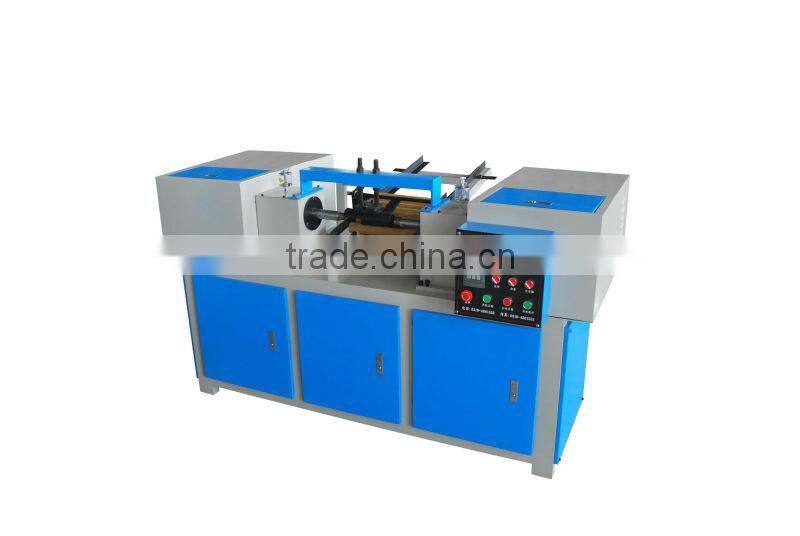

UNI-150C Auto Paper Tube Curling Machine
Negotiable
/ Set
1 Set(Min. Order)
- tianjin
You May Like
-
UNI-JQ High Quality Paper Tube Reutting Machine With High Quality
-
UNI-150C Auto Paper Tube Curling Machine With High Speed
-
UNI-JQ High Quality Paper Tube Cutting Machine
-
UNI-150C Paper Tube Curling Machine
-
UNI-150C Auto Paper Tube Bending Machine With High Speed
-
UNI-150C Auto Paper Core Bending Machine With High Speed
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Hebei, China | |
| Brand Name | unipand | Model Number | UNI-150C | |
| Voltage | 3800V,3phase,4wire | Power(W) | 2.2KW.3.0KW | |
| Dimension(L*W*H) | 1200*1900*1100 mm | Weight | 1500kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
UNI-150C Auto Paper Tube Finishing Machine1.Tube Length:130-300mm
2.Productive Speed: 15-55 tubes/min
3.Diameter: 30-60
UNI-150c Auto Paper Tube Finishing Machine Main Specification and Equipment:
Parameter
| tube length | 130-300mm | tube diameter | 30-60mm |
| productive speed | 0-55tubes/min | way of feeding | pneumatic |
| governor control | PLC man-machine interface | operator | 1 |
| air pressure | 0.2-0.6MPa | power supply | 3800V,3phase,4wire |
| power | 5.2KW |
Size (mm)
| mainframe(L*W*H) | 1200*1900*1100 mm | area space(L*W) | 3500*2500 |
| total weight | 1500kg |
Driving System
| main motor | 2.2KW 3.0KW | feeding material | pneumatic |
| fixation | pneumatic | giving way | pneumatic |
| slideway | 40mm,round slideway | bearing | Haerbin |
Control System
| PLC controller | Delta | driving parts | CHNT |
| signal components | Omron | pneumatic components | AIRTAC |
| man-machine interface | text | |
