Home > Products > Paper Tube Forming Machine > UNI-150C Auto paper tube curling machine with high speed

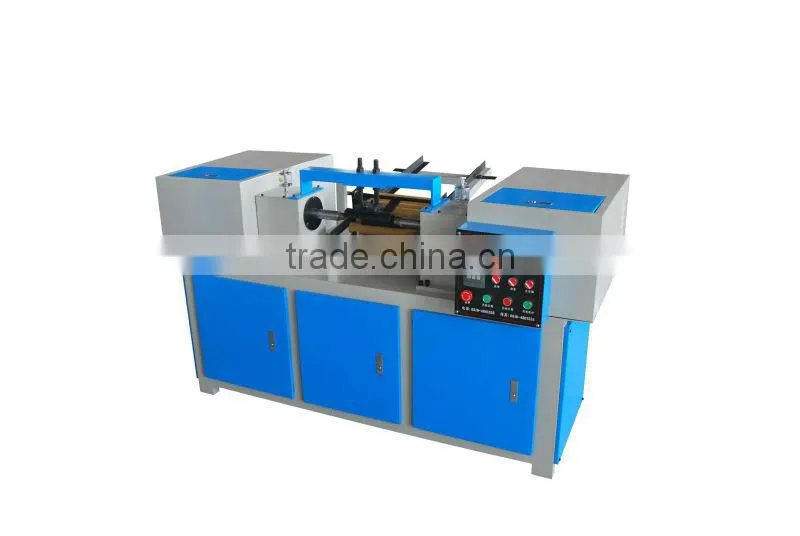

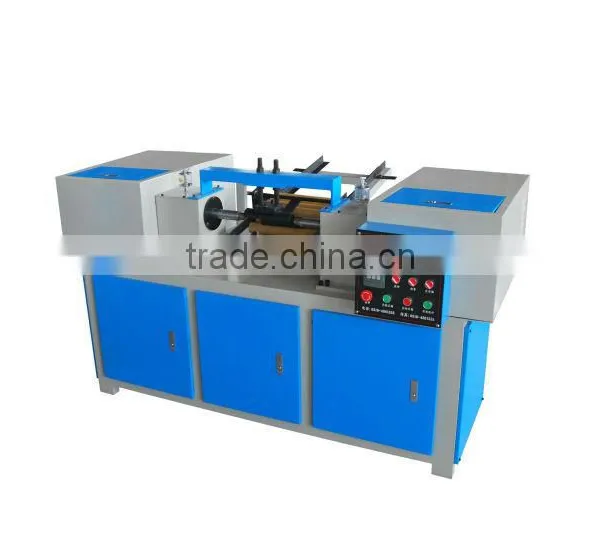

UNI-150C Auto paper tube curling machine with high speed
Negotiable
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- tianjin
You May Like
-
N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
-
Hygiene Three Fold Hand Paper Towel Making Machine
-
High Speed Laminating Z Folding Emboss Kitchen Paper Towel Machine
-
Embossed Brand Name Z Fold Paper Hand Towel Making Machinery
-
Hygiene N Folding Brand Name Towel Hand Paper Machine
-
Health Care Laminating N Fold Hand Towel Paper Machinery
Product Details
| Condition: | New | Product Type: | Paper Core Machine | Processing Type: | Winding Machine |
| Place of Origin: | Hebei, China | Brand Name: | unipand | Model Number: | UNI-150C |
| Voltage: | 3800V,3phase,4wire | Power(W): | 2.2KW.3.0KW | Dimension(L*W*H): | 1200*1900*1100 mm |
| Weight: | 1500kg | Certification: | CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
UNI-150C Auto Paper Tube Finishing Machine1.Tube Length:130-300mm
2.Productive Speed: 15-55 tubes/min
3.Diameter: 30-60
UNI-150c Auto Paper Tube Finishing Machine Main Specification and Equipment:
Parameter
| tube length | 130-300mm | tube diameter | 30-60mm |
| productive speed | 0-55tubes/min | way of feeding | pneumatic |
| governor control | PLC man-machine interface | operator | 1 |
| air pressure | 0.2-0.6MPa | power supply | 3800V,3phase,4wire |
| power | 5.2KW |
Size (mm)
| mainframe(L*W*H) | 1200*1900*1100 mm | area space(L*W) | 3500*2500 |
| total weight | 1500kg |
Driving System
| main motor | 2.2KW 3.0KW | feeding material | pneumatic |
| fixation | pneumatic | giving way | pneumatic |
| slideway | 40mm,round slideway | bearing | Haerbin |
Control System
| PLC controller | Delta | driving parts | CHNT |
| signal components | Omron | pneumatic components | AIRTAC |
| man-machine interface | text | |
