Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > UNI-200 Paper Tube High Speed Making Machine

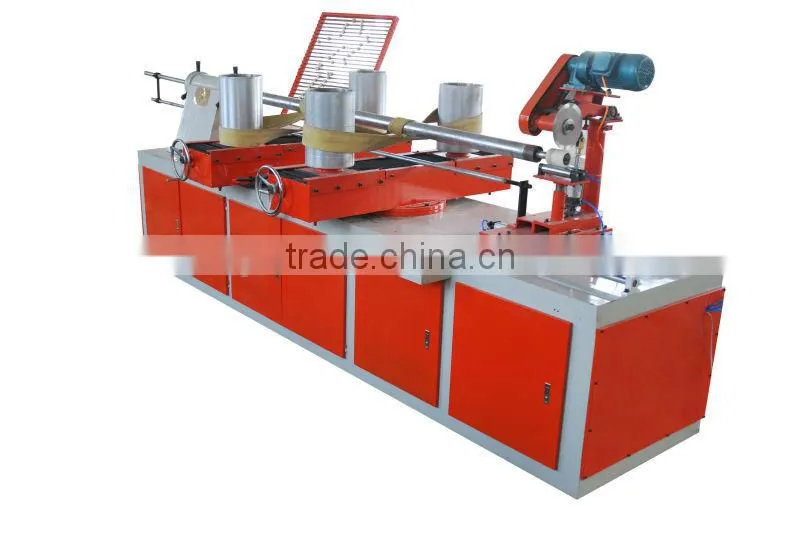

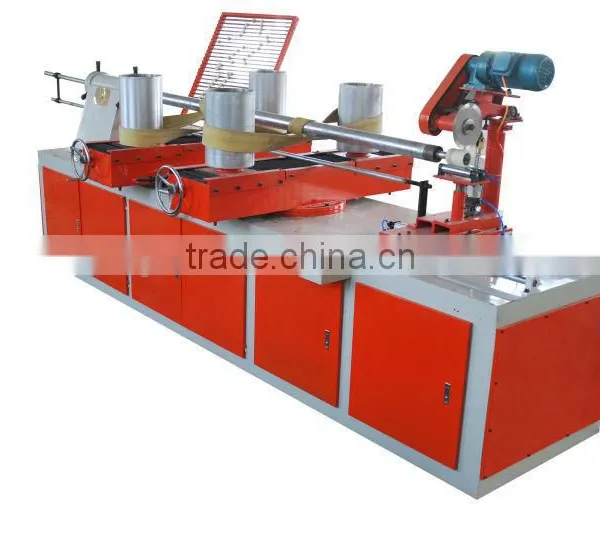

UNI-200 Paper Tube High Speed Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Core Machine
Processing Type:
Winding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UNI-1500B High Quality Paper Tube Cutting Machine With High SpeedNegotiableMOQ: 1 Set -
UNI-150C Auto Paper Tube Bending MachineNegotiableMOQ: 1 Set
-
UNI-JQ High Quality Paper Tube Cutting Machine With High SpeedNegotiableMOQ: 1 Set
-
UNI-150C Auto Paper Tube Curling MachineNegotiableMOQ: 1 Set
-
UNI-JQ High Quality Paper Tube Reutting Machine With High QualityUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Product Type
Paper Core Machine
Processing Type
Winding Machine
Place of Origin
Hebei, China
Brand Name
unipand
Model Number
UNI-200
Voltage
380V,3phase,4wire.50Hz
Power(W)
11KW
Dimension(L*W*H)
3600*1850*1800mm
Weight
2600kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
UNI-200 Paper Tube Machine with three head1.Tube Diameter: 20-200mm
2.Tube Max Thickness: 15mm
3.Productive Speed:3-15m/
UNI-200 Paper Tube Machine with three headMain Specification and Equipment:
Parameter
| tube diameter | 20-200mm | number of roller | 23plies |
| tube max thickness | 15mm | rewinding noses | 3noses |
| operator | 1-3 | productive speed | 3-15m/min |
| way of cutting | pneumatic | way of gluing(auto) | double sides |
| paper-shelf type | crisscross | way of tube down | withdraw |
| power of mainframe | 11KW | power input | 380V,3phase,4wire.50Hz |
Size (mm)
| mainframe(L*W*H) | 3600*1850*1800 | area space(L*W) | 15000*8000 |
| wheel hub diameter | 270 | wheel hub height | 450 |
| tread | 1000-1300 | total weight | 2600kg |
Driving System
| modle of main motor | 11KW,Weihai | mainframe rotate speed | 1400r/min |
| hub max rotate speed | 48r/min | hub output torque | 1800N.m |
| reductor type | WPO155 | modle of driving chain | 12A*2 |
| wheel hub drive | 3wheel | cutting motor | A ball |
| glue pump | 1.5KW,gear pump | screw | China |
| slideway | 40mm,round slideway | bearing | Haerbin |
Control System
| PLC controller | Delta DVP-24ES00R2 | edition of program | JS-A3.1 |
| inverter | 18KW,Anchuan | driving components | CHNT |
| signal components | Omron | pneumatic components | AIRTAC |
| angle setting motor | -- | cutting blade control device | pneumatic |
| way of fixing length | infrared | synchronism control cutting system | - |
