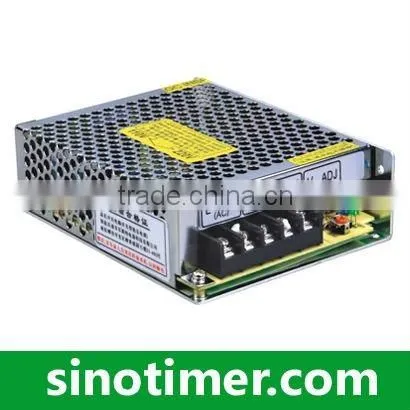

100W Switching Power Supply

100W Switching Power Supply thumbnail-1
100W Switching Power Supply photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
BS-100W
Contact Supplier Request Quote Chat Now
Yueqing Xinyang Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name X&Y
Model Number BS-100W
Output Power 51 - 100W
Output Type Single
Input Voltage Other, Universal AC input: 176V~264V
Output Voltage 12v

Specifications

Single input 100W power supply
Mini size:159*97*38mm
Universal AC input: 176V~264V
100% full load burn-in test

Single input 100W power supply



Specification

BS-100-5

BS-100-12

BS-100-15

BS-100-24

DC output

5V  20A

12V   8.5A

15V  7A

24V  4.5A

Wave and noise

75mVp-p

50mVp-p

50mVp-p

50mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

80%

83%

84%

86%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

85-132VAC/170-264VAC  47-63Hz

AC Inrush current

Cold-start current  25A/115V  50A/230V

OverLoad protection

105%-150% hiccup mode,auto-recovery

Over-Voltage protection



Setup,rise,hold up time

200ms,100ms,20ms at full load and 230VAC

Withstand voltage

I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute

Isolation resistanc

I/P-O/P   IP/FG   OP-FG:500VDC/100MΩ

Working temperature

-10ºC—+50ºC

Safety Standards

Design refer to GB4943,UL60950,EN60950

EMC Standards

Design refer to GB9254,EN55022 Class B

Weight

0.56Kg
