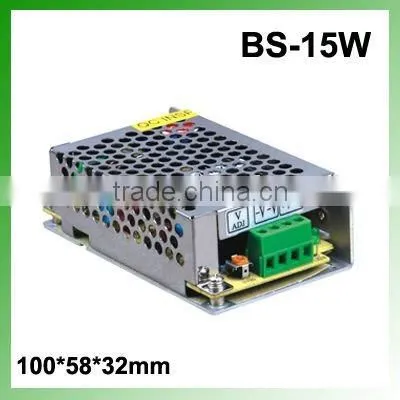

15W Mini Size Switching Power Supply

15W Mini Size Switching Power Supply thumbnail-1
15W Mini Size Switching Power Supply photo-1
US$ 5 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
BS-15W
Contact Supplier Request Quote Chat Now
Yueqing Xinyang Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name X&Y
Model Number BS-15W
Output Power 1 - 50W
Output Type Single
Input Voltage 110V
Output Voltage 12v

Specifications

Single input 15W power supply
Mini size:100*58*32mm
Universal AC input: 85-264VAC
100% full load burn-in test

Single input 15W power supply



Specification            BS-15-5     BS-15-12     BS-15-15    BS-15-24
DC output        5V  3A    12V  1.3A    15V   1A    24V  0.7A
Wave and noise    60mVp-p     80mVp-p    100mVp-p   100mVp-p
Inlet stability      ±0.5%      ±0.5%       ±0.5%      ±0.5%
Load stability      ±0.5%      ±0.5%       ±0.5%      ±0.5%
Efficiency        68%         71%         72%       75%
Adjustable range for DC voltage        ±10%      ±10%       ±10%      ±10%
AC input voltage range  85-264VAC  47-63Hz    120-370VDC
AC Inrush current Cold-start current  30A/230V
OverLoad protection          105%-135% hiccup mode,auto-recovery
Over-Voltage protection
Setup,rise,hold up time 200ms,50ms,20ms at full load and 230VAC
Withstand voltage   I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute
Isolation resistanc  I/P-O/P   IP/FG   OP-FG:500VDC/100M
Working temperature -10ºC—+50ºC
Safety Standards Design refer to GB4943,UL60950,EN60950
EMC Standards  Design refer to GB9254,EN55022 Class B
Weight 0.15Kg
