Specifications

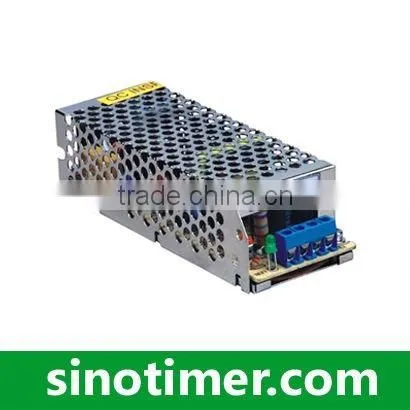

Mini size:120*40*30mm, 12v mini smpsSingle input 10W
Universal AC input: 85-264VAC
100% full load burn-in test
12V SMPS
Specification |
BS-10-5 |
BS-10-12 |
BS-10-24 |
BS-10-48 |
DC output |
5V 2A |
12V 0.8A |
24V 0.4A |
48V 0.2 |
Wave and noise |
75mVp-p |
75mVp-p |
75mVp-p |
75mVp-p |
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Load stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Efficiency |
77% |
80% |
85% |
85% |
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
AC input voltage range |
85-264VAC 47-63Hz 120-370VDC |
|||
AC Inrush current |
Cold-start current 35A/230 |
|||
OverLoad protection |
105%-150% hiccup mode,auto-recovery |
|||
Setup,rise,hold up time |
200ms,50ms,20ms at full load and 230VAC |
|||
Withstand voltage |
I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
|||
Isolation resistanc |
I/P-O/P IP/FG OP-FG:500VDC/100M |
|||
Working temperature |
-10ºC—+50ºC |
|||
Safety Standards |
Design refer to GB4943,UL60950,EN60950 |
|||
EMC Standards |
Design refer to GB9254,EN55022 Class B |
|||
Weight |
0.14Kg |
|||
