Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 60W Triple Output Power Supply

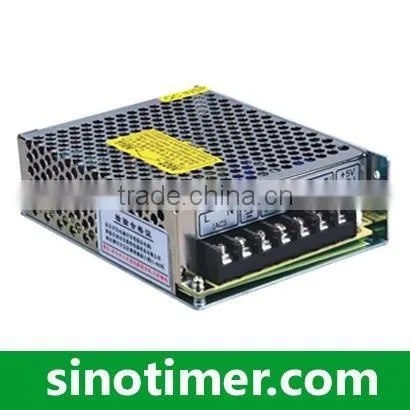

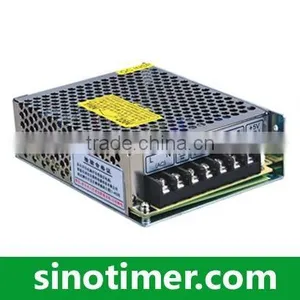

60W Triple Output Power Supply

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

X&Y

Model Number:

T-60W

Contact Supplier Request Quote Chat Now

Yueqing Xinyang Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name X&Y

Model Number T-60W

Output Power 51 - 100W

Output Type Triple

Input Voltage Other, Universal AC input: 90-264VAC

Output Voltage 12v

Specifications

60W Triple Output power supply
25,30,40,50,60,75,100,120W also
100%full load burn-in test
2 years warranty

60W Triple Output power supply

100% full load burn-in test
AC input: 110/220VAC± 20% selectable by switch
Protections: Short circuit/Overload
Low cost, high reliability
Size: 159*97*38mm
1 year warranty

Model	T-60A			T-60B			T-60C
Specification	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
Specification	5V 5A	12V 2.5A	-5V 0.5A	5V 5A	12V 2.5A	-12V 0.5A	5V 5A	15V 2A	-15V 0.5A
Wave and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	± 0.5%	± 1%	± 0.5%	± 0.5%	± 1%	± 0.5%	± 0.5%	± 1%	± 0.5%
Load stability	± 1%	± 4%	± 1%	± 1%	± 4%	± 4%	± 1%	± 4%	± 1%
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1: +10, -5%			CH1: +10, -5%			CH1: +10, -5%
AC input voltage range	85-264VAC? 47-63Hz; 120-370VDC
AC input voltage range	Cold-start current 30 A/115V 60A/230V
OverLoad protection	105%-150% hiccup mode, auto-recovery
OverLoad protection	CH1.5.75-6.75V
Setup, rise, hold up time	800ms, 50ms, 10ms/115VAC? 300ms, 50ms, 80ms/230VAC
Withstand voltage	I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5KvAC 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working temperature	-10— +/-50
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 class A
Weight	0.56kg
