Specifications
Energy saving Primary Jaw Crusher Price1.High crushing ratio;
2. ISO9001:2008 certified&SGS;
3.Low noise,creates little dust

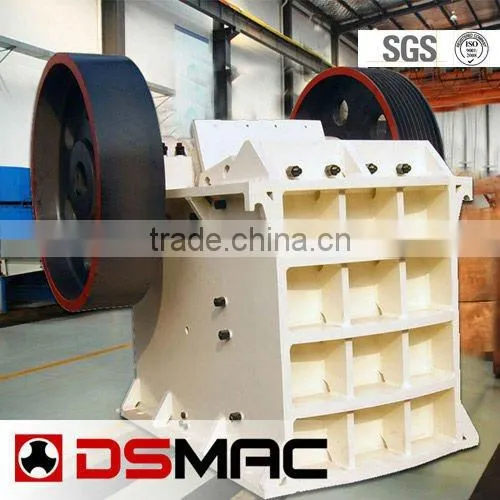

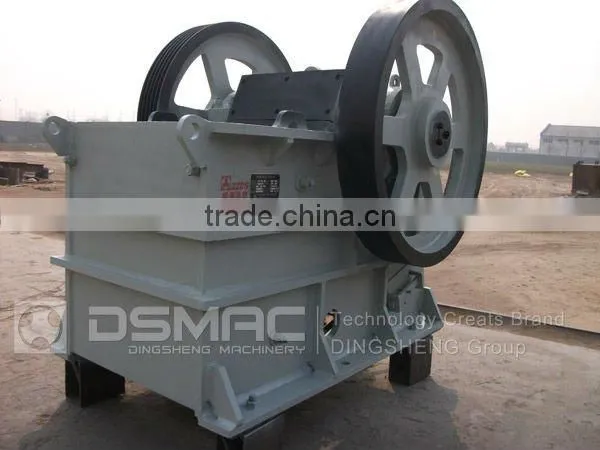

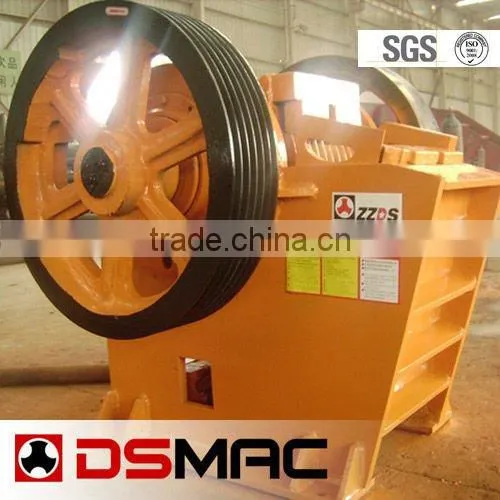

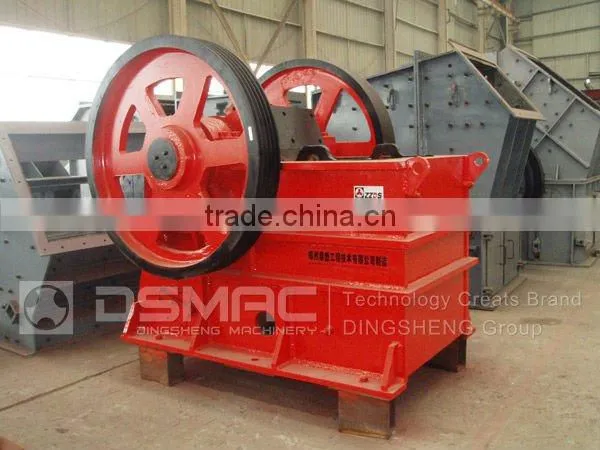

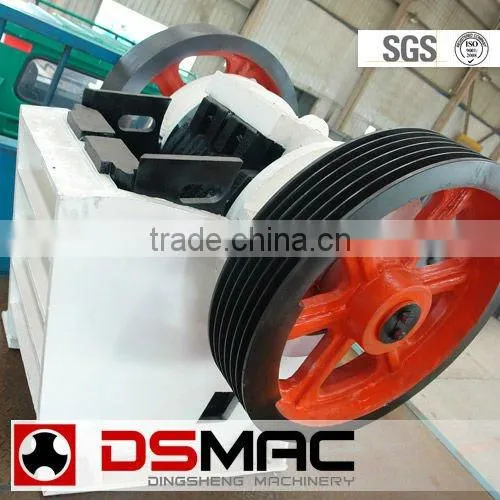

Highly Energy Saving Jaw Crusher Price for sale in China
Features of Primary Jaw Crusher price :
1. Jaw crusher is featured with high crushing ratio and sound epigranularity.
2. The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.
3. It is highly energy saving. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
4. To meet different client needs, the discharge gate is designed with a large adjusting range.
5. Jaw crusher causes low noise and creates little dust.
DSMAC J Jaw Crusher price Aplication:
Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320MPa. It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements.
Primary Jaw Crusher price Technical Specifications:
Type |
Maximum Feed |
Adjusting Range(mm) |
Production Capacity(t/h) |
Eccentric shaft Rotary Speed |
Motor Power |
Dimensions |
Weight (excluding motor) (t) |
PE150*250 |
125 |
10-40 |
1-5 |
285 |
5.5 |
8758*758*850 |
0.81 |
PE250*400 |
210 |
20-80 |
5-20 |
310 |
15 |
1108*1142*1392 |
2.8 |
PE400*600 |
340 |
40-100 |
16-65 |
275 |
30 |
1700*1732*1653 |
6.5 |
PE500*750 |
425 |
50-100 |
45-100 |
275 |
55 |
2050*1860*2145 |
10.2 |
PE600*900 |
500 |
65-160 |
50-120 |
250 |
55-75 |
2792*2168*2250 |
15.5 |
PE750*1060 |
630 |
80-140 |
52-180 |
250 |
110 |
2660*2430*2800 |
28 |
PE900*1060 |
685 |
90-150 |
100-250 |
250 |
110 |
2970*2556*2800 |
31 |
PE900*1200 |
750 |
95-165 |
140-260 |
200 |
132 |
3380*2870*3330 |
50 |
PE1000*1200 |
850 |
150-265 |
315-340 |
200 |
132 |
3480*2876*3330 |
50.6 |
PE1200*1500 |
1020 |
150-300 |
400-800 |
180 |
200 |
4200*3300*3500 |
78.6 |
PE1500*1800 |
1200 |
220-350 |
500-980 |
180 |
355 |
5100*3740*4937 |
121 |

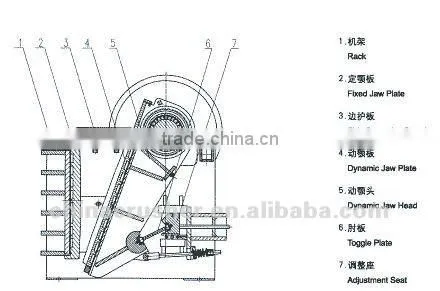

DSMAC Jaw Crusher price Working Principle:
The Crushing form of this series Jaw Crusher is driven-squeezing style. Its working principle is: Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.
