Specifications
1.High quality stone jaw crusher;2.High-efficiency jaw crushers;
3.ISO9001:2008&SGS;
4.Reliable operation, low energy cost.

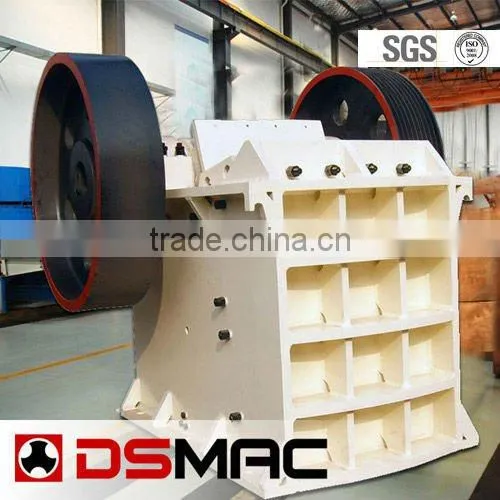

High Performance Stone Jaw Crusher (GFP)
1.Product brief of GFP Stone Jaw crusher
1)THE Feed MATERIALS
The proven GFP Seris jaw crushers are designed to crush efficiently all, even hardest rock and recycle materials; as well as different kinds of ore, building rubble,glass and other hard materials.It can crush the materials whose compreddion strength does’t exceed 320Mpa.
2) THE FIELDS OF APPLICATION
Jaw crushers are used for primary crushing of a wide variety of materials in the mining, smelting,building materials,highway,water conservancy and chemical industries. Furthermore they are used in recycling processes.
3) Features of Stone jaw crusher
* the crushing ratio can be as 15;
* small granularity,P80<10mm;
* high efficiency production,low energy pared with the convertional fine jaw crusher,its crushing capacity is increased by 20-30%,its energy consumption is reduced by 15-20%;
* the abrasion of hyperboloid plate is small.under the equal condition,the life of its jaw plate can be prolonged by 3-4 times,especially in case of erosive materials;
* wide adaptability.it is suitable for the crushing of quartzite,magnetite and basalt
2.Main customer benefits of GFP series Stone jaw crusher
1)Robust and assembly design
DSMAC GFP Series crushers are premium class crushers due to their design as well as to the materials that are used to produce them, so as to ensure the highest possible functionality and reliability, without any compromises. Each model is tested virtually for stress, strain, shock, deformation, thermal loading, vibration and noise under a wide range of load conditions. The result is exceptional reliability.
2)The right cavity design
How to improve the capacity? The cavity is the heart and only purpose of the jaw crusher. The right feed opening width to depth ratio ensures minimum blockage and eliminates unnecessary height from the crusher. The tooth profiles as well as the thickness of the jaws are optimized and combined with the right manganese steel alloys to maximize throughput and minimize operating costs.
3)Designed to bring your crushing costs down
* Tired of repairing your jaw crusher’s foundation? Special rubber dampers and stoppers allow the crusher to move vertically and * * The most durable jaw plates and bearings
4)Jaws
Back faces of all jaws are machine ground to provide firm support. Two piece reversible jaws are provided on our larger crushers to allow maximum jaw life. The jaw-faces are fully reversible. Replaceable jaw-face backing plates are provided to protect the machined jaw-face locations and the jaw-holder guard, provides protection for the jaw-holder bearing housing.
5)Little dust and low noise levels
Equipped with dust-cleaning apparatus water tank, in order to reduce the noise, damping layer is filled in the interlayer between the upper body and the lower body. All this combines to create a safer and cleaner working environment.
Technical Specifications of GFP Stone jaw crusher
Type |
Feeding Size (L*W) |
Max Feeding granularity |
Adjusting Range(mm) |
Production Capacity(t/h) |
Rotate Speed |
Motor Power |
Dimensions |
Weight (excluding motor) (t) |
GFP250*400 |
250*400 |
225 |
8-30 |
8-20 |
330 |
18.5 |
1080*1190*1230 |
3 |
GFP400*600 |
400*600 |
350 |
25-80 |
20-40 |
330 |
55 |
2250*1853*1988 |
8.6 |
GFP500*750 |
500*750 |
400 |
50-100 |
50-100 |
300 |
75-90 |
2580*1982*2295 |
15 |
