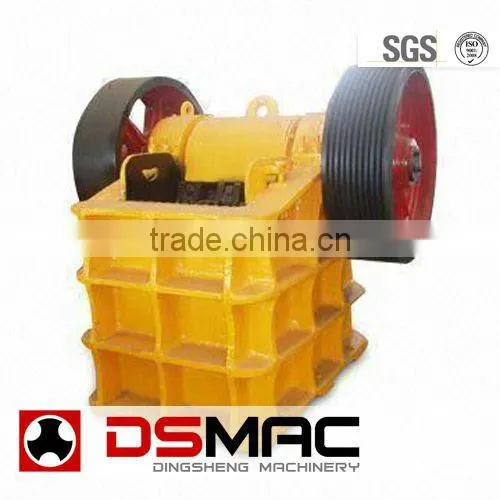

DSMAC stone jaw breaker (PE)
- Tianjin/Shanghai/Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Capacity(t/h) | 1-980 | Place of Origin | Henan, China | |
| Brand Name | DSMAC | Model Number | PE | |
| Application | mining,metallurgy,chemical engineering,building materials industry |
Product Description
Specifications
stone jaw breaker1.ISO9001:2008 certified & SGS
2.Top10 of Chinese Branded Crushers
3.Serve crushing aggregate 30+ year
We have three kinds of jaw crushers:course jaw crusher,fine jaw crusher,Deep Cavity Fine Jaw crusher.
DSMAC stone jaw breaker Aplication:
Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320MPa. It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements.
DSMAC stone jaw breaker Working Principle:
The Crushing form of this series Jaw Crusher is driven-squeezing style. Its working principle is: Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.
Fine Jaw Crusher Technical Specifications
Type | Maximum Feed | Adjusting Range(mm) | Production Capacity(t/h) | Eccentric shaft Rotary Speed | Motor Power | Dimensions | Weight (excluding motor) (t) |
PE150*250 | 125 | 10-40 | 1-5 | 285 | 5.5 | 8758*758*850 | 0.81 |
PE250*400 | 210 | 20-80 | 5-20 | 310 | 15 | 1108*1142*1392 | 2.8 |
PE400*600 | 340 | 40-100 | 16-65 | 275 | 30 | 1700*1732*1653 | 6.5 |
PE500*750 | 425 | 50-100 | 45-100 | 275 | 55 | 2050*1860*2145 | 10.2 |
PE600*900 | 500 | 65-160 | 50-120 | 250 | 55-75 | 2792*2168*2250 | 15.5 |
PE750*1060 | 630 | 80-140 | 52-180 | 250 | 110 | 2660*2430*2800 | 28 |
PE900*1060 | 685 | 90-150 | 100-250 | 250 | 110 | 2970*2556*2800 | 31 |
PE900*1200 | 750 | 95-165 | 140-260 | 200 | 132 | 3380*2870*3330 | 50 |
PE1000*1200 | 850 | 150-265 | 315-340 | 200 | 132 | 3480*2876*3330 | 50.6 |
PE1200*1500 | 1020 | 150-300 | 400-800 | 180 | 200 | 4200*3300*3500 | 78.6 |
PE1500*1800 | 1200 | 220-350 | 500-980 | 180 | 355 | 5100*3740*4937 | 121 |
Fine jaw crusher Technical Specifications
Type | Maximum Feed | Adjusting Range(mm) | Production Capacity(t/h) | Eccentric shaft Rotary Speed | Motor Power | Dimensions | Weight (excluding motor) (t) |
PEX750*150 | 120 | 18-48 | 5-16 | 320 | 15 | 1220*1480*1180 | 3.5 |
PEX750*250 | 210 | 25-60 | 8-22 | 300 | 22 | 1400*1617*1412 | 4.9 |
PEX1000*250 | 210 | 25-60 | 10-32 | 330 | 37 | 1580*1992*1380 | 6.6 |
PEX1200*250 | 210 | 25-60 | 13-38 | 330 | 37 | 1530*2192*1380 | 7.7 |
PEX1300*300 | 250 | 20-90 | 16-100 | 300 | 75 | 1880*2320*1725 | 11.08 |
Deep Cavity Fine Jaw crusher Technical Specifications
Type | Feeding Size (L*W) | Max Feeding granularity | Adjusting Range(mm) | Production Capacity(t/h) | Rotate Speed | Motor Power | Dimensions | Weight (excluding motor) (t) | |
GFP250*400 | 250*400 | 225 | 8-30 | 8-20 | 330 | 18.5 | 1080*1190*1230 | 3 | |
GFP400*600 | 400*600 | 350 | 25-80 | 20-40 | 330 | 55 | 2250*1853*1988 | 8.6 | |
GFP500*750 | 500*750 | 400 | 50-100 | 50-100 | 300 | 75-90 | 2580*1982*2295 | 15 | |
