Specifications
Large Capacity Roller Crusher:1.Easy Maintenance
2. Low Cost
3. Easy Operation
4. Large Capacity

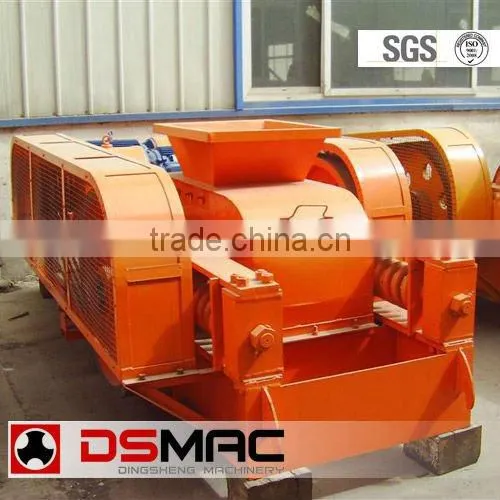

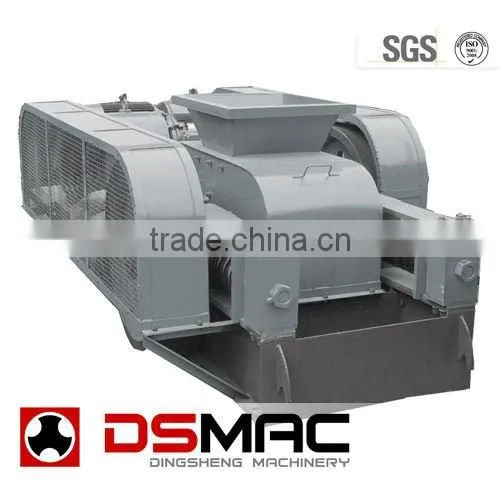

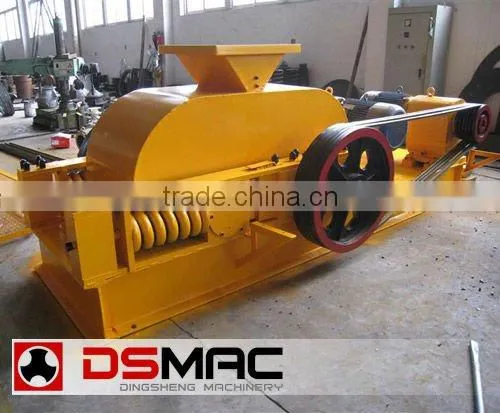

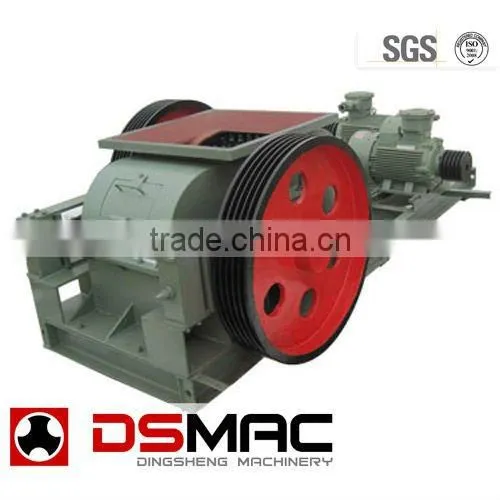

Large Capacity Roller Crusher Introduction
Our company has introduced advanced roller crusher technology from abroad and combined it with the specific industrial and mining conditions in China. With our unique complete equipment and production technique, our company has successfully designed and manufactured a roller crusher which is suitable for crushing techniques and raw materials conditions home and abroad. Due to the efforts we have made to further research the process system and improve the reliability of main engine, the running rate of roller crusher system has come to the level of ball mill system. The mature roller crusher technology has injected new vitality to the grinding system.
Features of Large Capacity Roller Crusher
1. The roller crusher can bring excellent material extrusion effects with large amounts of fine powder.
2. Advanced welding technology enables the roller crusher to have a service life of more than 8000 hours.
3. Forged with extrusion roller alloy steel as a whole, it has high loading capacity and reliable performance.
4. Designed with a unique bearing structure, integrated with four lines of cylinder roller bearing and thrust bearing.
5. Safe and sensitive hydraulic system is functions reliably and is convenient to maintain.
6. The roller crusher is designed with Siemens PLC center total automatic control system.
7. Motor-driven feeding system is flexible and convenient to produce and operate.
8. Flexible crossing shaft torsion support has better adjusting performance.
Large Capacity Roller Crusher Working Principle
The main working parts of roller press is fixed roller and activities of the roller, driven by the motor reducer mainly as a relatively low-speed rotation, when the materials continuous and dense to feed between the two rollers, the hydraulic system, through the cylinder, and roller bearing hundreds of tons of pressure to pass to the roller between the material, the material through the high-pressure extrusion, so that particle size decreased, the powder content of less than 0.08mm to reach 20-40%, less than 2mm of material to reach 60% -70%, and after squeezing in all the materials present in a large number of cracks, so that material in the grinding process when the next one, the required energy consumption drastically reduced.
All materials in the pure to be crushed under high pressure, then through the classification, the small particles directly into the mill, coarse particles return to Roller Press.
Large Capacity Roller Crusher Application
The DSRP roller crusher equipment is for grinding fragile materials. It is used for grinding cement clinker, granulated blast furnace slag, raw materials for cement (limestone, sandstone, shale, etc.), quartz sand, iron stone, etc. The roller crusher can replace the ball mill pre-grinding system which has high energy consumption and low efficiency. It can also reduce steel consumption and noise. The roller crusher is quite suitable for new factory construction and old factory technological transformation. It can enable the ball mill system to raise yield by 50~110%. Among the materials after extrusion, 20~35% have discharging granularity less than 0.08mm and 65~85% less than 2mm.
Established in 1997, Dingsheng is a major manufacturer and supplier of roller crushers in China. In addition to the roller crusher, our company provides tire mobile crushing and screening plant, spring cone crusher, vibrating screen, sand washer, etc. All of our products are manufactured in strict compliance with international standards and have gained widespread popularity among clients in Mongolia, Vietnam, France, Germany, Malaysia, Turkey, etc.
Our company is located in Zhengzhou City, giving us easy access to air and land transportation. This helps us deliver our products to clients in time and helps our clients reduce their transportation costs.
If you are interested in our crusher and mill, please feel free to contact us.
