Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System

Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System photo-1
Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System photo-2
Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System photo-3
Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System photo-4
Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Avcit
Model Number:
Wall Panel+ E-CPZM+HD1010
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Avcit
Model Number Wall Panel+ E-CPZM+HD1010

Audio System,  Home automation, Programmable Central Controller, HD 10x10 Modular and Scalable Seamless HDMI Matrix Switcher



Overview

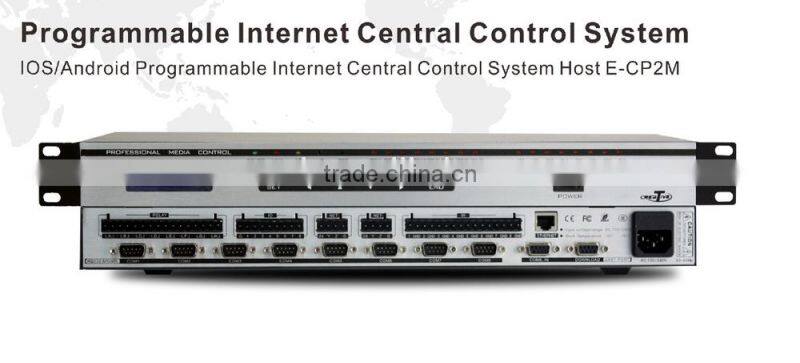

E-CP2M



1. 32 digits processor;

2. Works with iOS/android/RF touch panel;

3. Programming tool for iOS/android devices is compatible with conventional software;

4. Support network parallel connection, unlimited space expansion;

5. Hundreds of logic module that can implement complex functions;

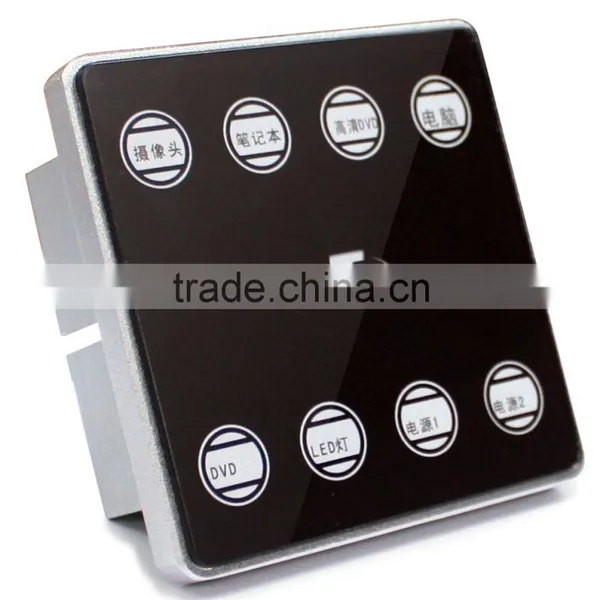

6. Crystal button with backlighting.

Features

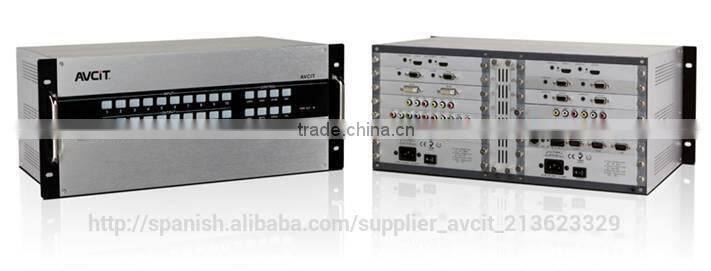

HD1010 Matrix switcher



1.Modular structure: Input and output signal support all digital and analog formats, such as AV, VGA, YPbPr, DVI, HDMI, HD-SDI, OpricFiber, RJ45, we even developped central controller module, which works with HD1010, HD1818

2.Long distance driver feature: Input with automatic equalization, effectively reducing ISI due to long distance transmission; Output with pre-emphasis for signals; Input support receiving delay, apply for the time compensation when the differential pair of lines are with unequal length.

3.Connection indicating: Input and output modules are with led lighting once connected/

4.Compatible with HDCP: Make sure that protected media content from Blue-ray DVD, Gane box etc;

5.Audio access function: Audio interface is available for VIDEO, VGA and YPbPr input and out put modules, switch your video and audio signals synchronously;

6.Automatic EDID calculation: Automatically calculating the EDID intersection of any output display information, when signal to be switched to display devices with different resolutions, it can obtain the best resolution in real-time and implement automatically;

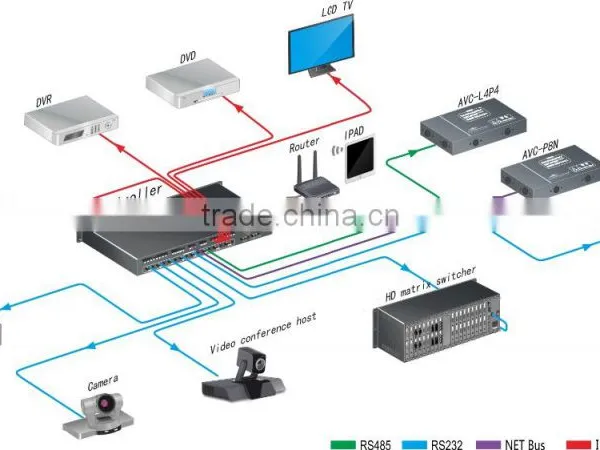

7.Extensible central controller function: Central controller module work with HD1010, HD1818, HD3636 enclosure, which is programmable, with 3 programmable RS232 ports,3 infrared transmitter port, support iOS/android devices and our own touch panels;

8.Memory function for interruption of power supply: Support Memory function for interruption of power supply, save and recall up to 18 switching states;

9.Extensible remote controls: With extensible controller module, you can control switching not just by local iOS/android devices, but also other remote network devices;

10.Extensible streaming media input: support 2-streaming media input and convert to WIFI input, support the common resolution, with software;

11.Input Output modular Card: 2 channels for each card, all digital and analog formats modules can be hybrid and custom deployed according to your devices;

12.Support full HD: compatible with 1080p/60 resolutions of all HDTV and 1920 * 1200  resolution of PC;

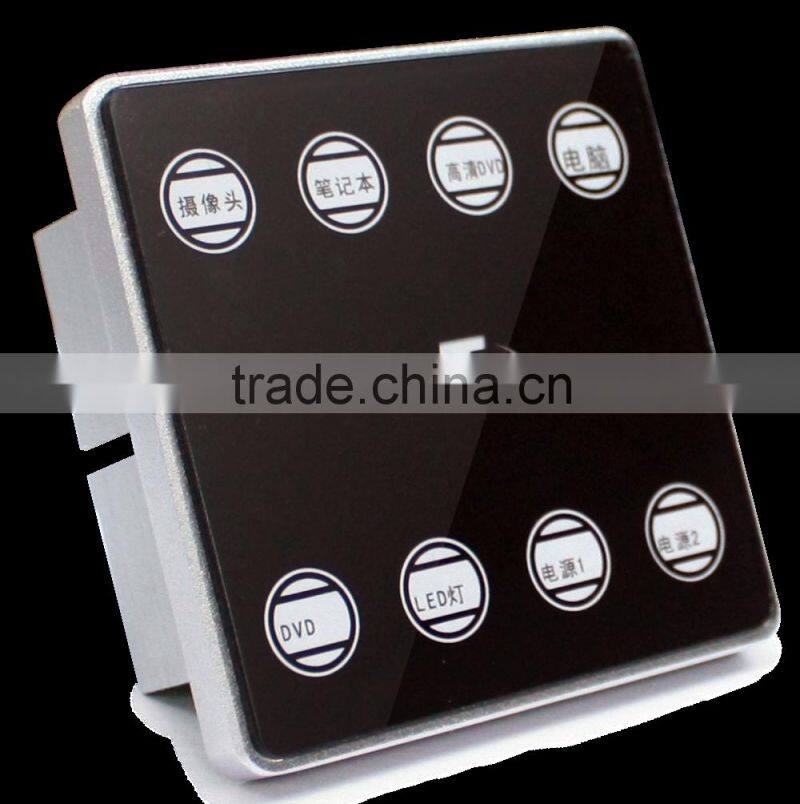

13.Luxurious silicone keypad with back lighting indicator, the current states can be obtained directly through the back lighting;

14.Support 3D, HDMI 1.4, HDCP, DVI 1.0 protocol, high color depth and up to 3.25Gbps rate;

15.1 RJ45 Ethernet port;

16.1 RS232 communication port;

17.Support HD seamless switching output. All output channels support seamlessly switching, no black screen, fully compatible with all signals, parameters of each output channel (resolution, vertical and horizontal size) is automatically adaptable, and can be manually adjusted independently. After extending, certain resolution can be default for this channel, perfectly resolve the tiny difference between 1360*768 and 1366*768, and no cross the border for other situations;

18.Dual power supply module: once a power module fails, the other power supply module will succeed immediately, to make sure it work properly.

Product Display

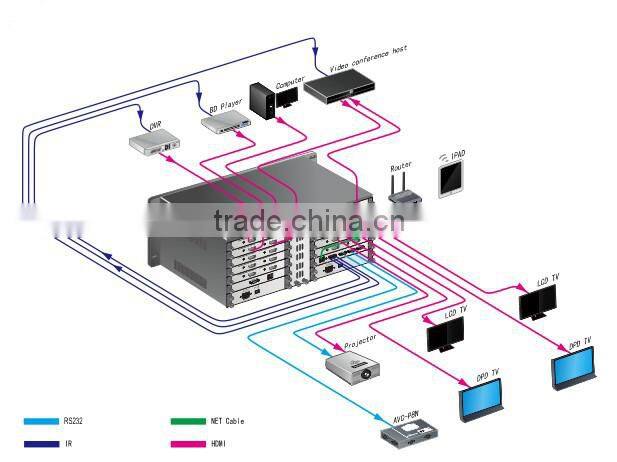

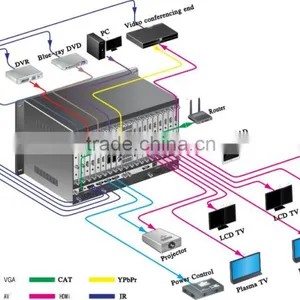

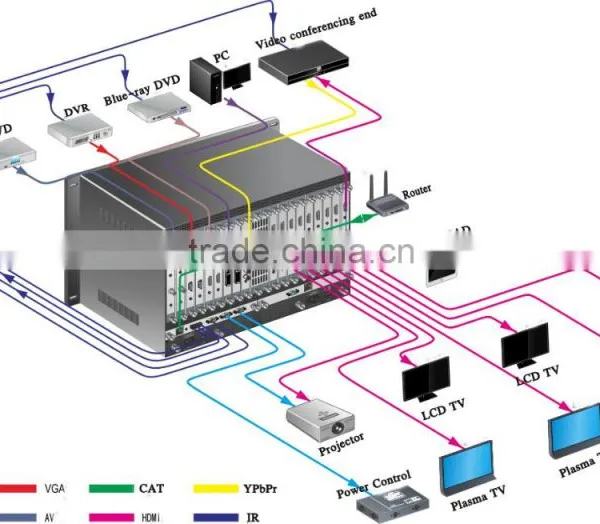

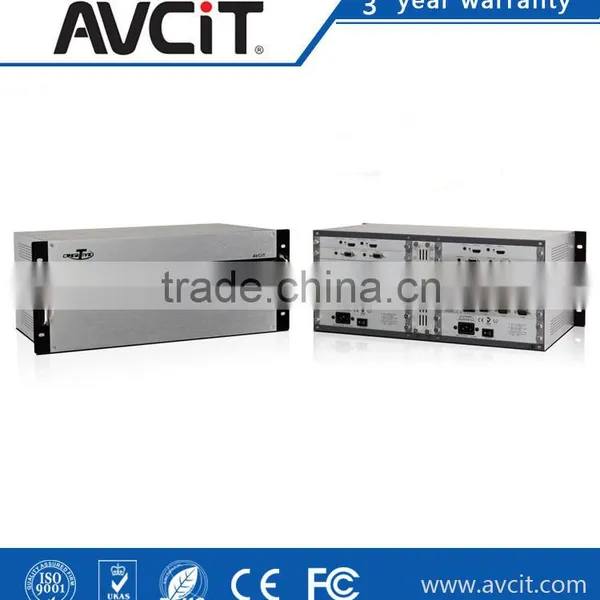

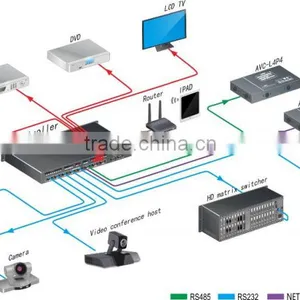

Wall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation SystemWall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation SystemWall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation SystemWall Panel HD 10x10 Modular and Scalable Seamless Matrix Switcher Programmable Central Controller Home Automation System
