Audio Video Controller, Programmable central controller, 4x4 Full seamless Multi-format Matrix switcher
SPLMII is an central controller with 8*8 matrix switcher functions, VGA 4*4 , composite video 4*4/5*3/6*2/7*1, and audio 8*4 matrix switching system (with audio volume adjustment function), are highly integrated.

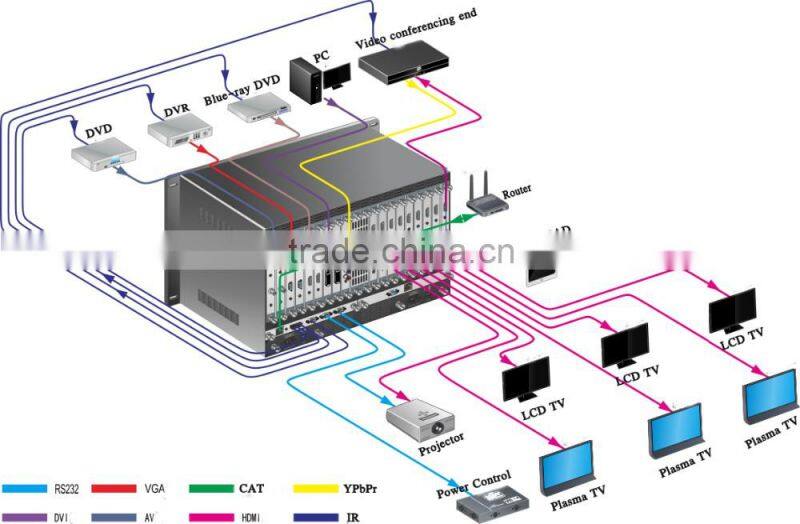

It is with 8-channel IR port, 4I/O inputs, three programmable serial ports, 32-bit embedded microprocessor, support complex logic computing. 3 programmable outputs serial ports, one serial port is for program downloading, one AVCIT net port, widely used in small and medium sized multifunctional meeting rooms, video conferencing systems, medium and large institutions, intelligent home and other occasions.
SPLM-II
1. 32-bit embedded processor, frequency up to 533MHZ;
2. Highly integrated co processor chip, with fine layout, enable the system running to be stably and efficient;
3. 8 MB of memory and 16 MB flash memory;
4. Programmable control platform, interactive control structure;
5. VGA 4*4 matrix switcher functions, VGA 15HDF interface
6. Optional 4*4/5*3/6*2/7*1 composite video matrix switcher functions, BNC interface;
7. Audio 8*4 matrix switching, 3-bit phoenix interface;
8. 3 programmable bidirectional serial ports, DB9/M Interface;
9. 1 bi-directional serial port for program downloading, DB9/F interface, 1 AVCIT net port;
10. 8 programmable IR port, 4 programmableI/O port ;
11. IR learning function;
12. 32 level volume adjustable(optional).

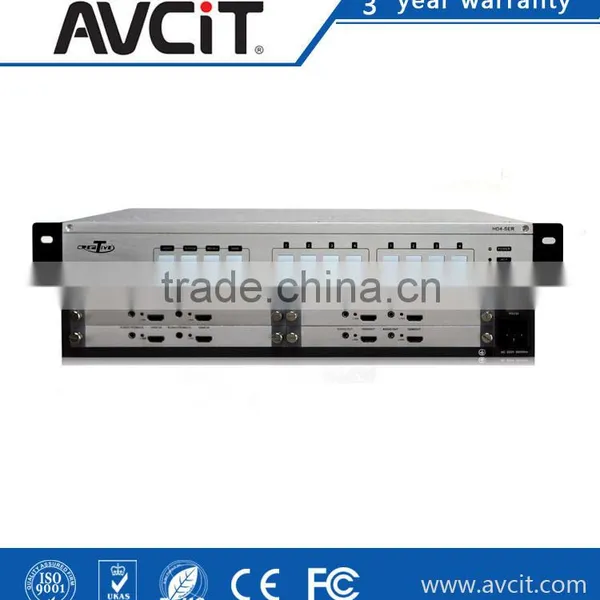

HD0404
1.Modular structure: Input and output signal support all digital and analog formats, such as AV, VGA, YPbPr, DVI, HDMI, HD-SDI, OpricFiber, RJ45, we even developped central controller module, which works with HD1010, HD1818
2.Long distance driver feature: Input with automatic equalization, effectively reducing ISI due to long distance transmission; Output with pre-emphasis for signals; Input support receiving delay, apply for the time compensation when the differential pair of lines are with unequal length;
3.Connection indicating: Input and output modules are with led lighting once connected;
4.Compatible with HDCP: Make sure that protected media content from Blue-ray DVD, Gane box etc;
5.Audio access function: Audio interface is available for VIDEO, VGA and YPbPr input and out put modules, switch your video and audio signals synchronously;
6.Automatic EDID calculation: Automatically calculating the EDID intersection of any output display information, when signal to be switched to display devices with different resolutions, it can obtain the best resolution in real-time and implement automatically;
7.Extensible central controller function: Central controller module work with HD1010, HD1818, HD3636 enclosure, which is programmable, with 3 programmable RS232 ports,3 infrared transmitter port, support iOS/android devices and our own touch panels;
8.Memory function for interruption of power supply: Support Memory function for interruption of power supply, save and recall up to 18 switching states;
9.Extensible remote controls: With extensible controller module, you can control switching not just by local iOS/android devices, but also other remote network devices;
10.Extensible streaming media input: support 2 streaming media input and convert to WIFI input, support the common resolution, with software;
11.Input Output modular Card: 2 channels for each card, all digital and analog formats modules can be hybrid and custom deployed according to your devices.
12.Support full HD: compatible with 1080p/60 resolutions of all HDTV and 1920 * 1200 resolution of PC;
13.Luxurious silicone keypad with back lighting indicator, the current states can be obtained directly through the back lighting;
14.Support 3D, HDMI 1.4, HDCP, DVI 1.0 protocol, high color depth and up to 3.25Gbps rate;
15.1 RJ45 Ethernet port;
16.1 RS232 communication port;
17.Support HD seamless switching output. All output channels support seamlessly switching, no black screen, fully compatible with all signals, parameters of each output channel (resolution, vertical and horizontal size) is automatically adaptable, and can be manually adjusted independently. After extending, certain resolution can be default for this channel, perfectly resolve the tiny difference between 1360*768 and 1366*768, and no cross the border for other situations;
18.Dual power supply module: once a power module fails, the other power supply module will succeed immediately, to make sure it work properly.
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 1-5 years guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/ROHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
3. How to make payment
We support TT / Western Union / MoneyGram for payment, you can chosse the one best suit for you.
You can get account information from our sales.
