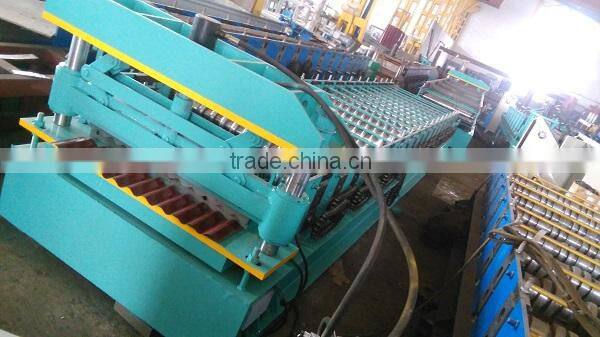

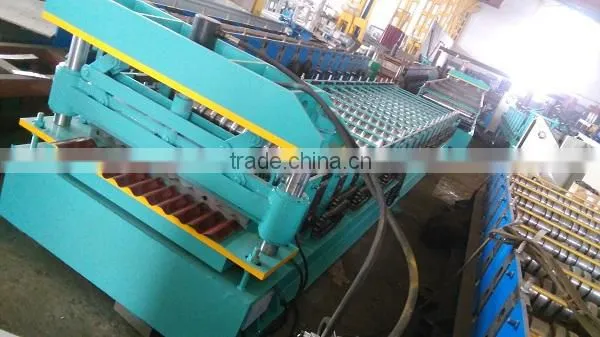

YT-R2 Hot Sale Roll Forming Machine for Steel

FOB Price

US$ 1 - 49,999 / Set

1 Set(Min. Order)

Port shanghai or ningbo
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Yutong
Model Number	YT-R2		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

This Roll Forming Machine consist of sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.

Optional: hydraulic decoiler /automatic stacker

Working Flow

Decoiling--sheet feeding--roll forming--automatic cutting--run out table

Main Parameter

No	Item		Parameter	Note
1	Suitable Material	Type	Pre-paint Steel Aluminum
		Width	914mm	According to profile
		Thickness	0.18—0.5mm
2	Product Specs	Cover width	740mm	Refer to drawing
		Wave height	12
		Length	Any length
3	Machine Material	Active shaft	No. 45 steel tempered	Up to final design
		Roller	No. 45 steel chrome plated
		Cutting Blade	Cr12 quenched
4	Power Requirement	Type	380V/3PH/50HZ	Customized
		Main motor	5.5kw	Up to final design
		Hydraulic	3kw	Up to final design
5	Speed	Forming speed	20-25m/min
7	Forming Stand		About 15 group	Up to profile
8	Transmission style		Chain, sprocket
9	Main machine structure		Guide Pillar
10	Type of Cutting		length-set cutting	Hydraulic cutter
11	Control System		Mitsubishi PLC& transducer
12	Product support		Run out table

Detailed Picture& Decription

1. Decoiler

Manual Decoiler with brake

Hydraulic decoiler

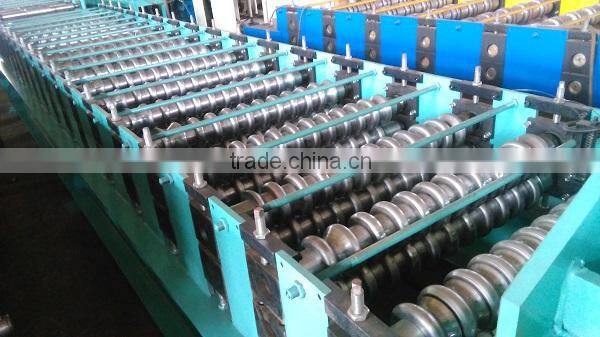

2. CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime

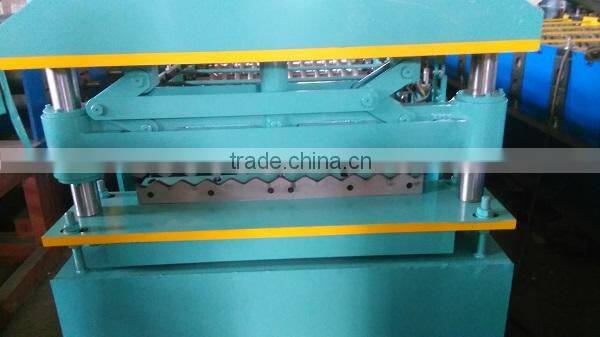

3. Pillar style post-cutting equipment, photoelectric switch ensure cutting precision and lifetime.

4. PLC system

5.Hydraulic unit

6.Container Loading

If you have any question pls let us know when you feel free, thank you!
