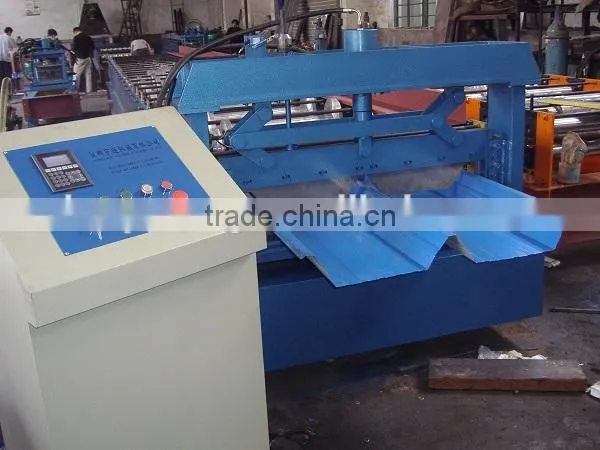

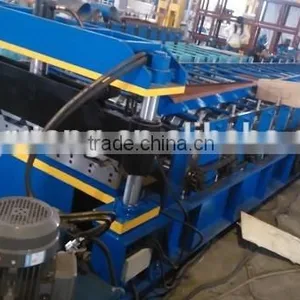

This Roll Forming Machine consist of 5T uncoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No |
Item |
Parameter |
Note |
|
1 |
Suitable
Material |
Type |
Pre-paint Steel Aluminum |
|
Width |
According to profile |
|
||
Thickness |
0.30—0.70mm |
|
||
2 |
Product
Specs |
Cover width |
According to profile |
Refer to drawing |
Wave height |
According to profile |
|||
Length |
Any length |
|||
3 |
Machine
Material |
Active shaft |
No. 45 steel tempered |
Up to final design |
Roller |
No. 45 steel chrome plated |
|||
Cutting Blade |
Cr12 quenched |
|||
4 |
Power Requirement |
Type |
380V/3PH/50HZ |
Customized |
Main motor |
Up to final design |
|||
Hydraulic |
5.5kw |
|||
5 |
Speed |
Forming speed |
30-35m/min |
|
7 |
Forming Stand |
Up to profile |
||
8 |
Transmission style |
Chain, sprocket |
|
|
9 |
Main machine structure |
Wall Panel |
|
|
10 |
Type of Cutting |
length-set cutting |
Hydraulic cutter |
|
11 |
Control System |
Mitsubishi PLC& transducer |
|
|
12 |
Product support |
Run out table |
||
If you have any question pls let us know when you feel free, thank you!
