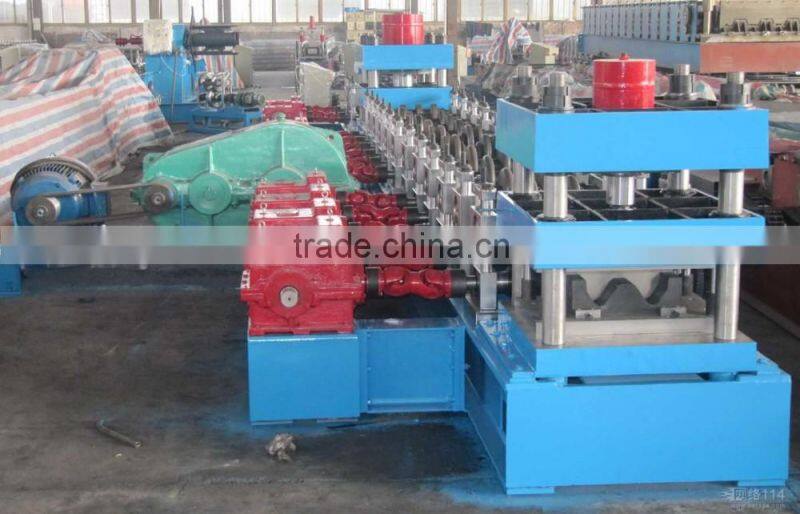

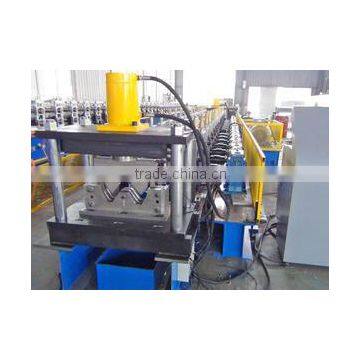

Two Waves-thire Waves-beam Highway Guardrail Cold Roll Forming Machine
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Beam Guard Highway Guardrail Roll Forming Machine
-
Bearing 8T Galvanized Steel Coil Automatic Hydralic Decoiler
-
10tons Hydraulic Decoiler, Automatic Decoiler, Decoiler Machine With a Car
-
10ton Steel Coil Decoiling Machine
-
Corrugated Roll Forming MachinePrice Hydraulic Decoiler With Coil Car
-
Automatic Hydraulic Decoiler Top Supplier
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | willing | Model Number | ZT-300 | |
| Power(W) | 380V 50HZ 3Phase | Voltage | 380V 50HZ 3Phase | |
| Dimension(L*W*H) | 6800mm*800mm*1200mm | Weight | 7.2 tons | |
| Certification | ISO9001 CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Manufacturing according to clients' request
2. CE certificate
3. Easy to operate
4. PLC control system
5. Year warranty
Speedway guard rail forming machine
The machine is the special forming equipment for producing the speedway guide rail. The machine adopts the cold forming, cold punching, automatic stack, industrial automation controlling system and precision machining technology, therefore is can run full automatically, including decoiling, forming, cutting to length and stacking. One shift every month can produce 600 tons (max).
Main technical parameters
Item | Parameters | |
Profile | Two ribs and three robs grard raill | |
Material | Type | Steel strip |
Thickness (mm) | 3 - 4 | |
Yield stress (Mpa) | 230-300 | |
Forming speed (m/min) | 20 | |
Roller material | D2 | |
Roller driven type | Gimbal transmission | |
Controller | PLC | |
Operation | Touch screen and button | |
Hydraulic system pressure (Mpa) | 25 | |
Total weight | About 5500 | |
Flow chart;
Loading steel coil → decoiling → feeding and leveling → side shearing → punching to length → roll forming →
cutting → product stacking → poving out the product
