ZP-5,7,9A/B Rotary mini tablet press machine
- 10 Set / Sets per Month
- NINGBO
- T/T
- High standard single punch tablet molding machine pills press tablet making Table press machine
- salt tablet press machine milk tablet machine pill press machine for sale
- Single Punch Tablet Press forming machine ,milk slice press machine,pills pressing machine
- Single Punch Tablet Pressing machine ,milk slice press machine with high quality
- 2022 hot sale Tablet Press forming machine ,milk slice press machine,mini press tablet machine
- Auto medicine powder rotary pill tableting machine automatic tablet press machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | JINDE |
Model Number: | ZP-5,7,9A/B | Type: | Rotary Tablet Press | Production Capacity: | 17000(p/h) |
Max. Pressure(KN): | 60kn | Max. Tablet Thickness(mm): | 7mm | Max. Tablet Diameter(mm): | 13mm |
Voltage: | 380V 50HZ / 220V 60HZ | Power(W): | 2.2KW | Weight: | 300KG |
Dimension(L*W*H): | 750X550X1200 mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
mini tablet press machine
Main Application
The single-type automatic tablet press equipment used to abnormity and normal tablet pressing ,which suitable for the small-scale industries such as laboratory ,small-scale production processing or other small enterprises and etc
Feature
- The machine designed for fully enclosed structure ,the has the advantage of good appearance in design, small floor area ,high efficiency, low energy consumption and etc
- The material contact parts is made of stainless steel ,the surface of turntable deal with polished to prevent cross pollution which meet the GMP requirement
- It is equipped with Plexi-glass perspective window for tablet producing observation .Each perspective window could be fully open and easy for cleaning and maintenance
- With the over-loading device and keep the safety production
Technical parameters
Model | ZP-5,7,9 A | ZP-5,7,9 B |
Die Amount | 5,7,9 stations | 5,7,9 stations |
Max Pressure | 60kn | 60kn |
Filling Depth | 17mm | 17mm |
Pressure Diameter | 13mm | 20mm |
Tablet Thickness | 7mm | 7mm |
RPM | 32(r/min) | 32(r/min) |
Capacity | 9600/13400/17000(p/h) | 9600/13400/17000(p/h) |
Power | 1.5kw | 2.2kw |
Overall Dimension | 750×550×1200 mm | 750×550×1200 mm |
weight | 300kg | 300kg |
ZP-11F rotary tablet press(Non-standard)
Technical parameters
Die Amount | 11 stations |
Max Pressure | 60kn |
Max Filling Depth | 17mm |
Max Pressure Diameter | 13mm ( Irregular 16mm) |
Max Tablet Thickness | 7mm |
RPM | 32(r/min) |
Capacity | 21000(p/h) |
Power | 1.5Kw 380V 50HZ (220V 60HZ) |
Overall Dimension | 750×550×1200 mm |
weight | 300kg |
Some parts of the machine

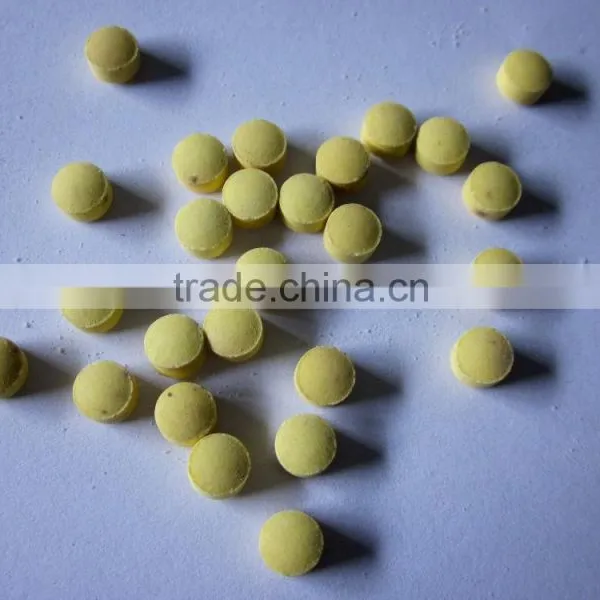

Samples
