Specifications
boxing machine1. PLC & HMI
2.Automatic weighing, filling
4.Hot melt sealing
5.Count the finished product

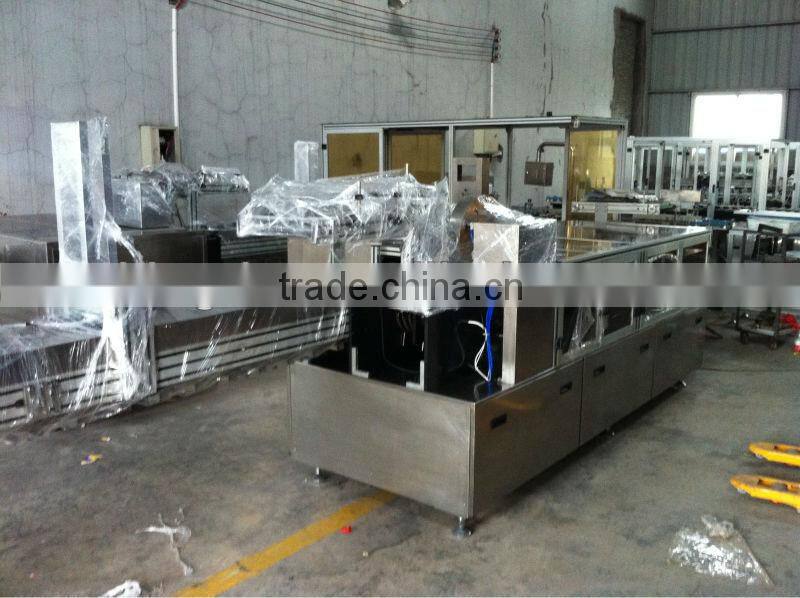

Fully automatic Aluminum Paper boxing machine
Usage
JDLX-80 Fully Automatic Boxing Machine is special intelligent equipment which can box the material continuously and fully automatically. The maximum speed is 80 bpm (boxes per minute), and the stable speed is 60-70 bpm. The machine is suitable for the industry of plastic wrap, aluminum foil roll, aluminum foil paper and so on.
Technical Parameter:
Speed | 50-80 box/min |
Box size range (Max) | 350×90×60 mm (L×W×H) |
Box size range (Min) | 200×35×20 mm (L×W×H) |
Thickness of paper | 350-450 gsm |
Noise | Less than 80 dB |
Environment temperature | 25±10°C |
Compressed air | more than 0.3 m3/min |
Air pressure | 0.6-0.9 MPa |
Power supply | AC 380V 60HZ 3 Phase 4KW |
Overall Dimension (L×W×H) | 3800×2150×1800mm |
Weight | 2300KG |
Performance & Feature:
1.The machine has detection, alarm, fault display system which is compose of the sensor, photoelectricity, mechanical overload protection device.
2.The machine is controlled by PLC and human-machine interface.

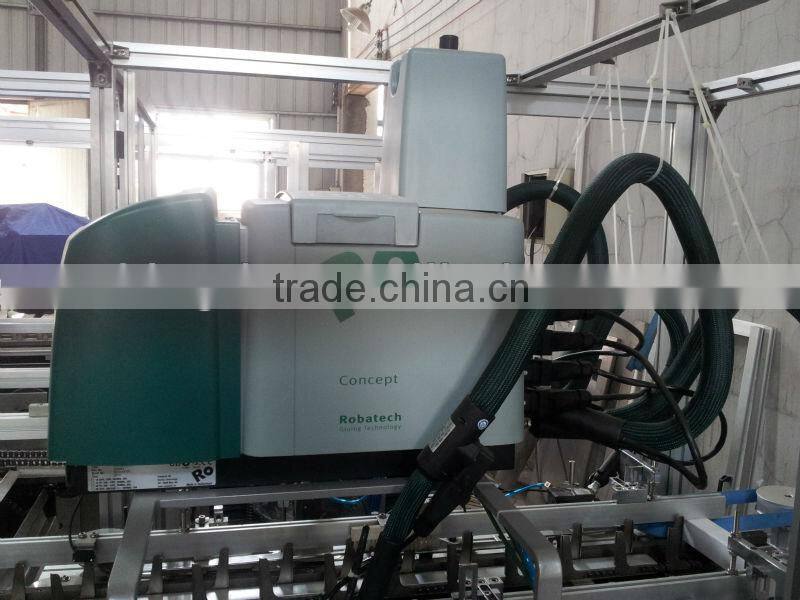

3. Many of electrical appliances are made by international famous brand. For example: Japan OMRON PLC, SMC pneumatic element, Germany BECKER vacuum pump and Switzerland Robatech hot melt applicator.

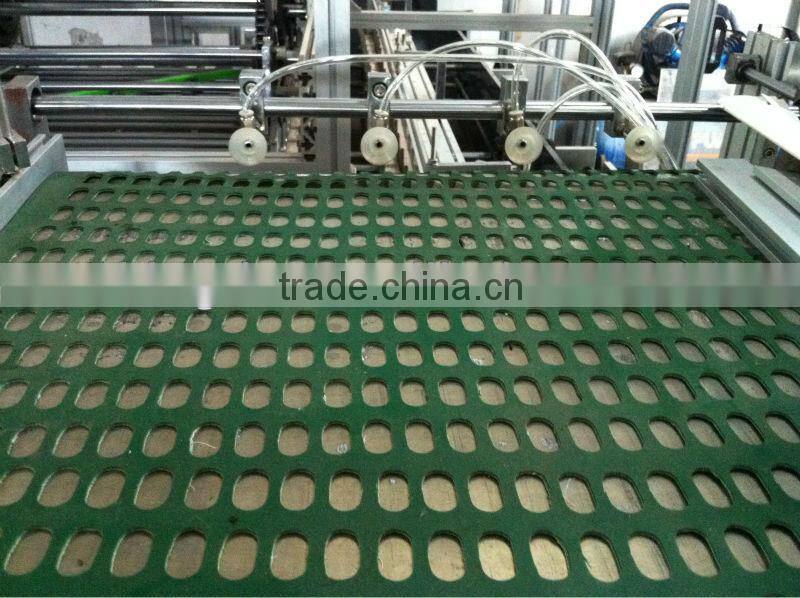

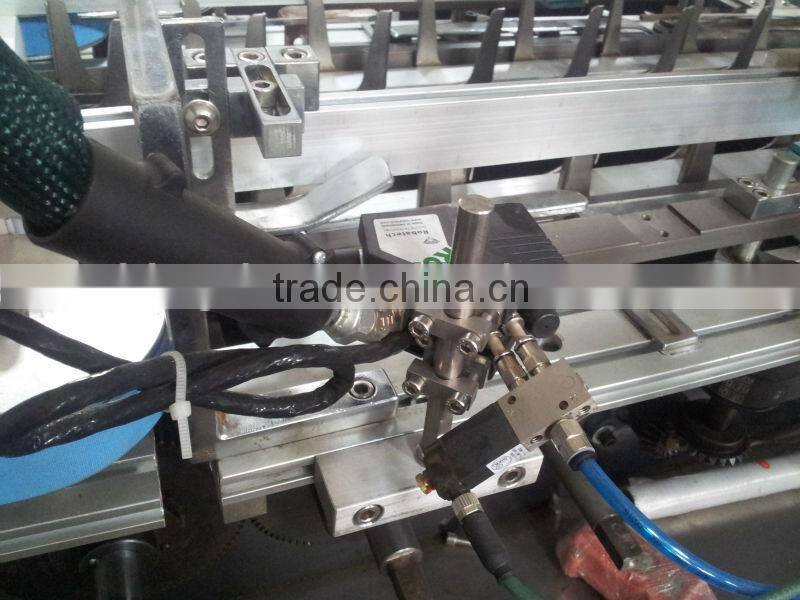

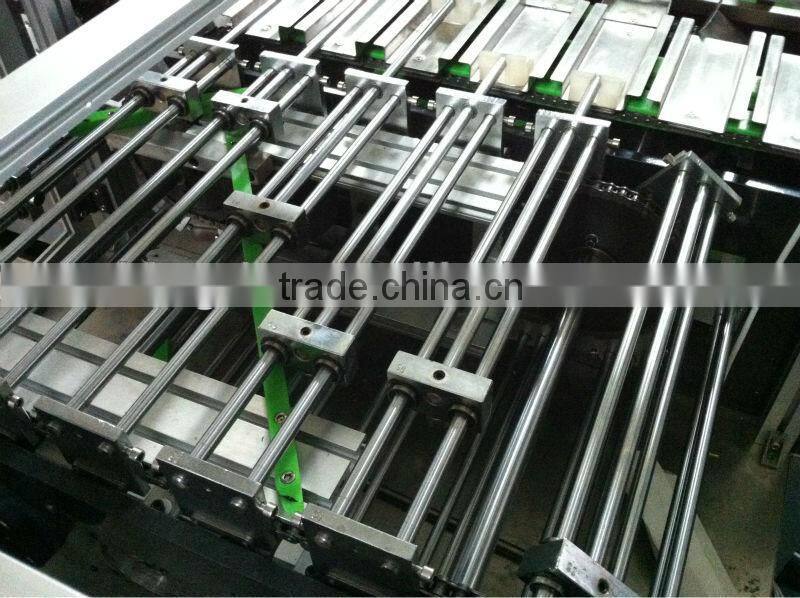

Some Parts of this Machine:
Samples :
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
