Specifications
box machine1.Automatic weighing, filling
2.Overload protection
3.Hot melt sealing
4.Count the finished product

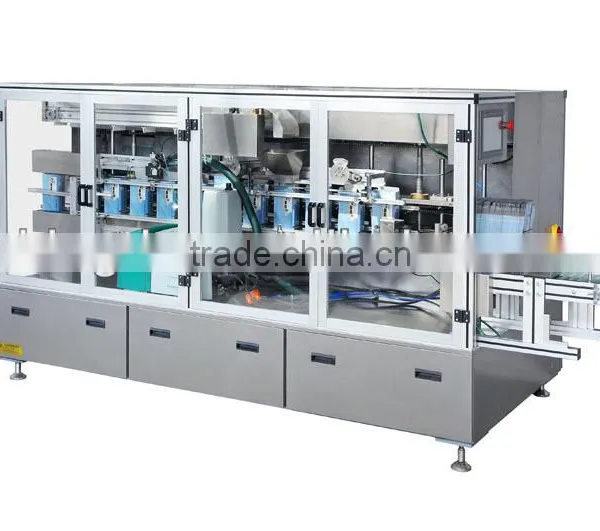

Fully automatic candy box machine
Product Explanation
JDLX-50GZ Fully automatic food boxing machien is special filling & boxing machine which can run intermittently ,The machien can be used in filling and boxing of irregular shape object in the industry of food ,pharmaceutical ,cosmetic ,commodity and so on ,Such as granule tea ,candy and so on.
Main Characteristics
The machine can finish all actions automatically like weighting ,filling,glue-spraying and sealing ,and count the finished products
The machien has the surveillance ,alarm,malfunction display system which compose of the devices of sensing element , photoelectricity ,overload protection .the machine will stop automatically when packed object cannot be detected several times or when is overloaded.
The whole machine is controlled by PLC & HMI ,uses chain to carry the paper box. so the machine can run continuously and stably ,there is backup interface online can adopted according to user's requirement .The machine can be adjust the speed automatically and make it can work with other packing machine together .It can link with pillow type packing machine ,container loader
Main Technical Parameter
Speed | ≤ 50 boxs per minter |
Max box size | 220 X 120 X 50 (L X W X H) |
Min box size | 120 X 40 X 30 (L X W X H) |
Available paper | 300-350( g/sm) |
Air pressure | 0.6-0.8 MPa |
Air consumption | ≥ 0.3m/min (Air compressor) |
Power supply | AC 380V 50HZ |
Max power | 4kw ( Single match power supply ) |
Overall dimension | 3200 X 1400 X 2370 (L X W X H) |
Weight | 2300KG |

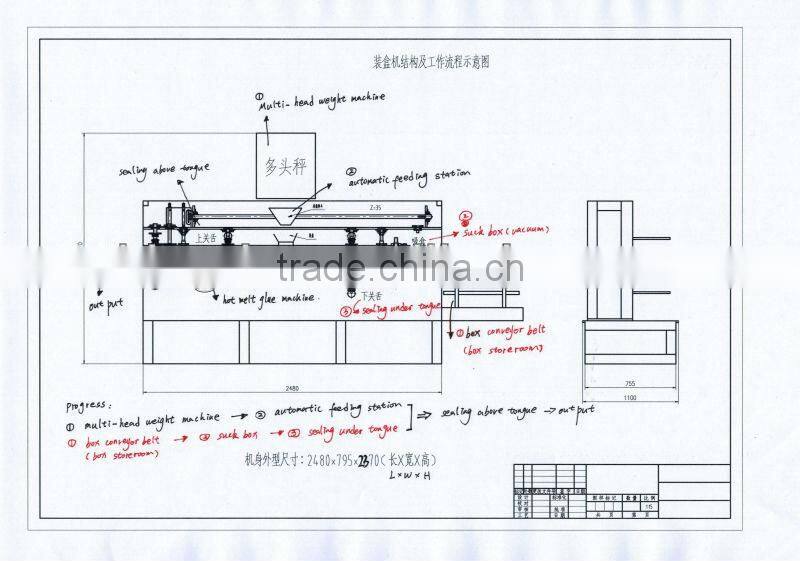

Working principle

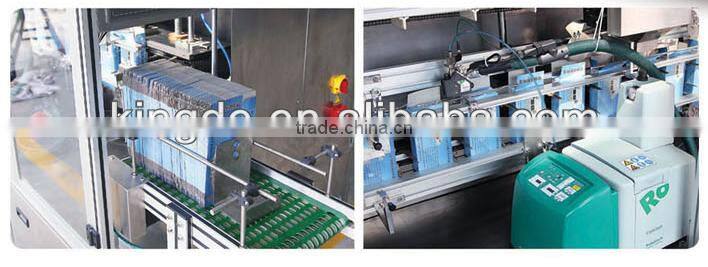

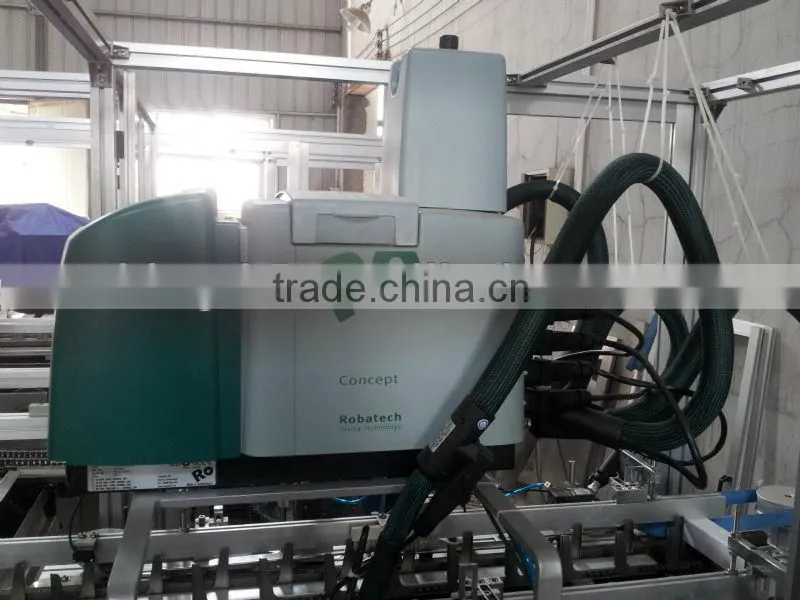

Some Parts of this Machine:

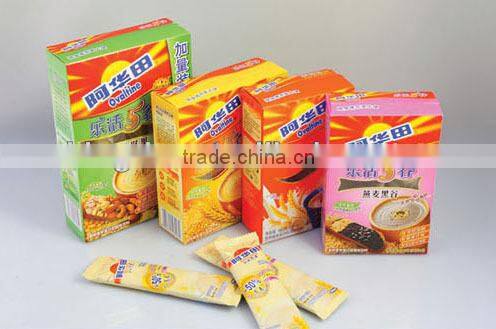

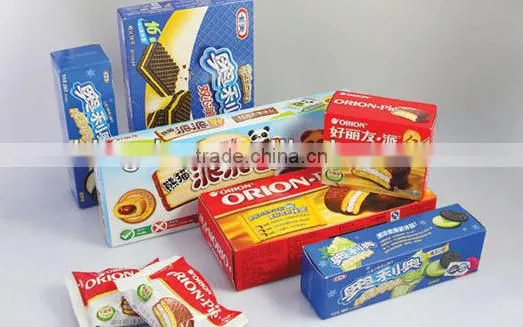

Samples
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
