Specifications
box packaging1.PLC control
2.Easy operation
3.The machine can be single used or linked with other machine

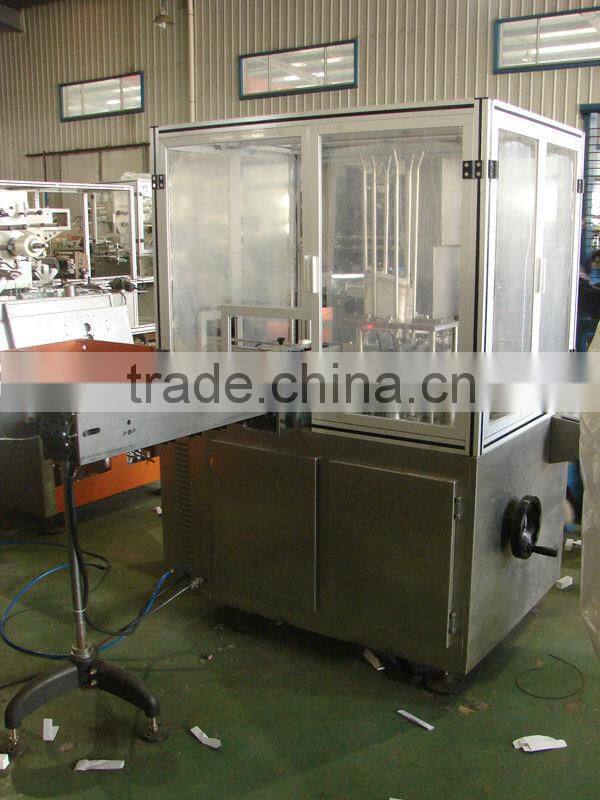

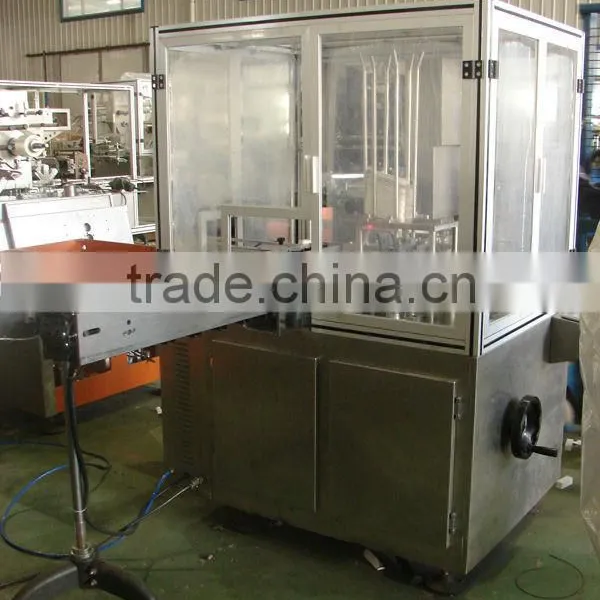

Small multi-function box packaging machine low prices
Main Characteristics
1.Mechanical driving, variable frequency speed regulating, protection of automatic stop when the machine is over loaded;
2. Control with PLC program, automatically check the miss filling of medical plate and instruction book. Automatic waiting when there is no medical plate;
3.Equipped with the device for counting finished productsand intelligent fault display
Main Technical Parameter
Running speed |
50~90(boxs/min) |
Size Range of |
≥70X35X12mm |
≤125X100X50mm | |
special machine≤160X100X60mm | |
Size of unfolded leaflet |
(80~180)X(100~190)mm |
Quality of Operation Manual |
55~70g/m2 |
Main Motor Power |
0.75kw |
Power |
three phase four wire system 380V 50Hz |
Air-compress |
0.6~0.7MPa |
Air-consumption |
0.12~0.16 m3/min |
Overall Dimension |
3400X1580X1700mm |
Net Weight |
1000Kg |
Gross Weight |
1300Kg |
Our machine ,It’s the different device of feeding for the production, it can connect with blister packaging machine

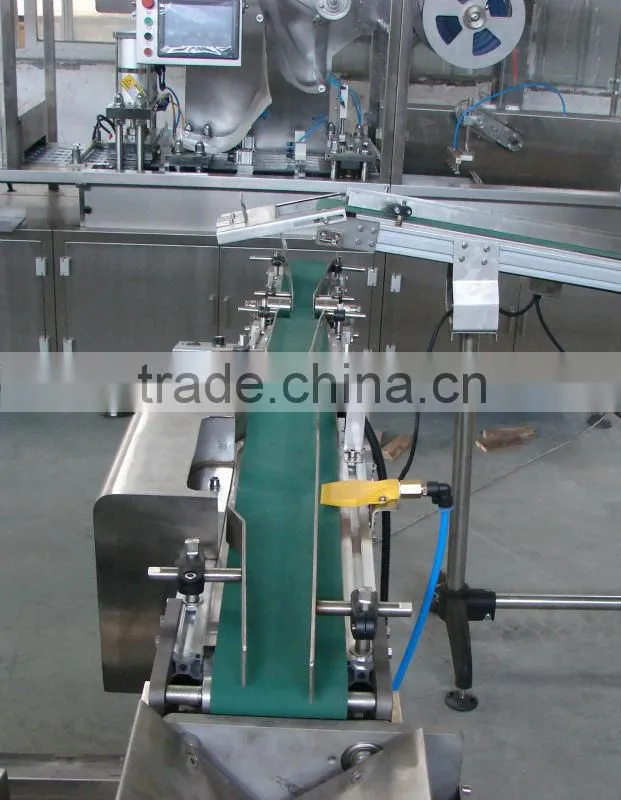

Different feeding station ( It can according to your requirement ,special design )

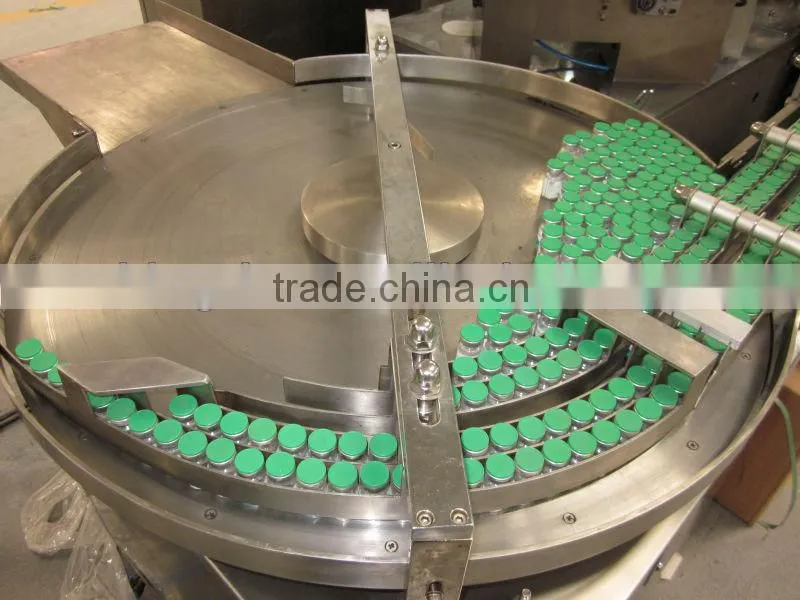

1. It’s the bottle feeding and convey tray;
2. It’s the capsule/tablet blister feeding device
3. Tube feeding device

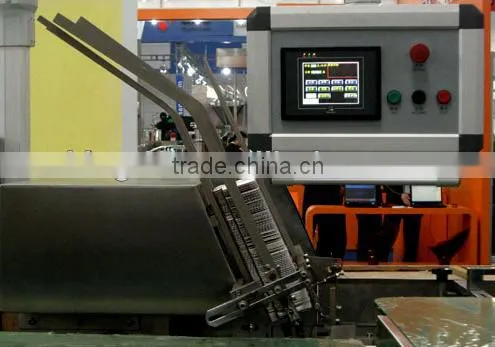

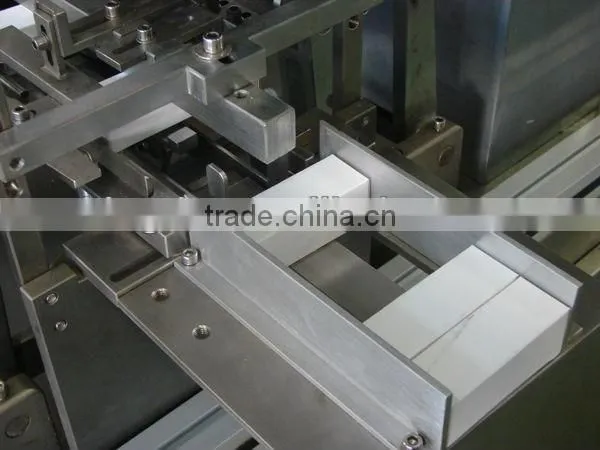

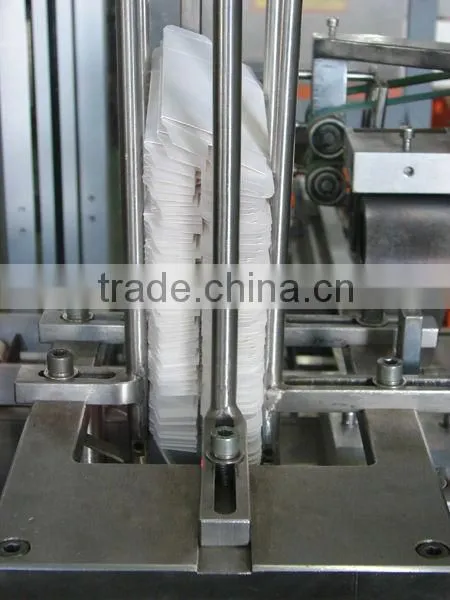

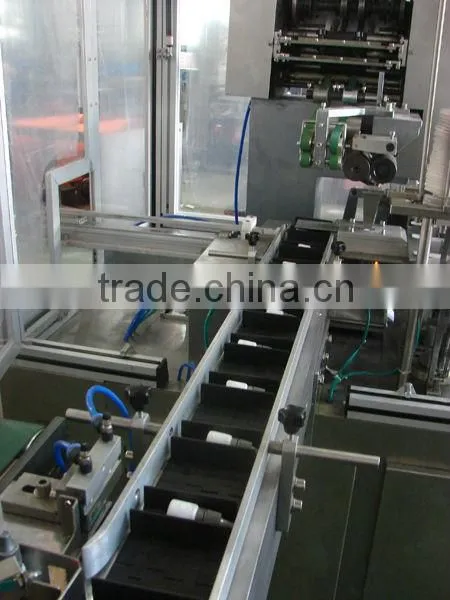

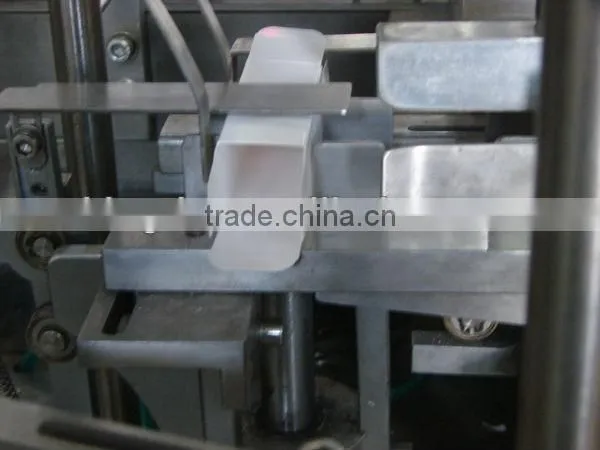

Some Parts of this Machine:

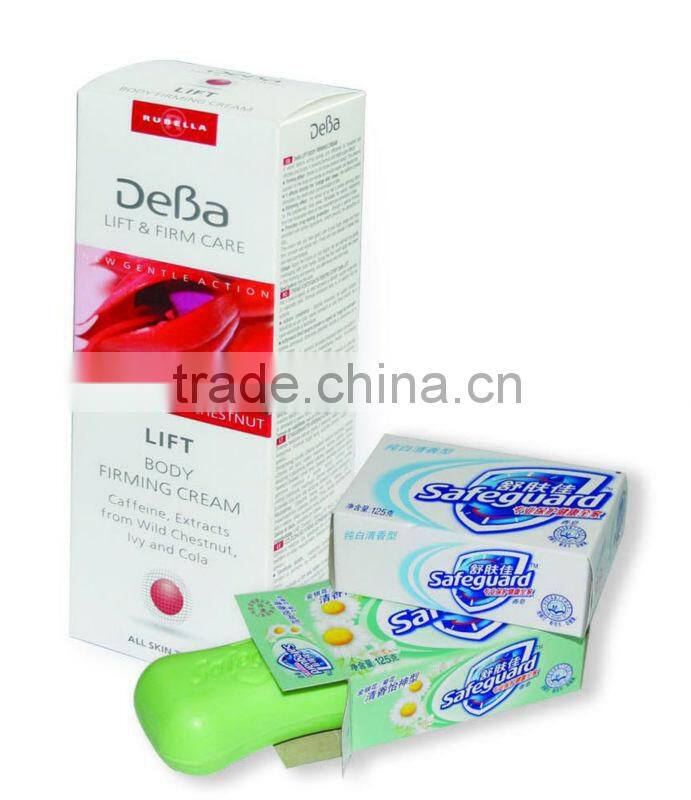

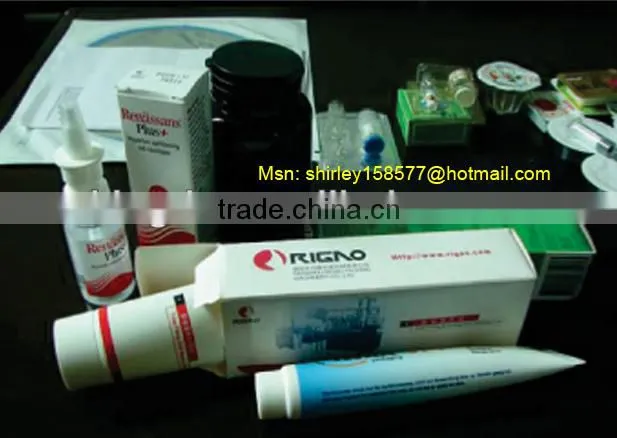

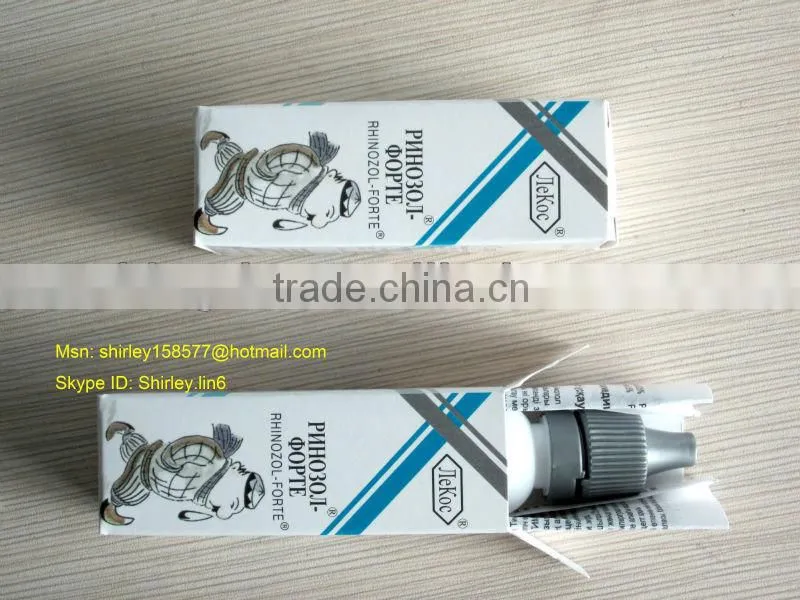

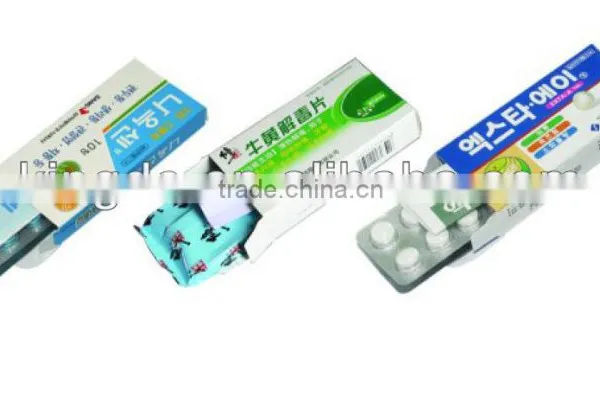

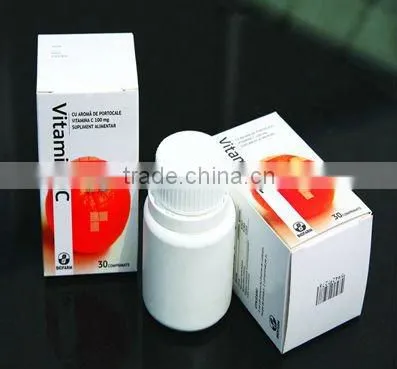

Samples :
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
