SJ-A10060-2811 ws2812b rigid bar

Specifications

SJ-A10060-2811 ws2812b rigid bar

DETAILS:

1.60LEDs/M, 60IC/M, addressable ws2812b(ws2811 ic built inside) led rigid bar.

2.3 chips SMD5050 RGB adapt as light source

3.IP65, IP66, IP67, IP68 Waterproof

4. WS2811 IC, 60pixels per meter (1IC control 1LEDs, ws2811 ic built inside of the the smd5050 rgb led).

5.Aluminum case waterproof

6.Compact size, It has a super slim shape with width only 20mm

7.Aboundant color modes, up to thousands of color change modes can be put in the programs

8.Work with LED control system could get Jumping, fading, flashing, dimming mode

9.Users can cut every 1 LEDs, Continuous light connection, It can run 5 meters continuously

10.60pixels ws28111c black pcb aluminum housing led light bar ws2812b

Datasheet:

Wire connection:
1) Signal wire: DC+,GND,DAT,CLK
2) DC+ and GND connect to power supplier;DAT and CLK connect to controller
3) Relative Controller: SPI controller support ws2811; when use DMX decorder, can connect to DMX system
4) Support online control

5) Make sure the connection is correct according to the diagram
6) Pay attention to the parameters limit of voltage. DO NOT run over the peak value.

7) 60pixels ws28111c black pcb aluminum housing led light bar ws2812b


Control:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as led display screen to show image and video

Picture details:

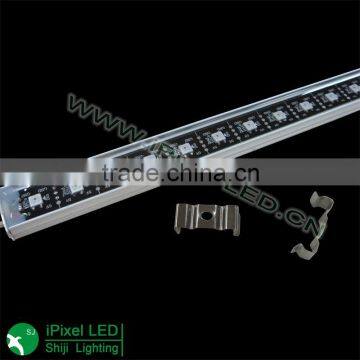

aluminum case waterproof IP65, IP66,IP67, 60leds/m individual control

Install and mounting: 2 male and female waterproof connector on each end side,

use a T-connector to connect bars, and the metal holder for mounting onto the wall.

Control and effect:  DMX controller & decoder & SD controller & arduino controller,

Each led change color individually and pixel addressable full color.

T-1000S.

Application: Architectural decorative lighting, canopy and bridge edge lighting.
